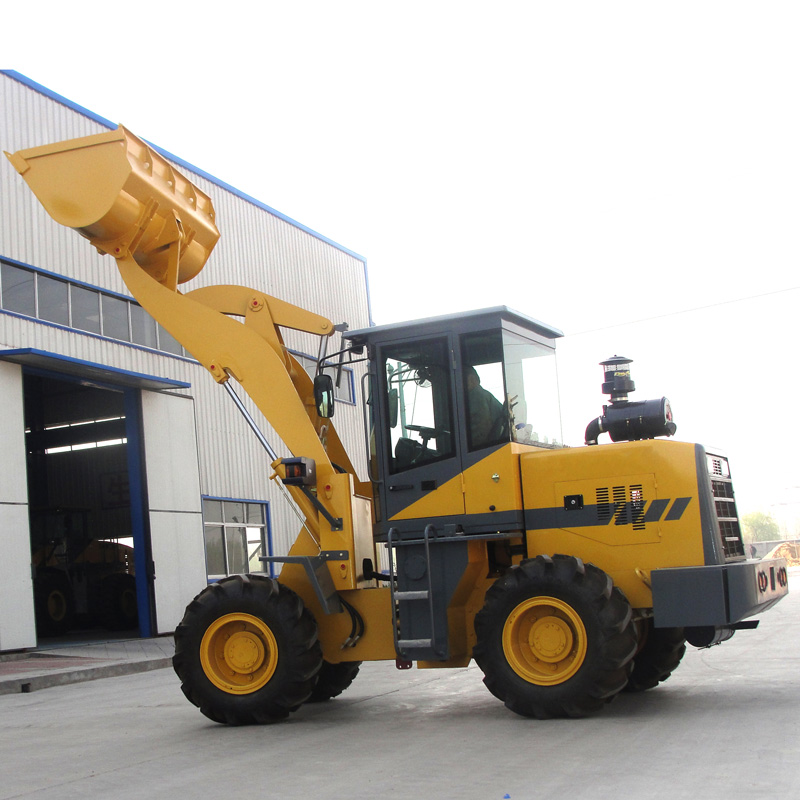

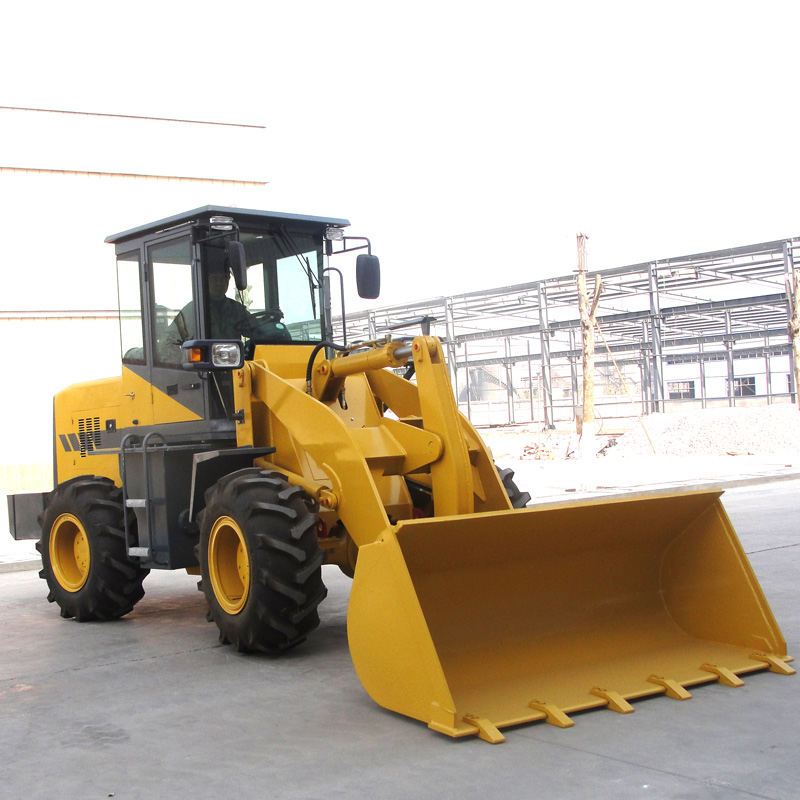

75kw Cummins Engine Wheel Loader .jpg
High Load Efficiency: 2000 kg load capacity with 1 m³ bucket for fast, efficient material handling.
Powerful Engine: Cummins 75 kW engine ensures strong, reliable performance.
Robust Digging & Dumping: 55 kN breakout force, 2800 mm dump height, and 45° discharge angle for smooth operation.
Easy Maneuverability: 35° steering angle and 5885 mm turning radius for confined job sites.
Adaptable to Rough Terrain: 30° gradeability, 300 mm ground clearance, and heavy-duty tires.
Safe & Responsive Control: 17 MPa hydraulic pressure and advanced braking system for secure, precise handling.

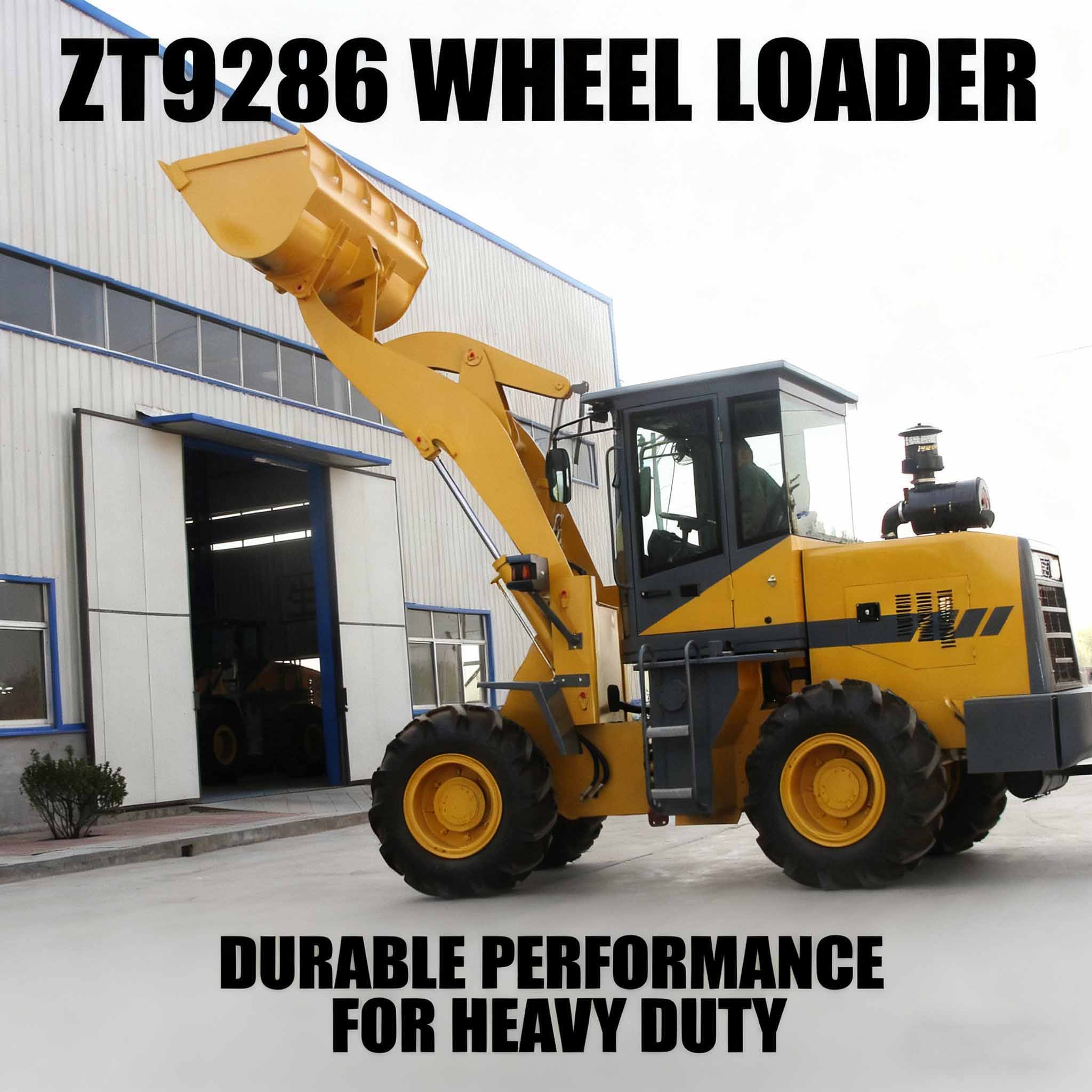

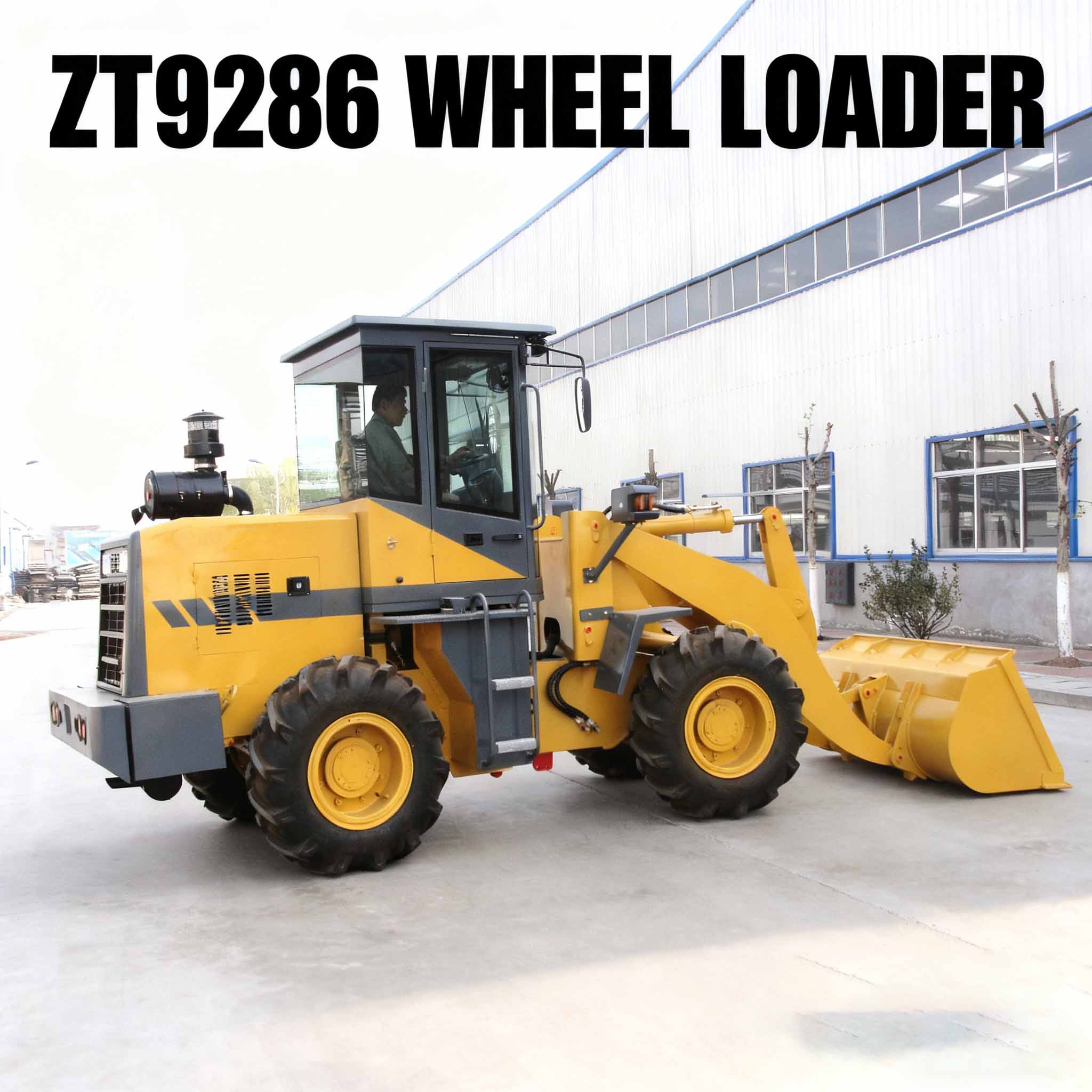

【ZT9286 Loader: The Urban Ninja】
Who says construction machines can't be nimble? The ZT9286 is the "agile giant" of tight urban spaces！This "steel-booted ninja" zips through crowded job sites with an 8.2m compact body and 20% tighter turning radius than competitors.
Core Advantages:
• Compact Size: Sleek 8.2m body for navigating tight streets
• Agile Turning: 20% tighter turning radius for effortless U-turns
• Precision Handling: 3m³ bucket handles sand/gravel with surgical accuracy
• Flexible Options: Choose 2.5m³ light or heavy-duty rock buckets
Green Technology:
• Low Emissions: Tier 4 Final standard, 90% less dust
• Quiet Operation: Noise under 75dB, quieter than a hairdryer
• Maintenance-Free: Auto-lubrication + lifetime brakes
Comfort & Safety:
• Luxury Cabin: Panoramic windows, heated seats (optional), 5-inch touchscreen
• Advanced Safety: Rear cameras, blind-spot alerts, anti-roll system
This "urban ninja" delivers power in tight spaces！
Contact: WeChat/WhatsApp +86 13953879973
Product Specifications
Description | Specification |
rated load(kg) | 2000 |
Rated bucket capacity（m³） | 1 |
Equipment weight（kg) | 5800 |
Max.breakout force（kN） | 55 |
Max.dump height（MM） | 2800 |
Max.dump reach（MM） | 1035 |
Discharging Angle（°） | 45 |
Max.grade ability | 30 |
steering angle（°） | 35 |
Min turning radius（MM） | 5885 |
Wheel base(MM） | 2350 |
Tread（MM） | 1500 |
Min.ground clearance（MM） | 300 |
Overall dimensions (l×w×h)mm | 5300×2000×2860 |
travel speed（km/h） | |
Forward gear I | 0～6 |
II | 0～24 |
reverse gear I | 0～6 |
II | 0～24 |
Engine Model | Cummins 4BT3.9-C100 |
Type | In line, water cooled, four stroke, dir.inject |
Rated power（kW） | 75 |
Rated speed（rpm） | 2400 |
Tire model | 16/70-20 |
The system pressure（MPa） | 17 |
The braking system | Gas-liquid caliper disc brake |
The voltage(V) | 24 |
Product Details
Key Features
ZT9286 is a loader for loading and unloading loose materials, with high reliability and multiple purposes, and is widely used in farms, small mine plant, timber plant and towns construction and etc.
1. It is equipped with the CUMMINS engine meeting the requirements of China II emission standard, with strong power and high reliability
2. It adopts front and rear reinforced frames that have passed 200,000 times of fatigue enhancement tests, with strong bearing
capacity, reasonable entire-machine load distribution and good stability.
3. New steel structure cab is adopted, which has wide vision, larger operation space, good sealing performance and comfortable driving environment.
Packing & Delivery
1.Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.
2. Spare parts or wearing parts will be packed in wooden box or paper carton.
3. Standard shipping method is by container.
