1 Cubic Meter Bucket Loader
High Load Efficiency: 2000 kg load capacity with 1 m³ bucket for fast, efficient material handling.
Powerful Engine: Cummins 75 kW engine ensures strong, reliable performance.
Robust Digging & Dumping: 55 kN breakout force, 2800 mm dump height, and 45° discharge angle for smooth operation.
Easy Maneuverability: 35° steering angle and 5885 mm turning radius for confined job sites.
Adaptable to Rough Terrain: 30° gradeability, 300 mm ground clearance, and heavy-duty tires.
Safe & Responsive Control: 17 MPa hydraulic pressure and advanced braking system for secure, precise handling.

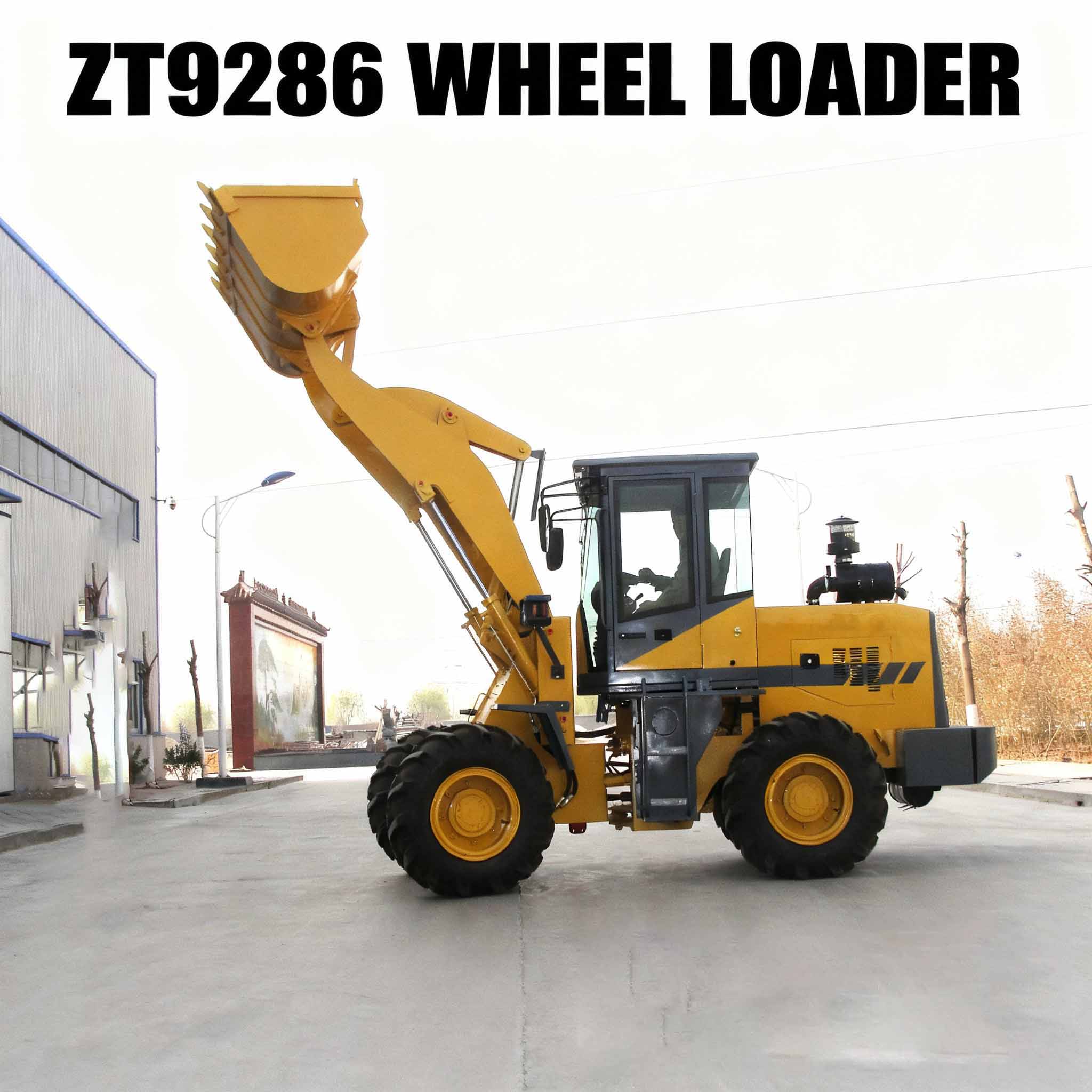

ZT9286 Loader: The Ultimate Medium-Scale Workhorse
Tired of inefficient job sites? The ZT9286 loader is your ultimate "all-in-one partner"！This medium-duty "iron beast" handles sand/gravel transport and site prep like a Swiss Army knife. As a flagship product from Shandong Tai'an, a world-renowned hub for Chinese construction machinery export, this backhoe loader manufacturer delivers a heavy-duty solution built for durability, efficiency, and cost-effectiveness. With 20 years of export experience from our Shandong factory, we combine advanced manufacturing technology, strict quality control, and factory price advantages to provide global customers with reliable heavy equipment components and complete machinery that outperforms competitors in urban construction, quarry operations, and material handling scenarios.
Every ZT9286 loader is precision-engineered in our Shandong Tai'an production base, leveraging decades of expertise in heavy equipment design and manufacturing. Our 20-year export experience allows us to understand the diverse needs of international markets, ensuring this medium-scale loader meets global safety standards, emission regulations, and operational requirements. Unlike generic construction equipment, our factory-direct model eliminates middleman costs, offering you unbeatable factory price without compromising on performance or build quality—making it the top choice for contractors, rental companies, and construction enterprises seeking high-value Chinese construction machinery export solutions.
Core Strengths
Powerhouse Engine: Big displacement engine delivers muscle & fuel efficiency
Mega Bucket: 2.5-4m³ capacity (customizable) moves half a truckload per scoop
Hydraulic Pro: Smooth controls like driving an automatic car
Built to Last
Steel Frame: Reinforced chassis & axles conquer rough roads
4WD Mastery: Stable on muddy slopes, zero rollover risk
Off-Road Ready: 24cm ground clearance cruises over potholes
The exceptional durability of the ZT9286 loader stems from our Shandong factory's rigorous manufacturing process and 20 years of refinement in heavy equipment production. As a leading backhoe loader manufacturer in China, we use premium-grade steel and heavy-duty components to construct every loader, ensuring it withstands the harshest working conditions in construction sites, mines, and agricultural operations. Our focus on heavy equipment components quality means this loader delivers consistent performance year after year, reducing downtime and maintenance costs for global users. When you choose our Chinese construction machinery export product, you invest in equipment built to last, not just for a project, but for long-term business success.
Operator's Dream
Cabin Comfort: Adjustable seat + AC (optional), panoramic view
Intuitive Controls: Smartphone-like layout reduces fatigue
Safety First: Rear camera (optional) + emergency stop
Operator comfort and safety are at the heart of the ZT9286 loader's design, a key priority for our Shandong Tai'an engineering team. With 20 years of export experience, we understand that a comfortable operator is a productive operator, which is why we've crafted a cabin that prioritizes ergonomics, visibility, and safety. This focus on user experience sets our factory price loader apart from other Chinese construction machinery export options, as we balance performance with operator well-being. The intuitive control system and safety features not only protect your workforce but also boost operational efficiency, making this backhoe loader manufacturer's product a smart investment for any business focused on productivity and workplace safety.
Low-Maintenance
Easy Service: Quick access parts, 5-minute checks
Durable Build: Key components last 5+ years
This "ultimate workhorse" dominates urban sites, quarries & yards！As a trusted name in Chinese construction machinery export, our Shandong factory ensures that every ZT9286 loader is designed for easy maintenance and maximum uptime. The quick-access component design and durable heavy equipment components minimize service time and costs, while our global supply chain ensures spare parts are readily available wherever your operation is located. Our 20-year export experience means we provide comprehensive after-sales support alongside our factory price equipment, making us more than just a backhoe loader manufacturer—we're your long-term partner in construction equipment success.
Contact: WeChat/WhatsApp +86 13953879973
Product Specifications
| Description | Specification |
|---|---|
| rated load(kg) | 2000 |
| Rated bucket capacity（m³） | 1 |
| Equipment weight（kg) | 5800 |
| Max.breakout force（kN） | 55 |
| Max.dump height（MM） | 2800 |
| Max.dump reach（MM） | 1035 |
| Discharging Angle（°） | 45 |
| Max.grade ability | 30 |
| steering angle（°） | 35 |
| Min turning radius（MM） | 5885 |
| Wheel base(MM） | 2350 |
| Tread（MM） | 1500 |
| Min.ground clearance（MM） | 300 |
| Overall dimensions (l×w×h)mm | 5300×2000×2860 |
| travel speed（km/h） | |
| Forward gear I0～6 | |
| II | 0～24 |
| reverse gear I | 0～6 |
| II | 0～24 |
| Engine Model | Cummins 4BT3.9-C100 |
| Type | In line, water cooled, four stroke, dir.inject |
| Rated power（kW） | 75 |
| Rated speed（rpm） | 2400 |
| Tire model | 16/70-20 |
| The system pressure（MPa） | 17 |
| The braking system | Gas-liquid caliper disc brake |
| The voltage(V) | 24 |
Product Details
Key Features
ZT9286 is a loader for loading and unloading loose materials, with high reliability and multiple purposes, and is widely used in farms, small mine plant, timber plant and towns construction and etc. As a premium offering from our Shandong Tai'an factory, this versatile loader represents the pinnacle of Chinese construction machinery export technology, combining robust performance with exceptional versatility. Our 20 years of export experience have allowed us to refine every aspect of this machine, making it suitable for a wide range of applications across global markets. Whether you're in agriculture, mining, or urban construction, this backhoe loader manufacturer's product delivers the power and reliability you need at a competitive factory price, supported by high-quality heavy equipment components that ensure long-term performance.
1. It is equipped with the CUMMINS engine meeting the requirements of China II emission standard, with strong power and high reliability. This premium engine choice, combined with our factory's precise assembly, ensures optimal fuel efficiency and reduced emissions—critical features for international buyers seeking eco-friendly Chinese construction machinery export solutions.
2. It adopts front and rear reinforced frames that have passed 200,000 times of fatigue enhancement tests, with strong bearing capacity, reasonable entire-machine load distribution and good stability. This engineering excellence is a hallmark of our Shandong factory, where we prioritize structural integrity and durability in every heavy equipment components we manufacture.
3. New steel structure cab is adopted, which has wide vision, larger operation space, good sealing performance and comfortable driving environment. The ergonomic cabin design reflects our understanding of operator needs, developed over 20 years of serving global customers as a leading backhoe loader manufacturer.

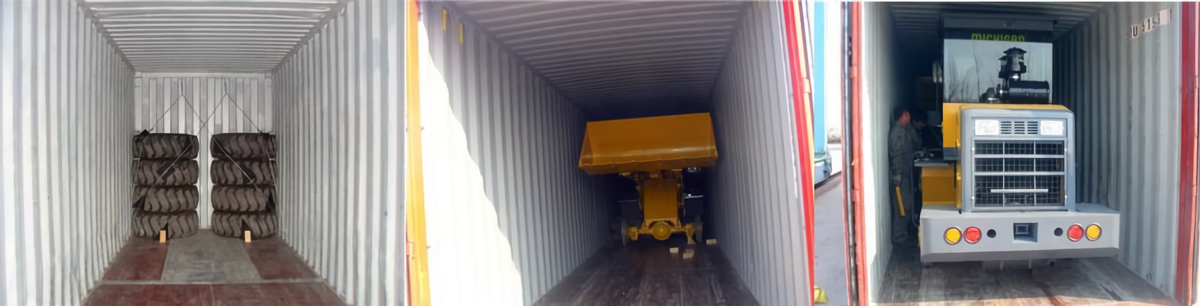

Packing & Delivery
1.Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.
2. Spare parts or wearing parts will be packed in wooden box or paper carton.
3. Standard shipping method is by container.
Client Visit
Our Service
1. OEM orders welcomed: Customize with your brand, choose your color palette, and more.
2. Ready availability of spare parts, always in stock.
3. Comprehensive services including factory visits and third-party inspections.
4. Prompt responses: We ensure to reply to your inquiries within 24 hours.
5. Act as your purchasing agent for related machinery, simplifying your buying process.
