Loader With 1150mm Dump Reach For Efficient And Safe Unloading Operations
High Load Efficiency: 3000 kg capacity with a 1.7 m³ bucket for faster material handling.
Powerful & Fast: 92 kW Cummins engine, 480 N·m torque, with rapid lift and cycle times.
Strong Digging Capability: 110 kN breakout force, 3150 mm dump height, and 45° discharge angle.
Excellent Maneuverability: 35° steering angle and 4800 mm turning radius for tight spaces.
All-Terrain Ready: 30° gradeability and 417 mm ground clearance for rough conditions.
Smart & Safe Operation: Auto bucket leveling, advanced braking, and manual parking brake.
🔧 Zhengtai ZT935: Maintenance Made Easy!
Designed for smart owners! Service points within reach, early fault warnings, modular parts—say goodbye to repair nightmares!
✨ Maintenance Without the Struggle:
Centralized lube points → grease entire machine quickly
Easy-access filters & fluids → no crawling underneath
Smart monitoring → catches issues before they become problems
Remote diagnostics → experts can help from anywhere
🌍 Global Support, Always Ready:
Genuine parts + professional tech support—we keep your machine running like new, anywhere in the world!
#ZhengtaiLoader #ZT935 #EasyMaintenance #SmartRepair #WorldwideSupport

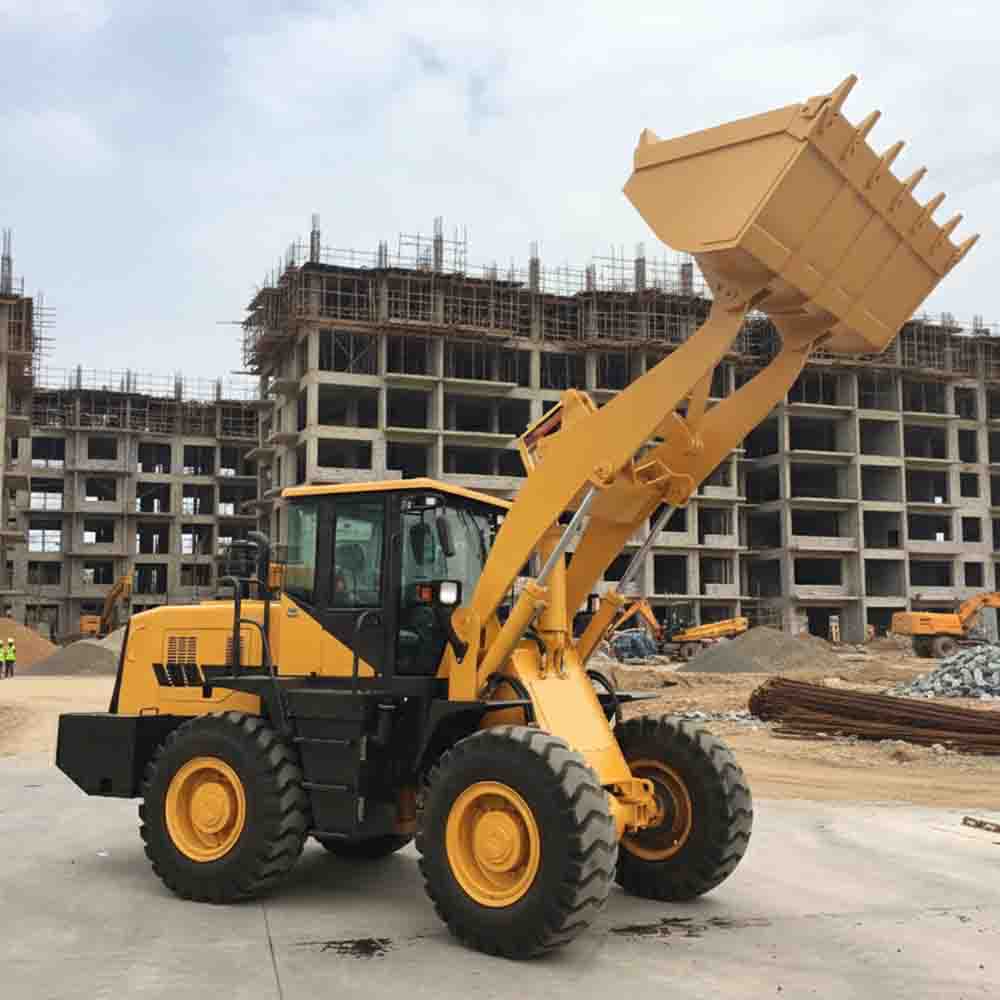

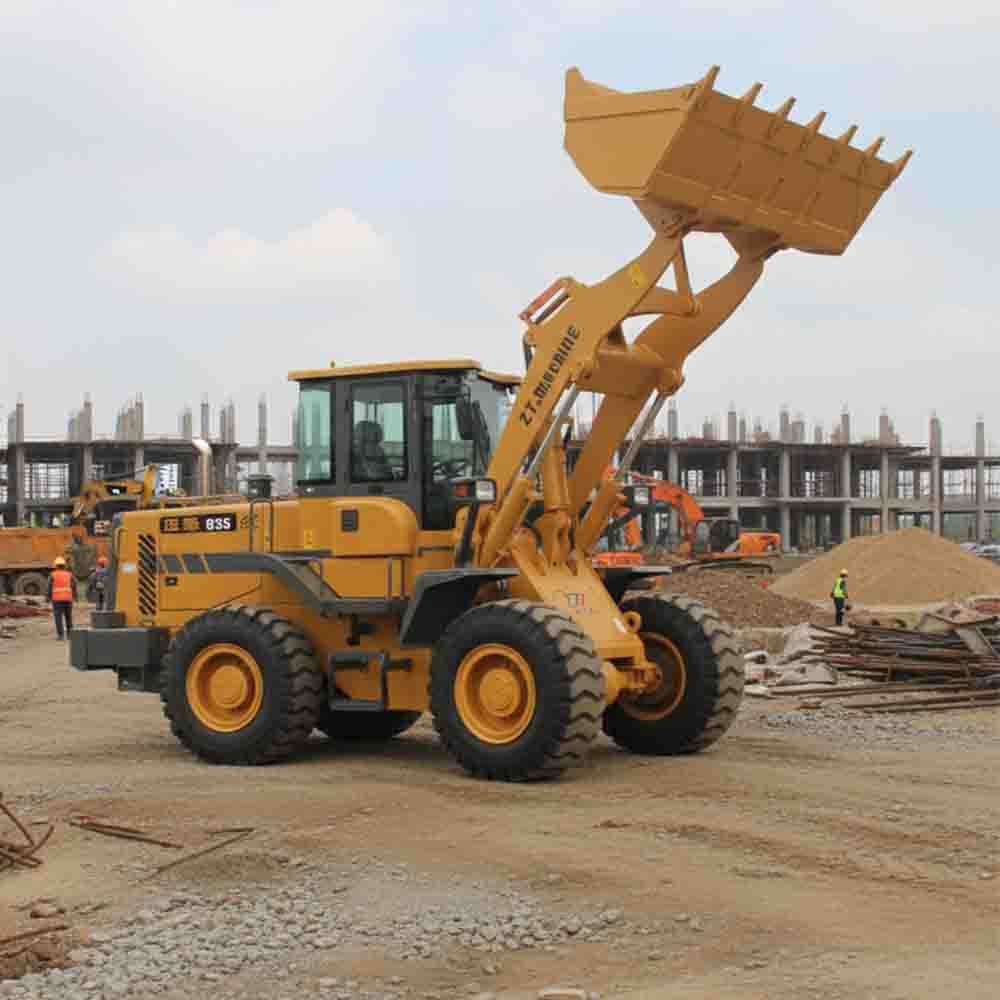

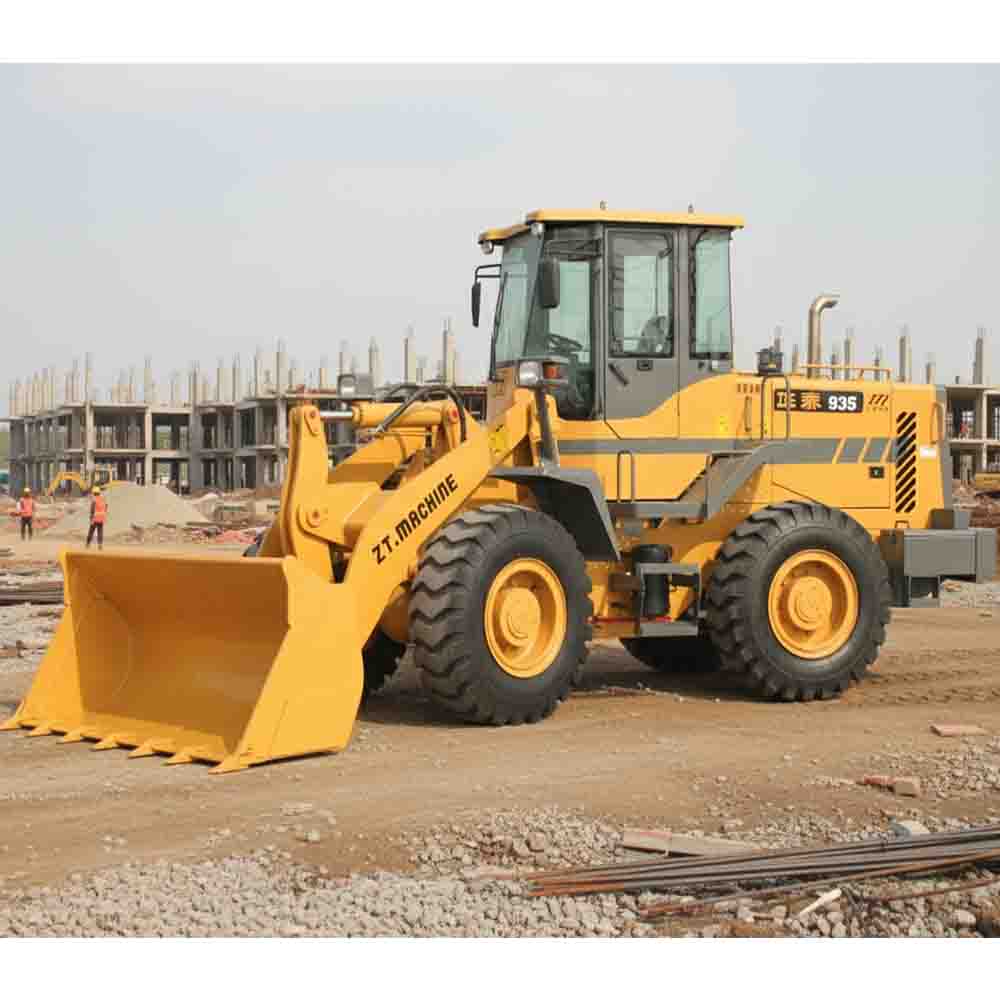

These images showcase the robust design and build quality of our ZT935 wheel loader.
Product Specifications
Description | Specification |
Rated load(kg) | 3000 |
standard bucket capacity（m³） | 1.7 |
Equipment weight（kg) | 9600 |
Max.breakout force（kN） | 110 |
Max.dump height（MM） | 3150 |
Max.dump reach（MM） | 1150 |
Discharging Angle（°） | 45 |
Max.grade ability（°） | 30 |
Lifting time（s) | ≤5.6 |
Total cycle time(lifting, dumping, lowering)（s) | ≤10 |
steering angle（°） | 35 |
Min turning radius（MM） | 4800 |
Wheel base（MM） | 2580 |
Tread（MM） | 1870 |
Min.ground clearance（MM） | 417 |
Overall dimensions (l×w×h)mm（MM） | 7550*2385*3145 |
travel speed（km/h） | |
Forward gear I | 0～6.8 |
II | 0～12 |
III | 0～23 |
IV | 0～35 |
reverse gear I | 0～8.5 |
II | 0～27 |
Engine Model | Cummins 6BT5.9-C125-II |
Type | In line, water cooled, four stroke, dir.inject |
Rated power（kW） | 92 |
Product Details
Company Information
Taian Zhengtai Construction Machinery Co., Ltd. is located in Industrial Park, Shiheng town, Feicheng City, Shandong province, China[cite: 64]. We are a professional manufacturer of construction equipment, committed to delivering high-quality and reliable machinery to our global customers. We welcome inquiries and are available to discuss your specific needs.
Contact Us:
Phone/WeChat: +86 13953879973
Email: woniuniu9527@163.com
Shipping & Packaging: We fit one unit into a 40GP container. The machine body is secured within the container using wire ropes, while spare and wear parts arrive in wooden boxes or cartons.
