Budget Friendly Mini Loader For Sale
Powerful & Versatile Underground Loader - Built for Demanding Mining Operations
1. Superior Loading Capacity
✔ 3,000kg Rated Load - Handles heavy materials with ease, maximizing productivity
✔ 1.7m³ Large Bucket Capacity - Moves more material per cycle, reducing operational time
2. Unmatched Maneuverability
✔ 40° Steering Angle + 5,555mm Turning Radius - Exceptional agility in tight underground spaces
✔ Compact Dimensions (6.7m x 2.25m) - Fits comfortably in narrow tunnels and confined work areas
3. Heavy-Duty Construction
✔ 9,600kg Robust Frame - Withstands harsh mining conditions and heavy impacts
✔ 380mm High Ground Clearance - Navigates rough terrain and obstacles effortlessly
4. Powerful Performance
✔ 92kW High-Torque Engine - Delivers reliable power for continuous operation
✔ 2-Speed Transmission (0-35km/h) - Optimized for both precision work and efficient transport
5. Operator-Focused Design
✔ 2,850mm Max Dump Height - Perfectly matches standard mining trucks for easy loading
✔ 960mm Extended Dump Reach - Provides greater flexibility in material placement
6. Low-Cost Operation
✔ Fuel-Efficient Engine - Reduces running costs without sacrificing power
✔ Easy Maintenance Access - Minimizes downtime and service expenses
Product Description
Introducing the High Capacity 2730mm Unloading Height Mining Wheel Loader for Mineral Extraction - the ZT935KS. This 4WD loader boasts a 3000kg load capacity and a 1.9cbm bucket, making it ideal for heavy-duty mining operations. With its articulated steering and impressive breakout force of 120KN, this loader can easily navigate challenging terrains and handle large loads with ease. The ZT935KS also features a maximum grade of 25%, ensuring efficient performance on steep slopes. Whether you need to transport minerals, excavate materials, or clear debris, this mining wheel loader is up to the task. With a tipping load of 6000kg and a maximum traction force of 70KN, the ZT935KS offers reliable power and versatility for various mining applications. Upgrade your mining operations with the ZT935KS Mining Wheel Loader.
Product Parameters
Rated load capacity (kg) | 3000 | Bucket width (mm) | 2440 |
Bucket capacity (m3) | 1.9 | Wheelbase (mm) | 1800 |
Unloading height (mm) | 2730 | Wheelbase (mm) | 2615 |
Unloading distance (mm) | 930 | Work quality (kg) | 9700 |
Tipping load (kg) | 6000 | Minimum ground clearance (mm) | 380 |
Running speed: (km/h) | go ahead | 10 in first gear; 35 in second gear | |
Back | 6 in first gear; 10 in second gear | ||
Maximum traction force (KN) | 70 | Breakout force (KN) | 120 |
Maximum grade(%) | 25 | steering method | Articulated steering |
Passing capacity outer radius (mm) | 5550 | Passing capacity inner radius (mm) | 3750 |
Maximum steering angle of vehicle body (°) | 40 | ||
Overall dimensions (mm) | long | 5880 | |
Width | 2440 | ||
high | 2550 | ||
Drive mode | four-wheel drive | Working device action time (s) | ≤12 |
Start mode | electric start | Diesel engine location | Rear |
Diesel engine model | Luotuo 6108 | Diesel engine power | 92Kw |
Braking form: | Braking method | wet brake | |
Hand brake | Central wet brake | ||
Dumping method | Unloading | ||
Front and rear drive axle | Shandong Yunyu | ||
tire | 17.5-25 | ||
Packaging & Shipping
1.Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.
2. spare parts or wearing parts will be packed in wooden box or paper carton.
3. Standard shipping method is by container.

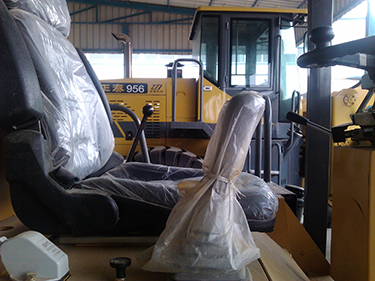

Detailed Photos
