Heavy-Duty Cold Resistant Backhoe Loader for Extreme Weather Conditions
Strong Power: 75kW Cummins engine, >25KN lifting, 50KN digging, 70–75KN traction.
Versatile Use: Dual buckets, 4340mm digging depth, 5481mm radius for multi-tasking.
Easy Maneuvering: 4300mm turning radius, 500mm ground clearance, compact design.
Durable Build: 7840kg weight, 180° bucket rotation, robust components.
Long Operation: 155L hydraulic + 100L diesel tanks for extended work time.
Efficient & Comfortable: 15.7km/h speed, 43.5° dump angle, 12V system.
Product Details
Basic Info.
Model NO.
ZTW30-25
Rated Load
1-3t
Transmission
Hydraulic - Mechanical
Load and Unload Mode
Front Loading and Back Excavation
Walking Mode
Wheeled
Type
Model
Ztw30-25
Engine
Cummins 75kw/ Xinchai 60kw
Operating Weight
7660kg
Backhoe Bucket Capacity
0.3cbm
Rated Loading Bucket Capacity
1cbm
Max Dump Heigh
2612mm
Dump Reach at Max Dump Heigh
727mm
Max.Digging Radius
5150mm
Max.Dump Height
3738mm
Radius at The Max.Dump Height
1084mm
Max.Digging Radius at Ground Level
5105mm
Digging Buckets Max.Rotating Angle
180
Max.Digging Depth
4340mm
Max.Digging Force
>50kn
Min.Turning Radius
3795mm
Transport Package
Nude
Specification
7077*2350*3420mm
Trademark
ZTMACHINE
Origin
China
HS Code
842959000
Production Capacity
30
Product Description
Product Parameters
30 Days Fast DeliveryCustom Paint & Logo Accepted
Technical Specifications
| Item | Unit | Parameter |
|---|---|---|
| General Specifications | ||
| Backhoe Bucket Capacity | m³ | 0.3 |
| Rated Loading Bucket Capacity | m³ | 1 |
| Rated Lifting Force | KN | >25 |
| Equipment Weight | kg | 7840 |
| Backhoe Parameters | ||
| Max. Digging Radius | mm | 5481 |
| Max. Dump Height | mm | 3737 |
| Radius at Max. Dump Height | mm | 1084 |
| Max. Digging Radius at Ground Level | mm | 5105 |
| Digging Bucket Max. Rotating Angle | ° | 180 |
| Max. Digging Depth | mm | 4340 |
| Max. Digging Force | KN | 50±10% |
| Loading Parameters | ||
| Max. Dump Height | mm | 2626 |
| Dump Reach at Max. Dump Height | mm | 726 |
| Bucket Drawback Angle (Transportation Position) | ° | 43.5 |
| Bucket Drawback Angle (Ground Position) | ° | 36.5 |
| Dump Angle | ° | 43.5 |
| Digging Depth | mm | 191 |
| Max. Breakout Force | KN | >40 |
| Performance Specifications | ||
| Max. Grade Ability | ° | >30 |
| Max. Traction Power | KN | 70-75 |
| Min. Turning Radius | mm | 4300 |
| Dimensions | ||
| Wheelbase | mm | 2320 |
| Front Wheel Track | mm | 1910 |
| Rear Wheel Track | mm | 1820 |
| Minimum Ground Clearance | mm | 500 |
| Total Length | mm | 7100 |
| Total Height (Cab) | mm | 2870 |
| Total Width | mm | 2730 |
| Bucket Width | mm | 2300 |
| Digging End Bucket Width | mm | 750 |
| Fluid Systems & Power | ||
| Hydraulic Tank Capacity | L | 155 |
| Diesel Tank Capacity | L | 100 |
| Tire Specification | - | 14-17.5 / 19.5L-24 |
| Voltage | V | 12 |
| Engine | - | Cummins 75kW |

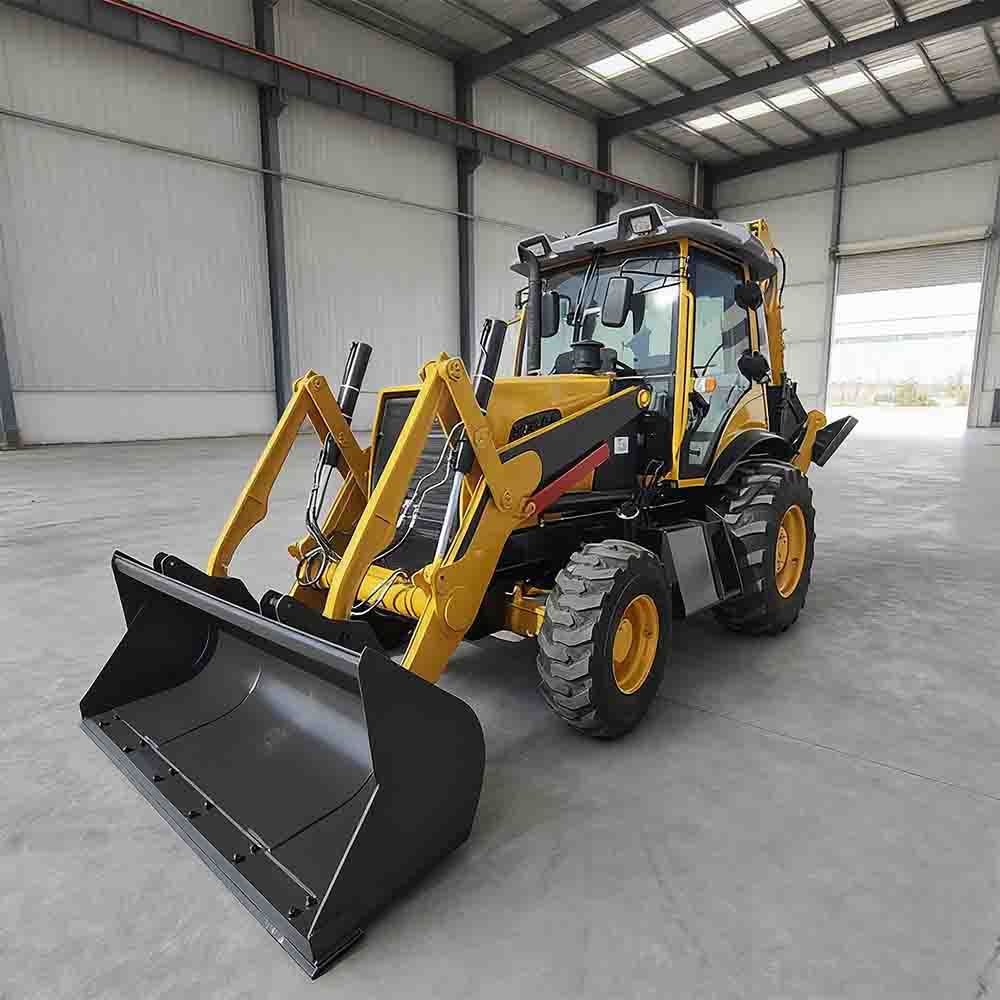

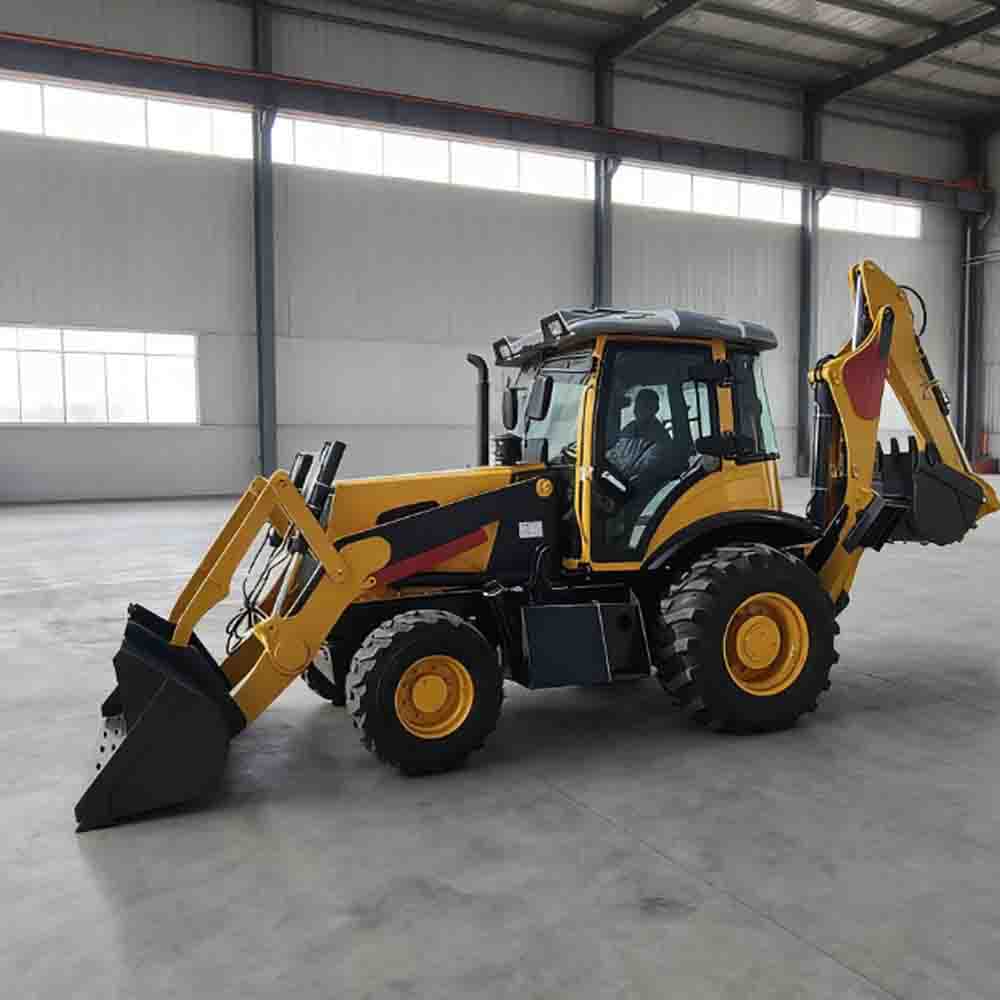

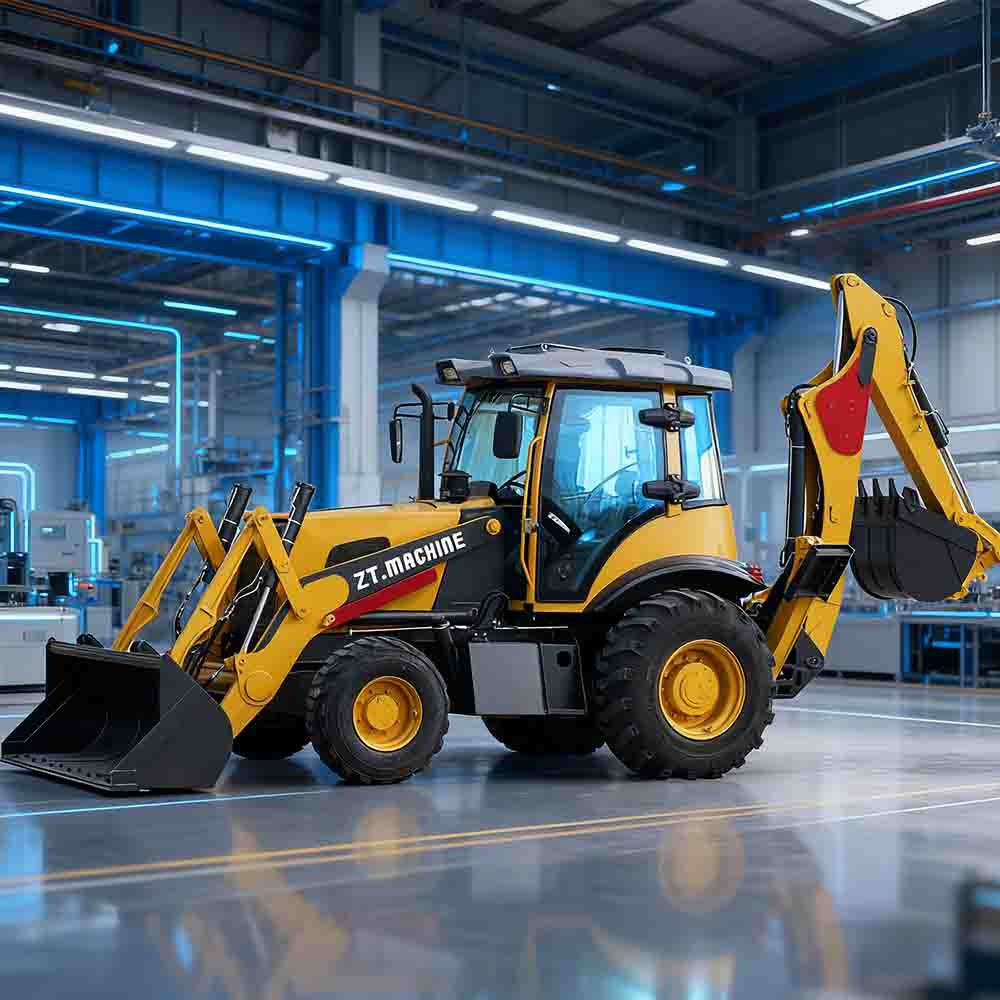

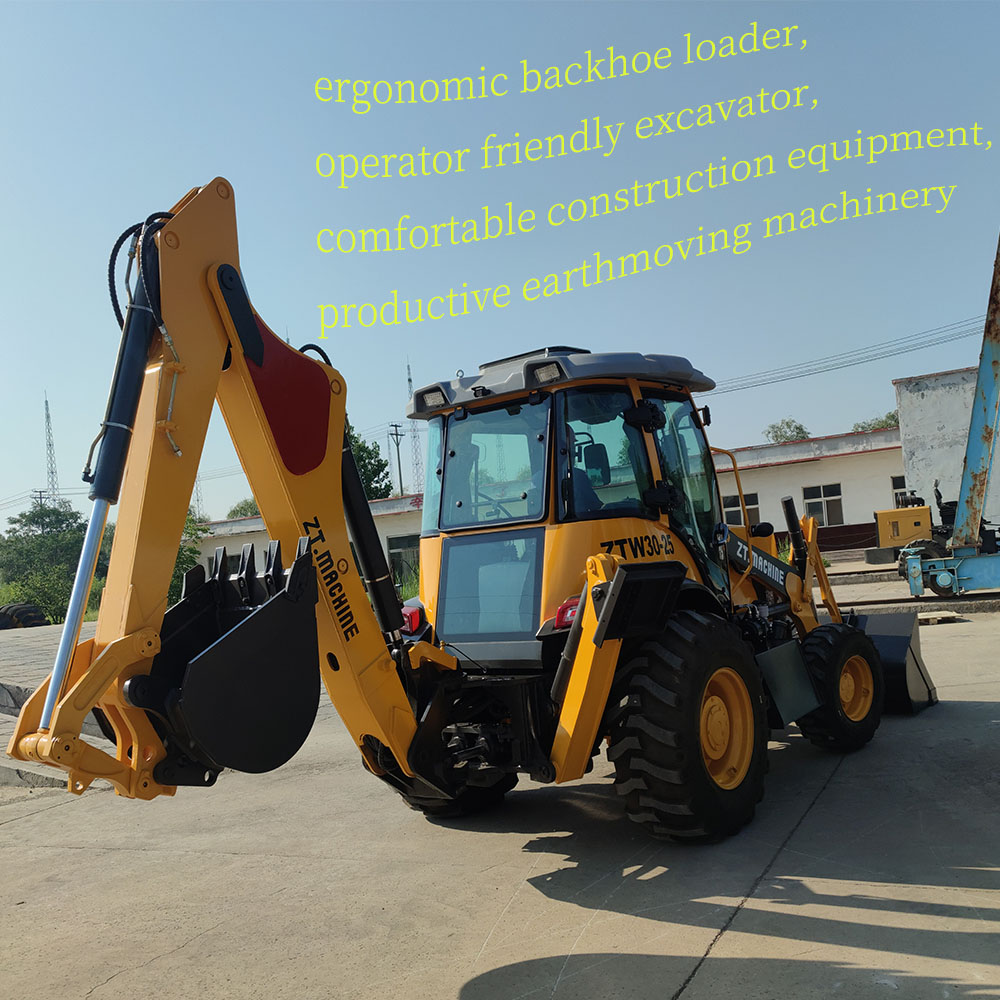

Detailed Photos
Facebook ID zhengtai.taian
Product Description
ZTW30-25 Backhoe Loader Key Features
| Category | Details |
|---|---|
| General Specifications | |
| Weight | 7660 kg |
| Dimensions (L×W×H) | 7077×2350×3420 mm |
| Backhoe Bucket Capacity | 0.3 m³ |
| Loading Bucket Capacity | 1 m³ |
| Power & Drivetrain | |
| Engine Options | • Cummins 75kW (low fuel consumption, low noise, high power) • Xinchai 60kW (alternative power system) |
| Drivetrain | 4x4WD for superior off-road traction |
| Transmission | Hydraulic torque converter for smooth power delivery |
| Operator Comfort | |
| Cab Design | • Spacious ergonomic cab with shock absorption • Low-noise environment for reduced operator fatigue |
| Seating | Fully adjustable seat for personalized comfort during long shifts |
| Monitoring & Control | |
| Instrument Panel | Real-time display of critical metrics: • Water temperature • Oil temperature • Electrical current |
| Functionality & Versatility | |
| Capabilities | Integrates all functions of mini excavators, ideal for diverse tasks:
|
| Performance Advantages | |
| Efficiency | • Optimized fuel efficiency for cost-effective operation • High-power output for heavy-duty applications |
| Durability | Rugged construction for reliable performance in harsh environments |
Packaging & Shipping
Packing & Delivery
Container 40HC 2 units can be installed
1.Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.
2. spare parts or wearing parts will be packed in wooden box or paper carton.
3. Standard shipping method is by container.
