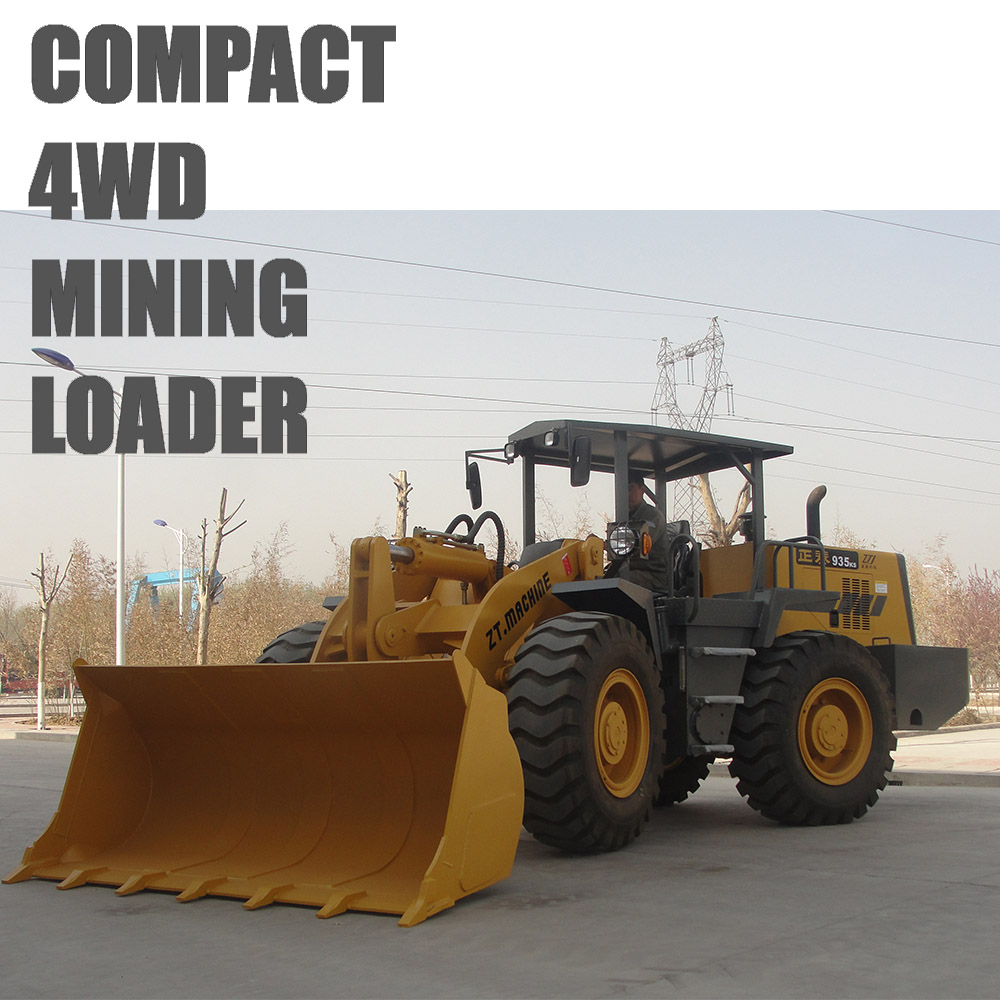

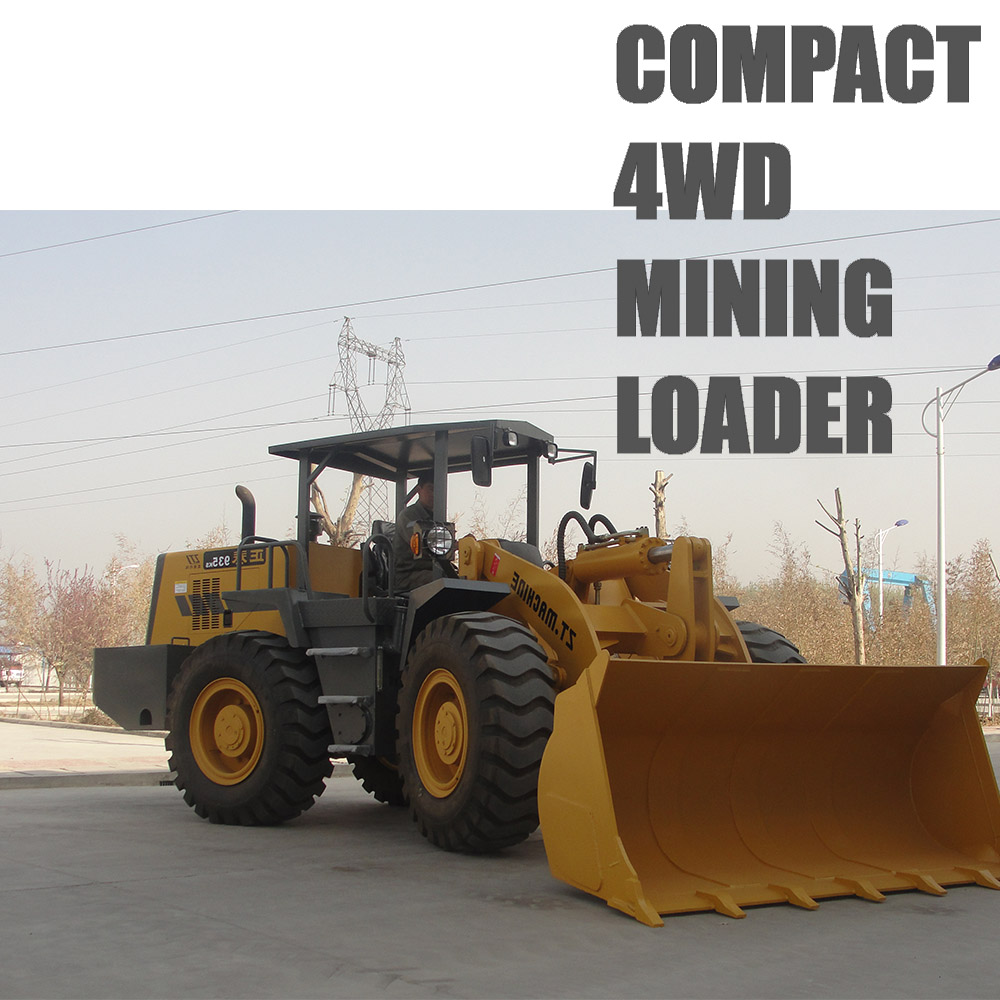

3 Ton Mining Loader with 92Kw Diesel Engine
Powerful & Versatile Underground Loader - Built for Demanding Mining Operations
1. Superior Loading Capacity
✔ 3,000kg Rated Load - Handles heavy materials with ease, maximizing productivity
✔ 1.7m³ Large Bucket Capacity - Moves more material per cycle, reducing operational time
2. Unmatched Maneuverability
✔ 40° Steering Angle + 5,555mm Turning Radius - Exceptional agility in tight underground spaces
✔ Compact Dimensions (6.7m x 2.25m) - Fits comfortably in narrow tunnels and confined work areas
3. Heavy-Duty Construction
✔ 9,600kg Robust Frame - Withstands harsh mining conditions and heavy impacts
✔ 380mm High Ground Clearance - Navigates rough terrain and obstacles effortlessly
4. Powerful Performance
✔ 92kW High-Torque Engine - Delivers reliable power for continuous operation
✔ 2-Speed Transmission (0-35km/h) - Optimized for both precision work and efficient transport
5. Operator-Focused Design
✔ 2,850mm Max Dump Height - Perfectly matches standard mining trucks for easy loading
✔ 960mm Extended Dump Reach - Provides greater flexibility in material placement
6. Low-Cost Operation
✔ Fuel-Efficient Engine - Reduces running costs without sacrificing power
✔ Easy Maintenance Access - Minimizes downtime and service expenses
ZT935KS 3-Ton Mining Loader with 92Kw Diesel Engine
high torque mining loader | 3 ton payload loader | underground ore loader
3000kg rated capacity with 6000kg tipping load
92Kw rear-mounted diesel engine (Luotuo 6108)
40° articulated steering for tight spaces
Dual wet brake system for enhanced safety
Certified for non-explosive mine environments
Engineered for heavy-duty material handling, this KA-certified loader achieves 2730mm unloading height with 930mm dumping precision. The four-wheel drive system delivers 70KN traction force, enabling operation on 25% inclines. With 2440mm width and 2550mm height, it navigates standard mine tunnels effortlessly while maintaining ≤12s operational cycles.
Key specifications include 1.9m³ bucket capacity, 17.5-25 heavy-duty tires, and 5550mm outer turning radius. The electric start system ensures reliable performance in temperatures ranging from -25°C to 45°C. Compliant with GB 25684.3-2010 standards, this loader is manufactured in our ISO9001-certified facility.
Product Parameters
Rated load capacity (kg) | 3000 | Bucket width (mm) | 2440 |
Bucket capacity (m3) | 1.9 | Wheelbase (mm) | 1800 |
Unloading height (mm) | 2730 | Wheelbase (mm) | 2615 |
Unloading distance (mm) | 930 | Work quality (kg) | 9700 |
Tipping load (kg) | 6000 | Minimum ground clearance (mm) | 380 |
Running speed: (km/h) | go ahead | 10 in first gear; 35 in second gear | |
Back | 6 in first gear; 10 in second gear | ||
Maximum traction force (KN) | 70 | Breakout force (KN) | 120 |
Maximum grade(%) | 25 | steering method | Articulated steering |
Passing capacity outer radius (mm) | 5550 | Passing capacity inner radius (mm) | 3750 |
Maximum steering angle of vehicle body (°) | 40 | ||
Overall dimensions (mm) | long | 5880 | |
Width | 2440 | ||
high | 2550 | ||
Drive mode | four-wheel drive | Working device action time (s) | ≤12 |
Start mode | electric start | Diesel engine location | Rear |
Diesel engine model | Luotuo 6108 | Diesel engine power | 92Kw |
Braking form: | Braking method | wet brake | |
Hand brake | Central wet brake | ||
Dumping method | Unloading | ||
Front and rear drive axle | Shandong Yunyu | ||
tire | 17.5-25 | ||
