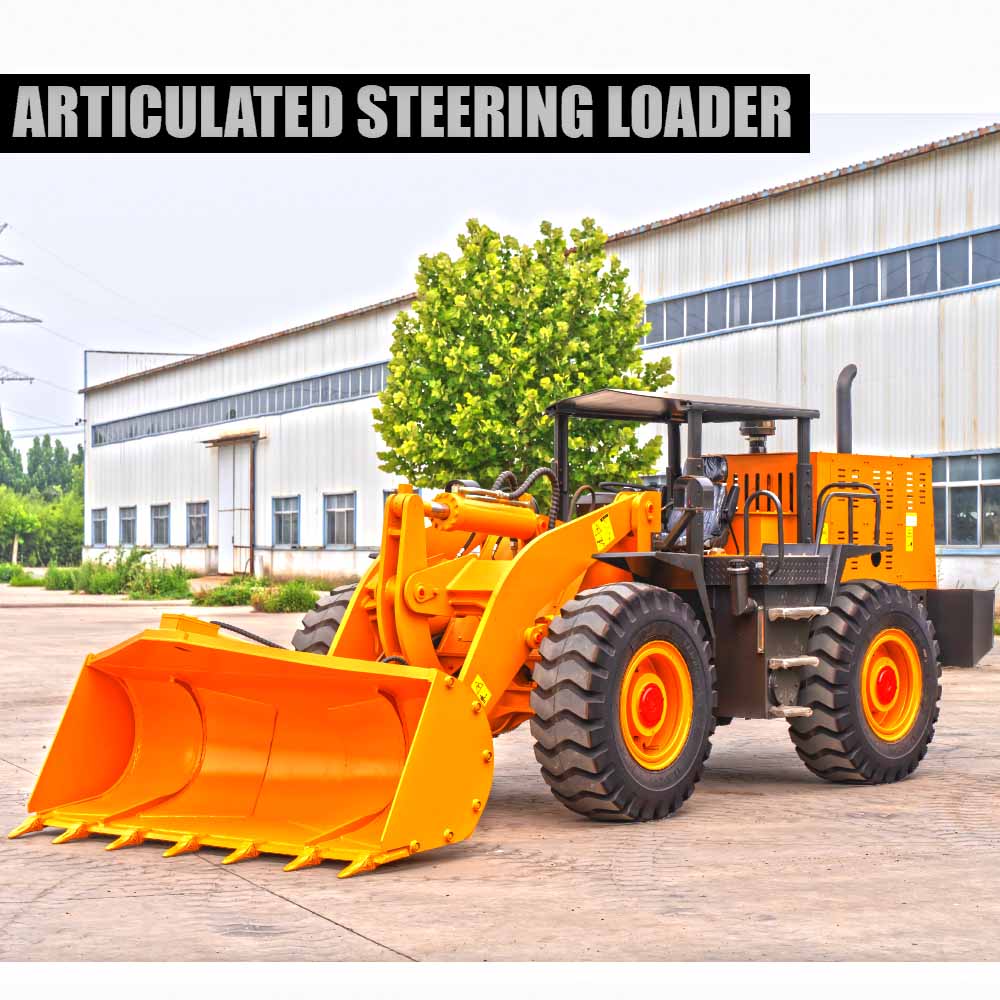

Articulated Steering Loader for Tight Mine Spaces
Powerful & Versatile Underground Loader - Built for Demanding Mining Operations
1. Superior Loading Capacity
✔ 3,000kg Rated Load - Handles heavy materials with ease, maximizing productivity
✔ 1.7m³ Large Bucket Capacity - Moves more material per cycle, reducing operational time
2. Unmatched Maneuverability
✔ 40° Steering Angle + 5,555mm Turning Radius - Exceptional agility in tight underground spaces
✔ Compact Dimensions (6.7m x 2.25m) - Fits comfortably in narrow tunnels and confined work areas
3. Heavy-Duty Construction
✔ 9,600kg Robust Frame - Withstands harsh mining conditions and heavy impacts
✔ 380mm High Ground Clearance - Navigates rough terrain and obstacles effortlessly
4. Powerful Performance
✔ 92kW High-Torque Engine - Delivers reliable power for continuous operation
✔ 2-Speed Transmission (0-35km/h) - Optimized for both precision work and efficient transport
5. Operator-Focused Design
✔ 2,850mm Max Dump Height - Perfectly matches standard mining trucks for easy loading
✔ 960mm Extended Dump Reach - Provides greater flexibility in material placement
6. Low-Cost Operation
✔ Fuel-Efficient Engine - Reduces running costs without sacrificing power
✔ Easy Maintenance Access - Minimizes downtime and service expenses

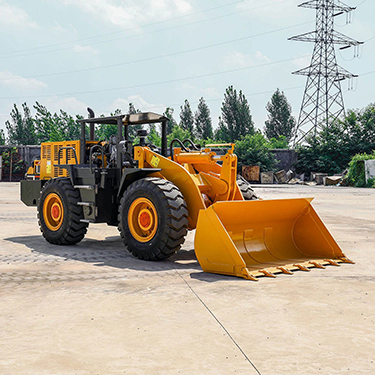

articulated mining loader | confined space loader | maneuverable loading machine
◆ 40° steering angle for precise positioning
◆ 3750mm inner turning radius
◆ 2440mm width fits narrow drifts
◆ 120KN breakout force
Specializing in confined space operations, this articulated loader achieves exceptional maneuverability with its 40° steering angle and 3750mm inner turning radius. The 2440mm width allows operation in narrow drifts, while the 2550mm height clears low mine ceilings. Despite compact dimensions, it delivers full 3000kg rated capacity with 6000kg tipping load.
Performance features include 70KN traction force, wet disc braking system, and fast hydraulic response for precise bucket control. The 92Kw power unit maintains consistent performance in continuous operations. Manufactured by Taian Zhengtai (KA certificate KEC210005), this loader meets all international standards for underground mining equipment.
Product Parameters
Rated load capacity (kg) | 3000 | Bucket width (mm) | 2440 |
Bucket capacity (m3) | 1.9 | Wheelbase (mm) | 1800 |
Unloading height (mm) | 2730 | Wheelbase (mm) | 2615 |
Unloading distance (mm) | 930 | Work quality (kg) | 9700 |
Tipping load (kg) | 6000 | Minimum ground clearance (mm) | 380 |
Running speed: (km/h) | go ahead | 10 in first gear; 35 in second gear | |
Back | 6 in first gear; 10 in second gear | ||
Maximum traction force (KN) | 70 | Breakout force (KN) | 120 |
Maximum grade(%) | 25 | steering method | Articulated steering |
Passing capacity outer radius (mm) | 5550 | Passing capacity inner radius (mm) | 3750 |
Maximum steering angle of vehicle body (°) | 40 | ||
Overall dimensions (mm) | long | 5880 | |
Width | 2440 | ||
high | 2550 | ||
Drive mode | four-wheel drive | Working device action time (s) | ≤12 |
Start mode | electric start | Diesel engine location | Rear |
Diesel engine model | Luotuo 6108 | Diesel engine power | 92Kw |
Braking form: | Braking method | wet brake | |
Hand brake | Central wet brake | ||
Dumping method | Unloading | ||
Front and rear drive axle | Shandong Yunyu | ||
tire | 17.5-25 | ||
