Versatile Backhoe Loader Machine for Efficient Earthmoving Tasks
Strong Power: 75kW Cummins engine, >25KN lifting, 50KN digging, 70–75KN traction.
Versatile Use: Dual buckets, 4340mm digging depth, 5481mm radius for multi-tasking.
Easy Maneuvering: 4300mm turning radius, 500mm ground clearance, compact design.
Durable Build: 7840kg weight, 180° bucket rotation, robust components.
Long Operation: 155L hydraulic + 100L diesel tanks for extended work time.

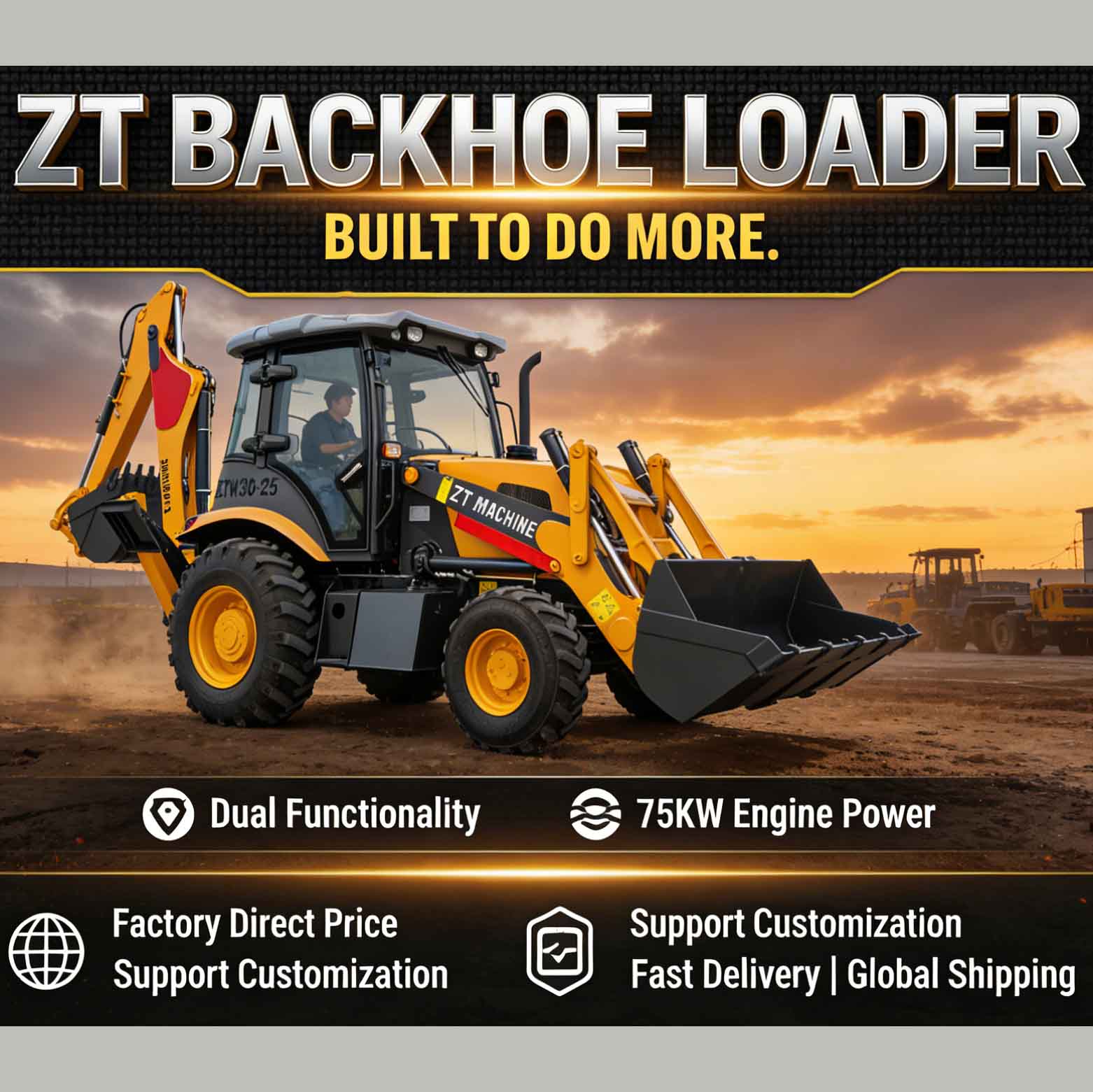

ZT Backhoe Loader – Redefine Your Workflow!
Looking for a machine that's as versatile as it is powerful? Meet the ZT backhoe loader (Model: Ztw30-25) – the ultimate two-in-one beast that's about to become your construction party's life of the party!
🔧 Why ZT Backhoe Loader Stands Out?
Dual-Action Powerhouse
One machine, double the productivity – say goodbye to single-function equipment!
Chassis Chad Design
Reinforced steel frame + 4WD system ensures stability that feels "welded to the ground".
Cockpit Gamer Zone
Ergonomic joysticks offer control so smooth, it's like "winning a Fortnite battle".
Hydraulic Dual System
Front and back operations run simultaneously. While others juggle machines, you'll be multitasking like a boss, leaving single-function competitors in the dust.
🌍 The Ultimate All-Rounder Across Industries
Construction MVP
Handle the entire crew's workload solo.
Farm Party Starter
Make tractors green with envy.
City's BFF
Slash municipal budgets with multi-tasking efficiency.
Mine's Secret Weapon
Outperform dump trucks in precision and agility.
Utility Whisperer
Dig better than your grandpa's old gear!
✨ Triple Threat Magic for Unmatched Flexibility
Compact Ninja
Fits anywhere and spins 360° like a figure skater.
No-Switch Swagger
Switch between front and back functions faster than TikTok trends.
Unkillable Tank
Powered by a Cummins 75kw engine, it survives monsoons, heatwaves, and heavy use – lasting longer than your phone contract.
📊 Basic Info at a Glance
Whether you're a construction veteran, a farming enthusiast, or a municipal manager, the ZT backhoe loader is here to elevate your operations. Say hello to efficiency, versatility, and a machine that works as hard as you do.
Product Description
Product Description
Item | Unit | Parameter | |||
Backhoe bucket capacity | m3 | 0.3 | |||
Rated loading bucket capacity | m3 | 1 | |||
Rated Lifting Force | KN | >25 | |||
Equipment weight | kg | 7840 | |||
Backhoe turning angle | Left | º | 90 | ||
Right | º | 90 | |||
Backhoe parameter | Max. digging radius | mm | 5481 | ||
Max. dump height | mm | 3737 | |||
Radius at the max. dump height | mm | 1084 | |||
Max. digging radius at ground level | mm | 5105 | |||
Digging buckets max. rotating angle | º | 180 | |||
Max. digging depth | mm | 4340 | |||
Max. digging force | KN | 50±10% | |||
Loading parameter | Max. dump height | mm | 2626 | ||
Dump reach at max. dump height | mm | 726 | |||
Bucket draw back angle | Transportation position | º | 43.5 | ||
Ground position | º | 36.5 | |||
Dump angle | º | 43.5 | |||
Digging depth | mm | 191 | |||
Max. breakout force | KN | >40 | |||
Max. grade ability | º | >30 | |||
Max. traction power | KN | 70-75 | |||
Min. turning radius | mm | 4300 | |||
Wheelbase | mm | 2320 | |||
Front wheel track | mm | 1910 | |||
Rear wheel track | mm | 1820 | |||
Minimum ground clearance | mm | 500 | |||
Total length | mm | 7100 | |||
Total height (Cab)() | mm | 2870 | |||
Total Width | mm | 2730 | |||
Bucket width | mm | 2300 | |||
Digging end bucket width | mm | 750 | |||
Hydraulic tank | L | 155 | |||
Diesel tank | L | 100 | |||
Tire | 14-17.5 | 19.5L-24 | |||
Voltage | V | 12 | |||
Engine | cummins 75kw | ||||
Detailed Photos
Youtube work video https://youtu.be/hAjUzpMdKC8
Packaging & Shipping
Packing & Delivery
Container 40HC 2 units can be installed
1.Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.
2. spare parts or wearing parts will be packed in wooden box or paper carton.
3. Standard shipping method is by container.
Our Service
1. OEM order accepted: Customer's brand, Color etc.
2. Spare parts in stock.
3. Factory visiting, third party inspection etc.
4. We will reply for your inquiry in 24 hours.
5. Purchasing agent for related machines.
FAQ
Q1. Are you a manufacturer or trader?
A: We are a manufacturer of construction machines which specilized in producing and exporting loaders including backhoe loaders ,wheel loaders and other construction Machinery .
Q2. What is your terms of payment?
A: A: T / T 30% as deposit in advance, Pay the final payment before shipment.
Q3. How about your delivery time?
A: Generally, it will take 30 days after deposite payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have some stock.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5. What is your warranty policy?
A: We can supply 1 year or 2000h warranty for our machines and parts for free within warranty.
