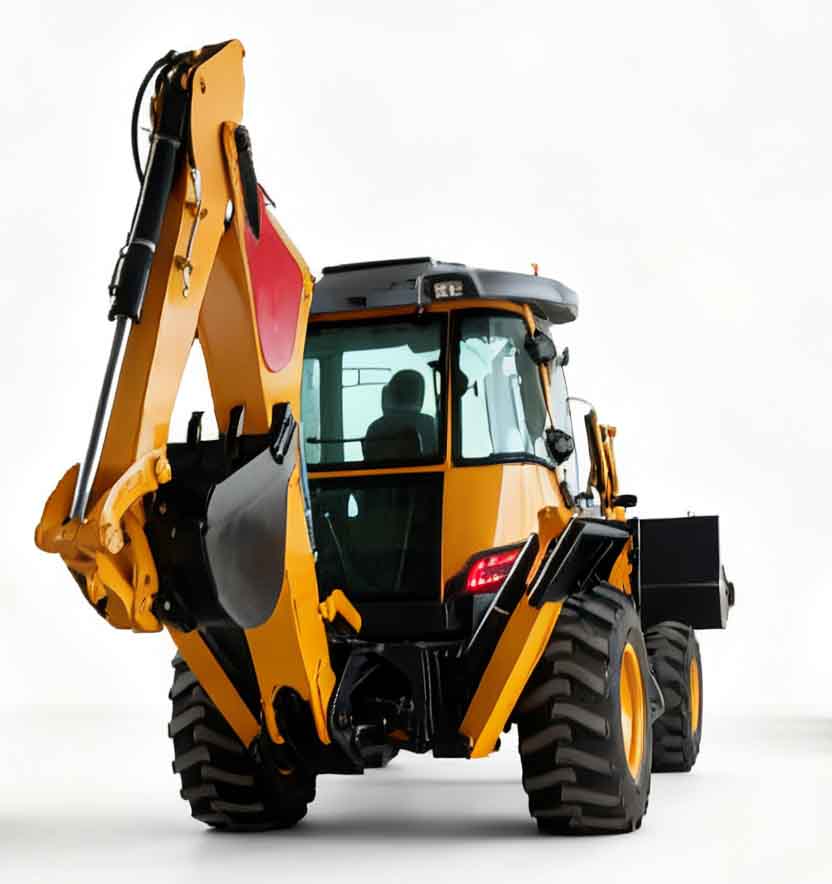

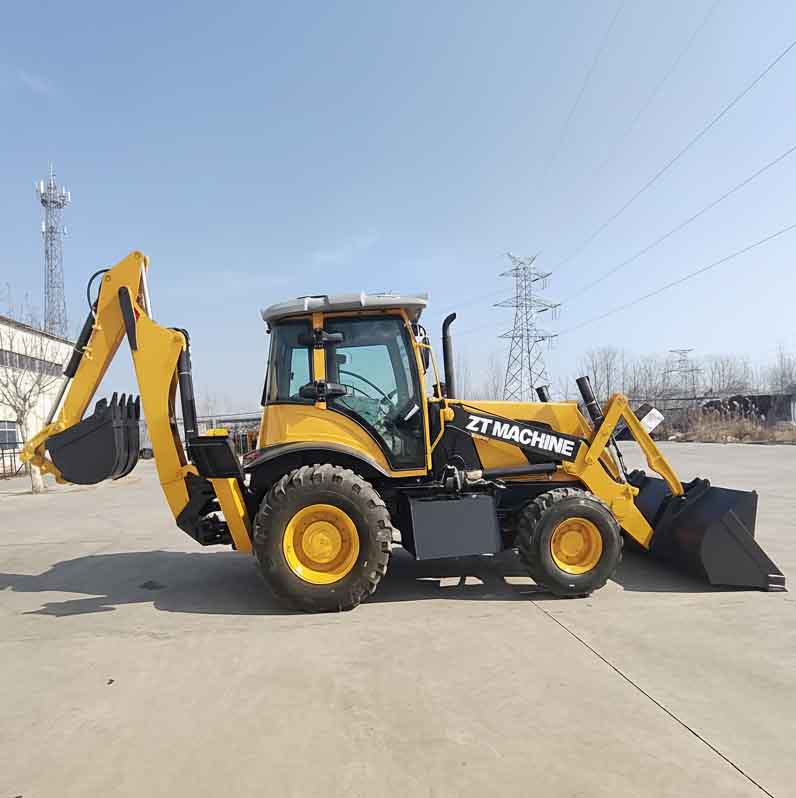

Durable Taian ZTW30-25 Backhoe Loader for Road and Building Construction

Built to tackle the toughest infrastructure projects, the Taian ZTW30-25 is a highly durable backhoe loader designed for road and building construction. Featuring a 75kW Cummins engine, it delivers >25KN lifting and 50KN digging force. Whether you are grading roads or moving materials, this machine offers the robust performance you expect from a premium Construction Wheel Loader.

  • Versatile Excavation: Achieve a 4340mm digging depth and 5481mm radius with dual buckets and 180° rotation for seamless multi-tasking.

  • Exceptional Maneuverability: Operating with a tight 4300mm turning radius and 500mm ground clearance, it navigates urban job sites better than a standard Articulating Loader.

  • Heavy-Duty Build: A robust 7840kg structure and 70-75KN traction ensure reliable performance, making it a highly competitive alternative to traditional Payloader For Sale listings.

  • Extended Uptime: Equipped with a 155L hydraulic tank and 100L diesel tank to guarantee continuous operation with minimal downtime.

With the agility of a Small Front Loader and the power of heavy equipment, this factory-direct machine is the ultimate choice for your construction fleet.

Product Details

JOB SITE DOUBLE CHAMPION · 2-IN-1

ZTW30-25 Backhoe Wheel Loader — The Job Site “Double Champion”

7.84 t Weight · 75 kW CUMMINS Engine · 50 kN Digging Force

This 7.84-ton ZTW30-25 is the workhorse on mixed construction sites. The Cummins 75 kW engine drives a 1 m³ front loading bucket and a 0.3 m³ rear digging bucket on one 4×4 chassis — digging, loading and backfilling without a machine swap.

ZTW30-25 backhoe wheel loader for road and building construction

20+ Years of Export Experience, Built Around Two-Machines-in-One Efficiency

As a loader manufacturer with more than 20 years of export experience, Taian Zhengtai (ZT MACHINE) has delivered backhoe wheel loaders to construction, municipal and utility contractors in more than 20 countries. The ZTW30-25 was specified for one brief: replace two separate machines — an excavator and a wheel loader — with a single road-legal unit that ships two per 40HQ container.

Productivity is measurable at both ends. The front loader delivers more than 40 kN breakout force with a 1 m³ bucket and 2,626 mm dump height for truck loading. The rear backhoe delivers 50 ±10% kN digging force with a 0.3 m³ bucket, 5,481 mm max. digging radius and 4,340 mm max. digging depth — basement and utility trenching without repositioning the chassis.

Mobility separates the ZTW30-25 from tracked alternatives. A 4,300 mm minimum turning radius, grade ability above 30° and 70–75 kN traction power let the machine travel between sites on its own wheels, enter tight urban plots and climb muddy slopes fully loaded. 500 mm ground clearance and a 2,320 mm wheelbase keep it stable on rocky roads and slopes. Tyres: 19.5L-24 rear and 14-17.5 front.

Buyers comparing a compact wheel loader or a high lift wheel loader against a dedicated excavator usually arrive at the same question: does one machine that digs and loads beat two machines that do one thing each? On mixed municipal, agricultural and site work, the backhoe configuration usually removes a machine from the site and an operator from the payroll.

Every structural element — from the reinforced loading arms to the wet-brake axle — is built from verified heavy equipment components rated for continuous duty. Our factory price direct-supply model removes intermediaries, delivering value to contractors, rental fleets and government infrastructure buyers. OEM branding, custom paint and third-party inspection (SGS / BV) are supported at any stage.

Spare parts — wet brake components, hydraulic hoses, filters and tyres — ship in wooden boxes, and emergency orders can be dispatched within 24 hours. Why do contractors choose the ZTW30-25? It solves four operational problems at once: the capital cost of two machines, the transport cost of moving them, the space constraint of tight urban sites, and the downtime of switching equipment between digging and loading tasks.

Terrain Tamer

  • 70–75 kN traction power. Mud and unpaved haul roads stay workable; the 4×4 drivetrain keeps grip where a 4×2 utility loader spins.

  • 500 mm ground clearance. Rocks and rutted ground pass under the chassis instead of dragging it.

  • 4,300 mm turning radius. Alleys, yard corners and municipal work between poles and kerbs are workable without a three-point turn.

Workhorse Power

  • Front loader: 1 m³ bucket with >40 kN breakout force and 2,626 mm dump height — aligned with standard truck beds.

  • Backhoe: 50 ±10% kN digging force with 4,340 mm max. digging depth and 180° bucket swing — spoil placed on either side of the trench without repositioning.

  • Cummins 75 kW engine. Low fuel consumption relative to output; service reachable through the Cummins network in most export markets.

Rock-Solid Base

  • 2,320 mm wheelbase. Stability under a full bucket load, including on side slopes.

  • 1,910 mm front / 1,820 mm rear track. Track width matched to the machine's working envelope for stable grading.

  • 19.5L-24 rear and 14-17.5 front tyres. Tread pattern and size matched to mixed on-road and off-road duty.

  • 155 L hydraulics, 100 L diesel. The working window between fills covers a full shift on most sites.

Want this site workhorse on your team? Email woniuniu9527@163.com for a configuration list and a factory price for your destination port.

📊 Technical Specifications

ItemUnitParameter
Backhoe bucket capacitym³0.3
Rated loading bucket capacitym³1
Rated lifting forcekN>25
Equipment weightkg7840
Backhoe parametersMax. digging radius (mm)5481
Max. dump height (mm)3737
Radius at max. dump height (mm)1084
Max. digging radius at ground level (mm)5105
Digging bucket max. rotating angle (°)180
Max. digging depth (mm)4340
Max. digging force (kN)50 ±10%
Loading parametersMax. dump height (mm)2626
Dump reach at max. dump height (mm)726
Bucket draw back angle — transportation position (°)43.5
Bucket draw back angle — ground position (°)36.5
Dump angle (°)43.5
Digging depth (mm)191
Max. breakout force (kN)>40
Max. grade ability°>30
Max. traction powerkN70–75
Min. turning radiusmm4300
Wheelbasemm2320
Front wheel trackmm1910
Rear wheel trackmm1820
Minimum ground clearancemm500
Total lengthmm7100
Total height (cab)mm2870
Total widthmm2730
Bucket widthmm2300
Digging end bucket widthmm750
Hydraulic tankL155
Diesel tankL100
Tire14-17.519.5L-24
VoltageV12
Engine—Cummins 75 kW
Certification—ISO

Manufacturing process certified to ISO; no other certification is claimed for this unit.

📸 Detailed Photos

ZTW30-25 backhoe wheel loader hydraulic arm and rear digging bucket detail
ZTW30-25 backhoe wheel loader front 1 m³ loading bucket and cab
ZTW30-25 backhoe wheel loader operator cab and dual-joystick control layout
ZTW30-25 backhoe wheel loader chassis, axles and 19.5L-24 rear tyre

📦 Packaging & Shipping

40HC container: two units can be installed.

  • Standard packing. The machine body ships without an enclosure but is secured and fastened in the container with wire rope.

  • Spare parts. Spare and wearing parts are packed in wooden boxes or paper cartons, separate from the machine.

  • Shipping method. Container shipping is the standard method.

ZTW30-25 backhoe wheel loader attachment configuration overview
ZTW30-25 backhoe wheel loader packing and container securing detail
ZTW30-25 backhoe wheel loader Cummins 75 kW engine compartment

❓ Frequently Asked Questions

Are you a factory or a trading company?

We are a loader manufacturer with more than 20 years of production and export experience. The factory is in Taian, Shandong, with in-house R&D, welding, painting and final assembly. All equipment is self-manufactured.

How do you ensure quality before export?

Every ZTW30-25 undergoes a continuous load test covering the Cummins engine, hydraulic system, both loading and backhoe ends, and the wet-brake axle. Third-party inspection (SGS / BV) can be arranged at any stage.

What are the packaging and shipping methods?

A standard 40HC container holds two units. The machine body is anchored with wire rope; spare parts are packed separately in wooden boxes or paper cartons. We coordinate logistics from factory to destination port.

How is after-sales support and spare-parts supply handled?

We maintain stock of consumable parts — wet brake components, filters, hydraulic hoses, tyres. Emergency orders can be dispatched within 24 hours. Remote diagnostics, video guidance and on-site service in selected regions are also available.

Can you provide OEM / customisation services?

Yes. Custom branding, colour options and attachment selection (buckets, forks, breakers, augers) are supported. Share your requirements and we return a tailored configuration list.

How do I get a wheel loader price for my destination?

Send the destination port and the configuration you need. The reply is a factory price for that specification, with export packing included and no intermediary margin added. Two-unit orders share the 40HC container cost.
