ZT815 Mini Dumper: The Powerhouse Unleashed
Conquer steep hills and heavy loads? The ZT815 (codename Z71) reveals its hardcore secrets in this drivetrain deep dive!
❤️
Heart of Power
Equipped with XINCHAI 490 engine, 42hp may seem modest, but hides 156N·m of torque！Like a gym "squat master", it delivers brute force at low RPMs, hauling 1.5 tons effortlessly. 2.67L displacement with 12V battery ensures steady output.
🏔️
Off-Road King
4WD powershift — masters muddy slopes and steep ramps
30° climbing angle — no sweat on hilly jobsites!
6-18km/h bi-directional speed — agile in all directions
Contact: WeChat/WhatsApp +86 13953879973
Premium Construction Machinery from Shandong
When it comes to heavy-duty construction equipment, the origin of manufacturing plays a crucial role in determining quality and reliability. The ZT815 Mini Dumper, proudly manufactured in Shandong, China, represents the pinnacle of industrial engineering combined with practical, job-site tested durability. Shandong province is globally recognized as a hub for heavy machinery production, hosting some of the world's most advanced factories and supply chains. Our facility leverages this strategic location to source the highest grade steel and components, ensuring that every ZT815 dumper is built to withstand the rigors of mining, agriculture, and construction. By choosing ZT, you are not just purchasing a machine; you are investing in the rich heritage of Chinese manufacturing excellence. We adhere to strict ISO quality control standards throughout the entire production process, from laser-cutting the frame to the final assembly of the hydraulic system. This commitment to quality ensures that the ZT815 delivers consistent performance, whether it's navigating the rugged terrain of a mountainous quarry or transporting materials across a sprawling farm in Europe or Southeast Asia.
Heavy Duty Performance

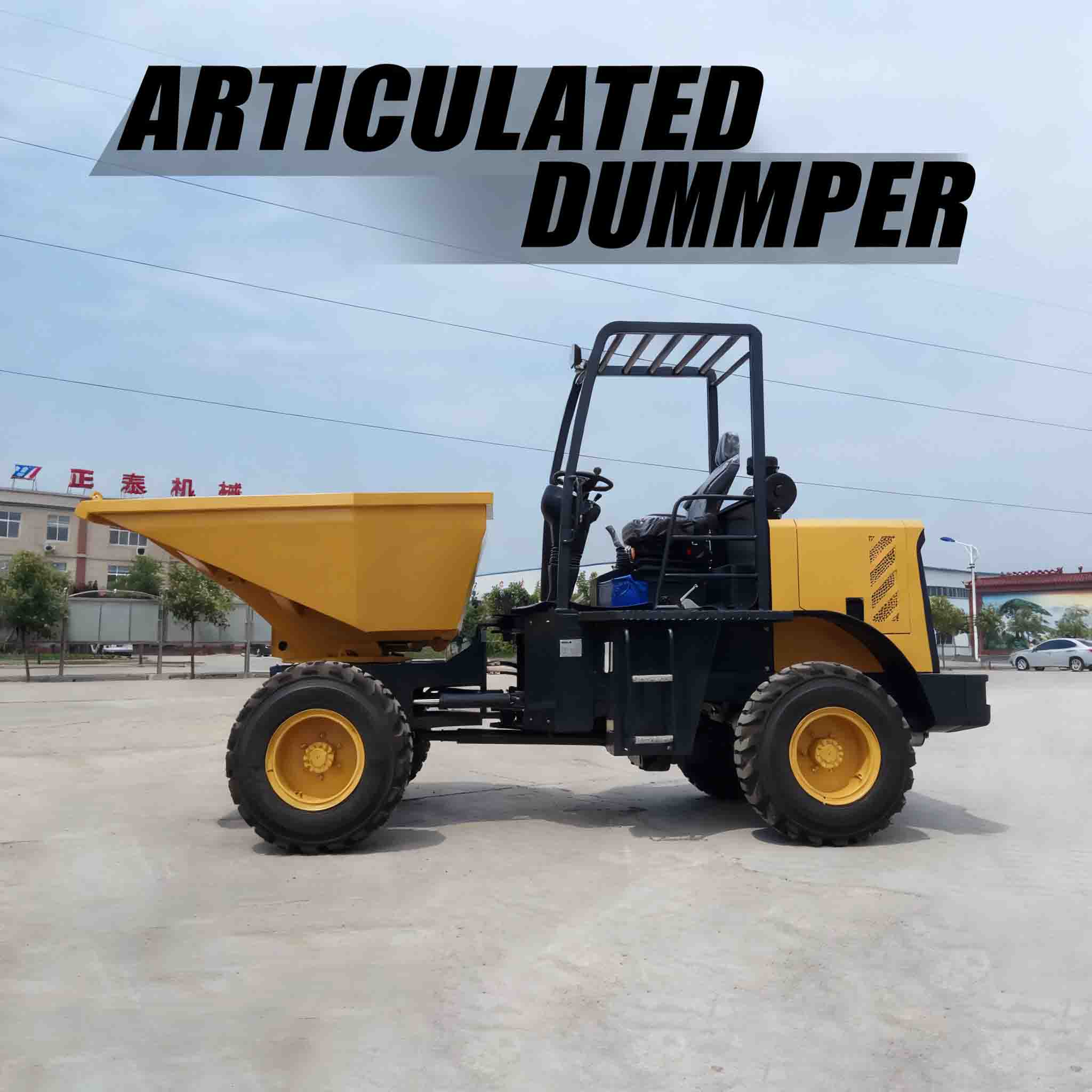

![Heavy Duty Construction Mini Dumper ZT815 working on site]()
Product Specifications
| Loading capacity | 1500KG |
|---|
| Articulation angle | 35° |
|---|
| Maximum loading height | 1600mm |
|---|
| Braking system | Disk |
|---|
| Distance between axis (Wheelbase) | 2480mm |
|---|
| Gauge width (Track) | 1460mm |
|---|
| Load lifting time | 3.5s |
|---|
| Hydraulic system pressure | 16mpa |
|---|
| Cruising Speed - Forward | 6-18km/h |
|---|
| Cruising Speed - Reverse | 6-18km/h |
|---|
| Maximum angle of rise | 30° |
|---|
| Engine - Model | xinchai490 |
|---|
| Engine - Power | 32kw / 42hp |
|---|
| Engine - Maximum Torque | 156nm |
|---|
| Engine - Displacement | 2.67L |
|---|
| Electrical System - Voltage | 12v |
|---|
| Powershift / Drive | 4wd |
|---|
| Tyre Type | 12-16.5 |
|---|
| Equipment weight | 3300kg |
|---|
| Bucket capacity (up to) | 0.8cbm |
|---|
| Dimensions- Total length (with bucket) | 4540mm |
|---|
| Dimensions - Width | 1720mm |
|---|
| Dimensions - Height | 2610mm |
|---|
| Dimensions - Maximum discharge height | 800mm |
|---|
| Minimum distance to the floor | 240mm |
|---|
Deep Dive: Powertrain & Hydraulics
The true measure of a mini dumper lies beneath the hood, and the ZT815 does not disappoint. At its core is the renowned Xinchai 490 engine, a powerplant celebrated across the construction industry for its fuel efficiency and raw torque. With a displacement of 2.67 liters, this engine generates a formidable 156 Newton-meters of torque at low RPMs, allowing the ZT815 to crawl up 30-degree inclines and push through muddy fields without bogging down. This is complemented by a sophisticated 4WD powershift transmission, which provides seamless gear changes and ensures power is distributed evenly to all wheels, maximizing traction in slippery conditions. Furthermore, the hydraulic system operates at a high pressure of 16MPa, enabling the boom to lift a full 1500kg load in just 3.5 seconds. This rapid cycle time significantly boosts productivity on busy job sites. For businesses looking to maximize uptime and minimize fuel costs, the engineering synergy between the engine, transmission, and hydraulics in the ZT815 offers a compelling competitive advantage, making it a preferred choice for contractors in Shandong and beyond.
Product Details & Design
The ZT815 features a compact yet robust design, measuring only 1720mm in width, allowing it to pass through narrow gates and alleys where larger dumpers cannot go. The 35° articulation angle ensures unmatched maneuverability.

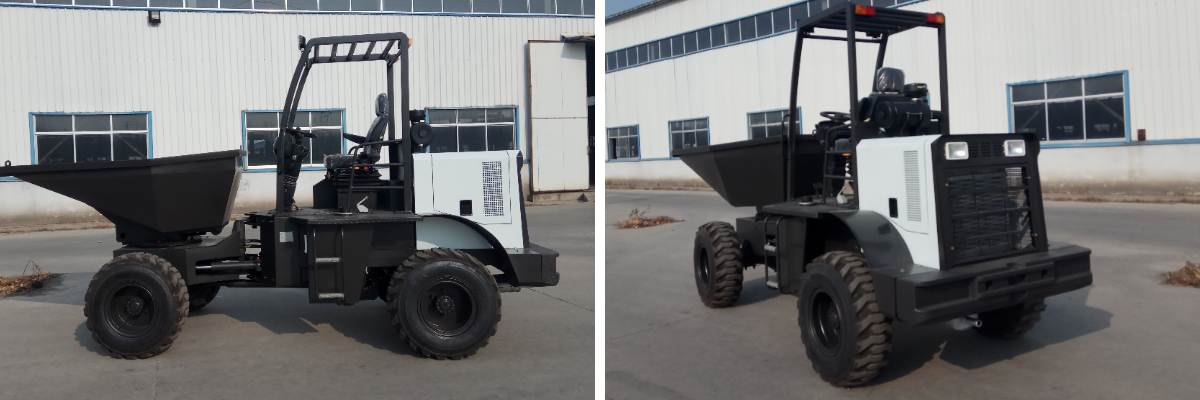

![Compact design of ZT815 Mini Dumper]()
![Side view of ZT815 with articulated steering]()
Versatile Applications Across Industries
Versatility is the hallmark of the ZT815 Mini Dumper. While primarily designed for construction sites, its utility extends far beyond simple earthmoving. In the agricultural sector, farmers utilize the ZT815 for transporting feed, fertilizer, and harvested crops across uneven terrain, benefiting from its gentle 6km/h low speed for precise unloading. Landscapers and gardeners appreciate the machine's compact 1720mm width, which allows it to navigate residential properties without damaging lawns or fences. The 1500kg payload capacity is perfectly suited for hauling bricks, concrete blocks, and tools for small-scale building projects. Additionally, the ZT815 serves as an indispensable tool in mining operations for transporting ore samples and clearing debris. Its disc brake system provides reliable stopping power even on steep descents, ensuring operator safety in high-risk environments. As a leading manufacturer in Shandong, we have seen our ZT815 machines deployed successfully in over 30 countries, proving their adaptability to diverse climatic conditions—from the freezing winters of Russia to the scorching heat of Africa—making it a truly global solution for material handling challenges.
Packaging & Shipping
Our standard packaging ensures the machine is protected with anti-rust film and sturdy wooden crates for secure sea freight transportation.

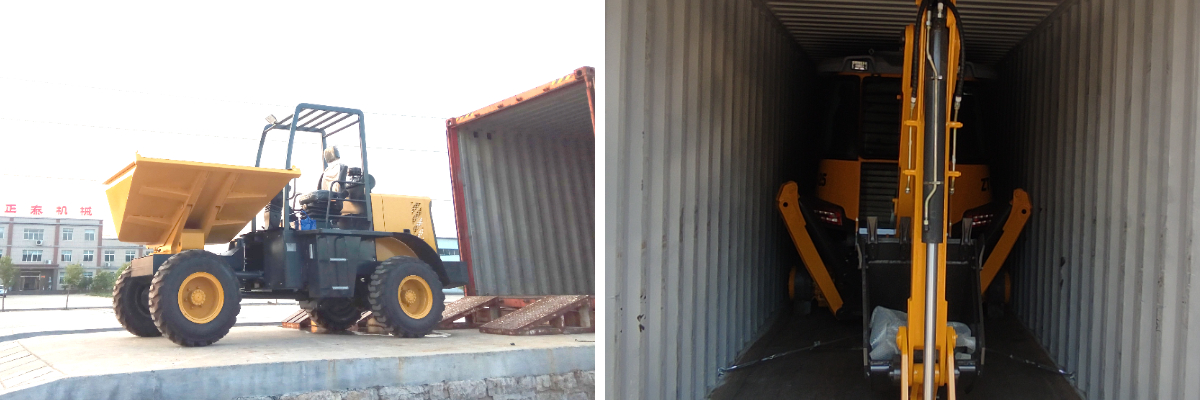

![ZT815 Mini Dumper packed in wooden crate for export]()
Client Visit & Factory Tour
We welcome international clients to visit our factory in Shandong, China, to inspect the production line and test the ZT815 performance firsthand.
![International clients visiting ZhengTai factory]()
![Group photo of clients and engineers at ZhengTai workshop]()
After-Sales Service & Global Support
Purchasing a ZT815 Mini Dumper is the beginning of a long-term partnership with ZhengTai Machinery. We understand that downtime is costly, which is why we have established a comprehensive after-sales service network to support our clients worldwide. Upon delivery, we provide detailed operation manuals and video tutorials to ensure your operators can use the machine safely and efficiently from day one. We maintain a readily available inventory of spare parts—including pumps, seals, filters, and brake components—allowing us to ship replacement parts within 24 hours of receiving an order. Our technical support team is fluent in English and Spanish, ready to provide remote assistance via video call to troubleshoot any issues. For clients in key markets, we offer on-site maintenance training conducted by senior engineers from our Shandong headquarters. This commitment to lifecycle support ensures that your investment in the ZT815 continues to deliver returns for years to come. We don't just sell machinery; we provide peace of mind, knowing that expert help is always just a phone call or WhatsApp message away.
Why Choose ZT815 for Your Next Project?
In conclusion, the ZT815 Mini Dumper is more than just a piece of equipment; it is a strategic asset designed to enhance efficiency and reduce labor costs on any job site. Its unique combination of compact size (1720mm wide), immense power (42hp Xinchai engine), and agile articulation (35°) makes it irreplaceable for contractors working in confined spaces. The robust 4WD system and 30° climbing ability mean you won't have to worry about getting stuck in mud or on steep slopes, common problems that plague less capable machines. Manufactured in the industrial heartland of Shandong, China, the ZT815 benefits from economies of scale and decades of engineering expertise, offering you premium quality at a highly competitive price point. Whether you are a small construction firm looking to expand your fleet or a large agricultural enterprise seeking reliable transport solutions, the ZT815 delivers unmatched value. Contact us today via WeChat or WhatsApp to request a quote or to arrange a virtual factory tour. Discover why the ZT815 is quickly becoming the gold standard for mini dumpers around the globe.
