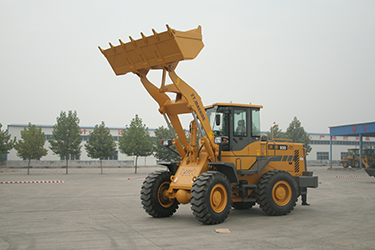

Wheel loader factory direct ZT935
High Load Efficiency: 3000 kg capacity with a 1.7 m³ bucket for faster material handling.
Powerful & Fast: 92 kW Cummins engine, 480 N·m torque, with rapid lift and cycle times.
Strong Digging Capability: 110 kN breakout force, 3150 mm dump height, and 45° discharge angle.
Excellent Maneuverability: 35° steering angle and 4800 mm turning radius for tight spaces.
All-Terrain Ready: 30° gradeability and 417 mm ground clearance for rough conditions.
Smart & Safe Operation: Auto bucket leveling, advanced braking, and manual parking brake.
High-Performance Loader: Designed for tough construction and industrial operations, our 3-ton Wheel Loader delivers. It's powered by a 92 kW Cummins engine, sports a 1.7 m³ bucket, and boasts a hefty 110 kN of breakout force. Swift cycle times, automatic bucket leveling, and outstanding maneuverability ensure top efficiency in any demanding work setting.
Adaptable Workhorse: This machine handles materials quickly, making it ideal for the fast pace of construction and industrial tasks. Its superior versatility means it works effortlessly with various attachments like buckets, forks, and grapples, easily transitioning between lifting, sorting, and hauling. Built from robust materials, it's ready for enduring tough conditions.
Shipping & Delivery: We fit one machine into a 40GP container. The main unit is secured unpackaged. Any spare or wear components are carefully packed in wooden or paper boxes. Containerized freight is our standard delivery method.
Product Specifications
Description | Specification |
Rated load(kg) | 3000 |
standard bucket capacity（m³） | 1.7 |
Equipment weight（kg) | 9600 |
Max.breakout force（kN） | 110 |
Max.dump height（MM） | 3150 |
Max.dump reach（MM） | 1150 |
Discharging Angle（°） | 45 |
Max.grade ability（°） | 30 |
Automatic leveling ability | Yes |
Lifting time（s) | ≤5.6 |
Total cycle time(lifting, dumping, lowering)（s) | ≤10 |
steering angle（°） | 35 |
Min turning radius（MM） | 4800 |
Wheel base（MM） | 2580 |
Tread（MM） | 1870 |
Min.ground clearance（MM） | 417 |
Overall dimensions (l×w×h)mm（MM） | 7550*2385*3145 |
travel speed（km/h） | |
Forward gear I | 0～6.8 |
II | 0～12 |
III | 0～23 |
IV | 0～35 |
reverse gear I | 0～8.5 |
II | 0～27 |
Engine Model | Cummins 6BT5.9-C125-II |
Type | In line, water cooled, four stroke, dir.inject |
Rated power（kW） | 92 |
