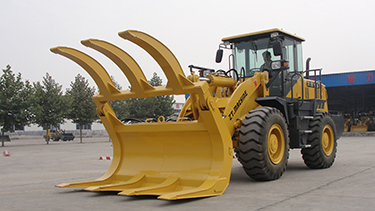

Easy operate wheel loader
High Load Efficiency: 3000 kg capacity with a 1.7 m³ bucket for faster material handling.
Powerful & Fast: 92 kW Cummins engine, 480 N·m torque, with rapid lift and cycle times.
Strong Digging Capability: 110 kN breakout force, 3150 mm dump height, and 45° discharge angle.
Excellent Maneuverability: 35° steering angle and 4800 mm turning radius for tight spaces.
All-Terrain Ready: 30° gradeability and 417 mm ground clearance for rough conditions.
Smart & Safe Operation: Auto bucket leveling, advanced braking, and manual parking brake.
Revolutionize Your Workflow: The 3-ton Wheel Loader, driven by a 92 kW Cummins engine, provides immense power with its 1.7 m³ bucket and 110 kN breakout force. Achieve fast cycle times and precise material handling with automatic bucket leveling and a tight turning radius. Its impressive off-road capabilities make it ideal for any site.
Product Specifications
Description | Specification |
Rated load(kg) | 3000 |
standard bucket capacity（m³） | 1.7 |
Equipment weight（kg) | 9600 |
Max.breakout force（kN） | 110 |
Max.dump height（MM） | 3150 |
Max.dump reach（MM） | 1150 |
Discharging Angle（°） | 45 |
Max.grade ability（°） | 30 |
Automatic leveling ability | Yes |
Lifting time（s) | ≤5.6 |
Total cycle time(lifting, dumping, lowering)（s) | ≤10 |
steering angle（°） | 35 |
Min turning radius（MM） | 4800 |
Wheel base（MM） | 2580 |
Tread（MM） | 1870 |
Min.ground clearance（MM） | 417 |
Overall dimensions (l×w×h)mm（MM） | 7550*2385*3145 |
travel speed（km/h） | |
Forward gear I | 0～6.8 |
II | 0～12 |
III | 0～23 |
IV | 0～35 |
reverse gear I | 0～8.5 |
II | 0～27 |
Engine Model | Cummins 6BT5.9-C125-II |
Type | In line, water cooled, four stroke, dir.inject |
Rated power（kW） | 92 |
Product Details
Peak Performance Guaranteed: Move materials at exceptional speed, a clear advantage in construction and industrial work. This machine is exceptionally versatile, accommodating various attachments to switch effortlessly between lifting, sorting, and hauling. Engineered with tough materials, it's a reliable option built for enduring hard work.
Transport & Packing: We ship one unit in a 40GP container. The machine's core is secured directly, while loose parts are packed in wood or paper. Our standard shipping is container-based.
Client Visit
Beyond Expectations: Get your products customized via OEM, with brand and color choices. Spare parts are always ready for dispatch. We provide full service, including factory tours and third-party audits. Your questions will be addressed within 24 hours. We can even act as your buying agent for other equipment.
Q1: Are you the manufacturer or a trading business? A: We are the dedicated manufacturer, specializing in making and exporting construction machinery, including backhoe loaders, wheel loaders, and other specific construction equipment. Q2: How do payments work? A: A 30% T/T deposit is due upfront, with the final 70% payable before the items are shipped. Q3: What's the typical time for delivery? A: Expect delivery within 30 days after your deposit. Quicker dispatch is possible for some in-stock models, and delivery times may vary based on your specific order. Q4: Do you inspect products before shipment? A: Yes, every machine is thoroughly examined and tested to meet our high quality standards before it leaves our facility. Q5: What kind of guarantee is provided? A: We offer a warranty covering 1 year or 2000 operating hours, whichever milestone is reached first. This includes both parts and labor at no extra charge.
