3T wheel loader maintenance tips and guidelines
High Load Efficiency: 3000 kg capacity with a 1.7 m³ bucket for faster material handling.
Powerful & Fast: 92 kW Cummins engine, 480 N·m torque, with rapid lift and cycle times.
Strong Digging Capability: 110 kN breakout force, 3150 mm dump height, and 45° discharge angle.
Excellent Maneuverability: 35° steering angle and 4800 mm turning radius for tight spaces.
All-Terrain Ready: 30° gradeability and 417 mm ground clearance for rough conditions.
Smart & Safe Operation: Auto bucket leveling, advanced braking, and manual parking brake.
The Essential Package

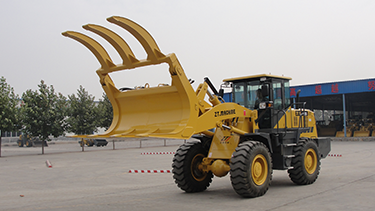

Loader Excellence: Our 3-ton Wheel Loader is engineered for demanding construction and industrial projects. Its 92 kW Cummins engine, 1.7 m³ bucket, and 110 kN breakout force deliver robust performance. Rapid cycle times, automatic bucket leveling, and exceptional maneuverability guarantee high efficiency in any challenging environment.
Ultimate Versatility: This machinery offers swift material handling, perfectly adapting to diverse construction and industrial demands. It seamlessly integrates with various attachments like buckets, forks, and grapples, allowing it to transition effortlessly between lifting, sorting, and hauling. Constructed from tough materials, it's built to withstand rigorous use.
Shipment Process: A single machine fits into a 40GP container. The main unit is secured unpackaged. Loose and wear components are protected in wooden or cardboard boxes. Containerized shipping is our default delivery method.
Dedicated Support: We welcome OEM requests for branding and color. Spare parts are always stocked. Our services include factory visits and independent inspections. Expect responses within 24 hours. We can also simplify your sourcing by acting as your purchasing agent for related equipment.
Product Specifications
Description | Specification |
Rated load(kg) | 3000 |
standard bucket capacity（m³） | 1.7 |
Equipment weight（kg) | 9600 |
Max.breakout force（kN） | 110 |
Max.dump height（MM） | 3150 |
Max.dump reach（MM） | 1150 |
Discharging Angle（°） | 45 |
Max.grade ability（°） | 30 |
Automatic leveling ability | Yes |
Lifting time（s) | ≤5.6 |
Total cycle time(lifting, dumping, lowering)（s) | ≤10 |
steering angle（°） | 35 |
Min turning radius（MM） | 4800 |
Wheel base（MM） | 2580 |
Tread（MM） | 1870 |
Min.ground clearance（MM） | 417 |
Overall dimensions (l×w×h)mm（MM） | 7550*2385*3145 |
travel speed（km/h） | |
Forward gear I | 0～6.8 |
II | 0～12 |
III | 0～23 |
IV | 0～35 |
reverse gear I | 0～8.5 |
II | 0～27 |
Engine Model | Cummins 6BT5.9-C125-II |
Type | In line, water cooled, four stroke, dir.inject |
Rated power（kW） | 92 |
