Wheel loader for heavy duty tasks
High Load Efficiency: 3000 kg capacity with a 1.7 m³ bucket for faster material handling.
Powerful & Fast: 92 kW Cummins engine, 480 N·m torque, with rapid lift and cycle times.
Strong Digging Capability: 110 kN breakout force, 3150 mm dump height, and 45° discharge angle.
Excellent Maneuverability: 35° steering angle and 4800 mm turning radius for tight spaces.
All-Terrain Ready: 30° gradeability and 417 mm ground clearance for rough conditions.
Smart & Safe Operation: Auto bucket leveling, advanced braking, and manual parking brake.
Professional Grade: For demanding construction and industrial jobs, our 3-ton Wheel Loader is a top contender. Powered by a 92 kW Cummins engine, it boasts a 1.7 m³ bucket and a formidable 110 kN of breakout force. Its high efficiency stems from rapid cycle times, automatic bucket leveling, and exceptional maneuverability, making it suitable for any challenging work environment.
Adaptable Utility: This machinery provides quick material handling, perfectly suited for the demands of construction and industrial work. Its superior versatility allows for easy integration with attachments like buckets, forks, and grapples for tasks ranging from lifting to sorting to hauling. Constructed from robust materials, it's built to withstand enduring tough conditions.
Logistics Overview: We ship one machine per 40GP container. The main unit is unboxed but firmly secured. Spare and wearing components are placed in wooden or paper boxes. Containerized freight is our default shipping method.
Our Service Pledge: We welcome OEM orders for branding and color. All spare parts are guaranteed in stock. Our services extend to factory visits and independent inspections. We ensure responses within 24 hours. Plus, we can simplify your acquisitions by acting as your purchasing agent for related machinery.
Product Specifications
Description | Specification |
Rated load(kg) | 3000 |
standard bucket capacity（m³） | 1.7 |
Equipment weight（kg) | 9600 |
Max.breakout force（kN） | 110 |
Max.dump height（MM） | 3150 |
Max.dump reach（MM） | 1150 |
Discharging Angle（°） | 45 |
Max.grade ability（°） | 30 |
Automatic leveling ability | Yes |
Lifting time（s) | ≤5.6 |
Total cycle time(lifting, dumping, lowering)（s) | ≤10 |
steering angle（°） | 35 |
Min turning radius（MM） | 4800 |
Wheel base（MM） | 2580 |
Tread（MM） | 1870 |
Min.ground clearance（MM） | 417 |
Overall dimensions (l×w×h)mm（MM） | 7550*2385*3145 |
travel speed（km/h） | |
Forward gear I | 0～6.8 |
II | 0～12 |
III | 0～23 |
IV | 0～35 |
reverse gear I | 0～8.5 |
II | 0～27 |
Engine Model | Cummins 6BT5.9-C125-II |
Type | In line, water cooled, four stroke, dir.inject |
Rated power（kW） | 92 |

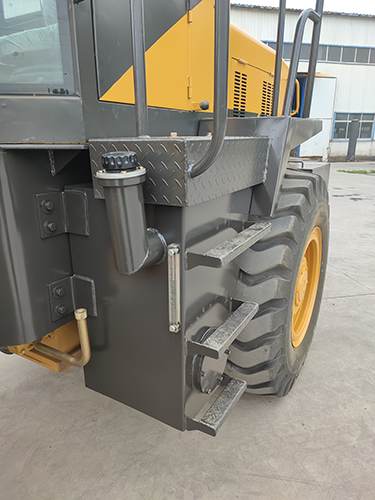

Product Details
