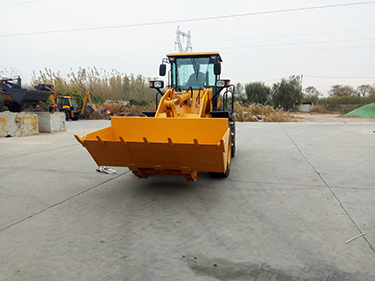

China Factory 3ton Small loader
High Load Efficiency: 3000 kg capacity with a 1.7 m³ bucket for faster material handling.
Powerful & Fast: 92 kW Cummins engine, 480 N·m torque, with rapid lift and cycle times.
Strong Digging Capability: 110 kN breakout force, 3150 mm dump height, and 45° discharge angle.
Excellent Maneuverability: 35° steering angle and 4800 mm turning radius for tight spaces.
All-Terrain Ready: 30° gradeability and 417 mm ground clearance for rough conditions.
Smart & Safe Operation: Auto bucket leveling, advanced braking, and manual parking brake.
Premium 3-Ton Wheel Loader: Engineered for Construction Excellence Our 3-ton wheel loader stands as a pinnacle of reliability and performance in the construction and material handling machinery sector, meticulously manufactured using high-grade industrial raw materials and cutting-edge production processes. The entire frame and key structural components are fabricated from thickened high-strength carbon structural steel sourced from top-tier domestic steel mills, undergoing precision cutting, automatic robotic welding, stress relief annealing, and multi-layer anti-corrosion spraying treatments to ensure exceptional structural rigidity, load-bearing capacity, and long-term durability in harsh outdoor working environments. Powered by a genuine 92 kW Cummins 6BT5.9-C125-II engine, this four-stroke, water-cooled, direct-injection power unit delivers stable torque output, remarkable fuel efficiency, and compliance with international emission standards, perfectly balancing power performance and environmental protection. Every hydraulic system component adopts internationally renowned brand parts, featuring low leakage, high pressure resistance, and sensitive response, while the standardized hydraulic pipeline layout and rigorous pressure testing eliminate potential failures. The machine adheres strictly to national construction machinery manufacturing standards and ISO9001 quality management system certifications, with each unit passing comprehensive factory inspections including load testing, continuous operation testing, and performance calibration, ensuring consistent quality and reliable operation for global customers.
Boasting outstanding product characteristics and professional design advantages, our 3-ton wheel loader redefines efficiency and versatility in material handling operations. Equipped with a 1.7 m³ standard bucket and an impressive 110 kN breakout force, it effortlessly handles loading, digging, and transporting of sand, gravel, coal, soil, construction waste, and bulk materials, with a maximum dumping height of 3150mm and 45° dumping angle to meet diverse loading and unloading demands. The automatic bucket leveling function eliminates manual adjustment, significantly improving operation efficiency and material loading fullness, while the ≤5.6s lifting time and ≤10s total working cycle time ensure rapid and efficient continuous operation. The compact body design with a 35° steering angle and 4800mm minimum turning radius delivers exceptional maneuverability, making it ideal for narrow construction sites, urban construction projects, and indoor material handling. The full hydraulic steering system and ergonomic operating layout reduce driver fatigue during long-hour work, and the 30° grade ability ensures stable climbing performance on sloped terrains. With a robust 9600kg operating weight, the machine maintains excellent stability during heavy-load operations, effectively preventing rollovers and ensuring operational safety.
Product Specifications & Dimensional Standards
Our 3-ton wheel loader features a complete set of optimized dimensional parameters and performance specifications designed for global adaptability and transportation convenience, fully complying with international construction machinery design norms and container shipping standards. The overall dimensions of 7550*2385*3145mm create a perfect balance between operational space and transportation flexibility, with the entire unit capable of being securely loaded into a standard 40GP container for cost-effective global shipping. The 2580mm wheelbase and 1870mm tread enhance driving stability, while the 417mm minimum ground clearance provides excellent obstacle-crossing ability and protects chassis components from damage. The machine offers four forward gears (0-35km/h) and two reverse gears (0-27km/h), allowing flexible speed adjustment for different working scenarios, from low-speed heavy-load loading to high-speed site transfer. Key parameters including rated load of 3000kg, maximum dumping reach of 1150mm, and precise hydraulic control systems are all engineered to maximize operational efficiency and application scope. Every specification is verified through practical engineering applications, ensuring the machine can adapt to various working conditions and deliver consistent performance in construction, mining, agriculture, and port operations worldwide.
Description | Specification |
Rated load(kg) | 3000 |
standard bucket capacity（m³） | 1.7 |
Equipment weight（kg) | 9600 |
Max.breakout force（kN） | 110 |
Max.dump height（MM） | 3150 |
Max.dump reach（MM） | 1150 |
Discharging Angle（°） | 45 |
Max.grade ability（°） | 30 |
Automatic leveling ability | Yes |
Lifting time（s) | ≤5.6 |
Total cycle time(lifting, dumping, lowering)（s) | ≤10 |
steering angle（°） | 35 |
Min turning radius（MM） | 4800 |
Wheel base（MM） | 2580 |
Tread（MM） | 1870 |
Min.ground clearance（MM） | 417 |
Overall dimensions (l×w×h)mm（MM） | 7550*2385*3145 |
travel speed（km/h） | |
Forward gear I | 0～6.8 |
II | 0～12 |
III | 0～23 |
IV | 0～35 |
reverse gear I | 0～8.5 |
II | 0～27 |
Engine Model | Cummins 6BT5.9-C125-II |
Type | In line, water cooled, four stroke, dir.inject |
Rated power（kW） | 92 |
With exceptional versatility and strong adaptability, our 3-ton wheel loader excels in a wide range of application scenarios across multiple industries, making it an indispensable equipment for construction, agriculture, mining, ports, and municipal engineering. In urban construction sites, it efficiently handles sand and gravel loading, foundation excavation, and construction waste cleaning; in agricultural applications, it manages grain handling, fertilizer transportation, and farmland renovation; in mining operations, it performs ore loading and slag handling with its powerful breakout force; and in port terminals, it streamlines bulk cargo handling and warehouse material transfer. The machine supports seamless integration with various attachments including fork attachments, grapples, snow blowers, and crushing buckets, transforming it into a multi-functional workhorse for lifting, sorting, hauling, snow removal, and material crushing tasks. Our professional R&D team continuously optimizes product performance through academic cooperation and technical innovation, combining practical application feedback with advanced engineering technology to enhance operational efficiency, reduce energy consumption, and extend service life. The modular design concept simplifies maintenance procedures, reducing downtime and improving overall operational economy for customers.
As a professional construction machinery manufacturer with large-scale production capacity and sufficient inventory, we guarantee reliable supply and comprehensive support for global customers. Our modern manufacturing base covers tens of thousands of square meters, equipped with CNC machining centers, automatic welding lines, and professional assembly workshops, with an annual production capacity of over 500 units of 3-ton wheel loaders to meet bulk orders and urgent delivery requirements. We maintain a comprehensive inventory system including complete machines, core components, and all spare parts, ensuring 24-hour delivery for conventional orders and customized solutions for special requirements. We warmly welcome OEM orders, providing full customization of brand logos, body colors, and configuration combinations to meet diverse market demands. Our global sales and service network supports factory visits, third-party quality audits, and on-site machine testing, with a professional technical team providing 24-hour inquiry response and one-stop purchasing agency services for related machinery. With thousands of successful cooperation cases worldwide, our wheel loaders have earned high recognition from customers in over 50 countries and regions for their stable performance and cost-effective advantages.
We implement a complete quality control system and thoughtful after-sales service throughout the entire product lifecycle, from production and transportation to use and maintenance. Each machine is securely loaded into a standard 40GP container, with the main unit firmly fixed and spare parts carefully packaged in wooden or paper boxes to ensure safe transportation. Our logistics team optimizes shipping routes and provides comprehensive transportation tracking, ensuring timely and secure delivery to any destination worldwide. After-sales service includes remote technical guidance, on-site maintenance, regular maintenance reminders, and permanent spare parts supply, eliminating operational concerns for customers. We continuously collect customer usage data to optimize product upgrades and improve service quality, committed to providing high-performance, reliable, and cost-effective wheel loader solutions that create long-term value for global partners. With a focus on quality, innovation, and customer satisfaction, we strive to become your most trusted construction machinery supplier and long-term cooperative partner.
