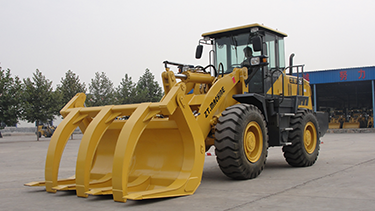

3T loader price
High Load Efficiency: 3000 kg capacity with a 1.7 m³ bucket for faster material handling.
Powerful & Fast: 92 kW Cummins engine, 480 N·m torque, with rapid lift and cycle times.
Strong Digging Capability: 110 kN breakout force, 3150 mm dump height, and 45° discharge angle.
Excellent Maneuverability: 35° steering angle and 4800 mm turning radius for tight spaces.
All-Terrain Ready: 30° gradeability and 417 mm ground clearance for rough conditions.
Smart & Safe Operation: Auto bucket leveling, advanced braking, and manual parking brake.
Product Introduction
Optimize Your Operations: Experience superior performance with the 3-ton Wheel Loader. Equipped with a 92 kW Cummins engine and a 1.7 m³ bucket, it delivers 110 kN of breakout force for demanding tasks. Fast cycles, automatic bucket leveling, and agile handling boost productivity, while its robust build and high ground clearance ensure reliability in any environment.
Product Specifications
Description | Specification |
Rated load(kg) | 3000 |
standard bucket capacity（m³） | 1.7 |
Equipment weight（kg) | 9600 |
Max.breakout force（kN） | 110 |
Max.dump height（MM） | 3150 |
Max.dump reach（MM） | 1150 |
Discharging Angle（°） | 45 |
Max.grade ability（°） | 30 |
Automatic leveling ability | Yes |
Lifting time（s) | ≤5.6 |
Total cycle time(lifting, dumping, lowering)（s) | ≤10 |
steering angle（°） | 35 |
Min turning radius（MM） | 4800 |
Wheel base（MM） | 2580 |
Tread（MM） | 1870 |
Min.ground clearance（MM） | 417 |
Overall dimensions (l×w×h)mm（MM） | 7550*2385*3145 |
travel speed（km/h） | |
Forward gear I | 0～6.8 |
II | 0～12 |
III | 0～23 |
IV | 0～35 |
reverse gear I | 0～8.5 |
II | 0～27 |
Engine Model | Cummins 6BT5.9-C125-II |
Type | In line, water cooled, four stroke, dir.inject |
Rated power（kW） | 92 |
Product Details
Boost Your Output: Experience fast material transfer with its impressive loading/unloading capabilities, a boon for any construction or industrial project. Its adaptability is unmatched, compatible with attachments from buckets to grapples, allowing seamless transitions between jobs like lifting, sorting, and hauling. Crafted from durable components, it's a resilient choice for challenging job sites.
Logistics & Prep: Your machine ships via a 40GP container, one unit per. The primary equipment is unwrapped but firmly anchored inside the container with wire rope. Smaller, replaceable parts are carefully placed in wooden or cardboard boxes. Our default shipping is by container.
Client Visit
Your Service Partner: We handle OEM requests, allowing brand and color personalization. Rest assured, spare parts are readily available. Our services extend to factory visits and third-party quality checks. We promise to respond to all inquiries within 24 hours. Let us streamline your procurement by sourcing related machinery as your agent.
