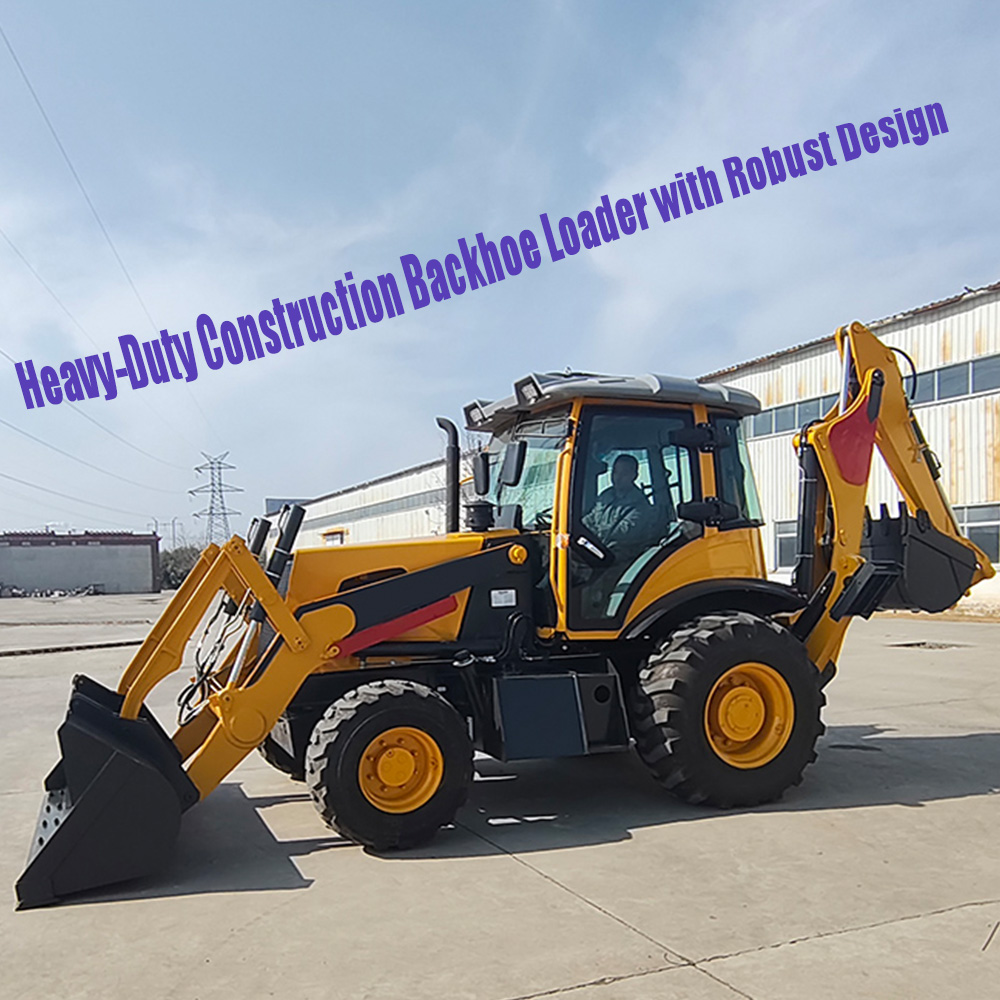

Heavy-Duty Construction Backhoe Loader with Robust Design

Strong Power: 75kW Cummins engine, >25KN lifting, 50KN digging, 70–75KN traction.

Versatile Use: Dual buckets, 4340mm digging depth, 5481mm radius for multi-tasking.

Easy Maneuvering: 4300mm turning radius, 500mm ground clearance, compact design.

Durable Build: 7840kg weight, 180° bucket rotation, robust components.

Long Operation: 155L hydraulic + 100L diesel tanks for extended work time.

Efficient & Comfortable: 15.7km/h speed, 43.5° dump angle, 12V system.

Contact Now E-Mail Telephone WhatsApp

Product Details

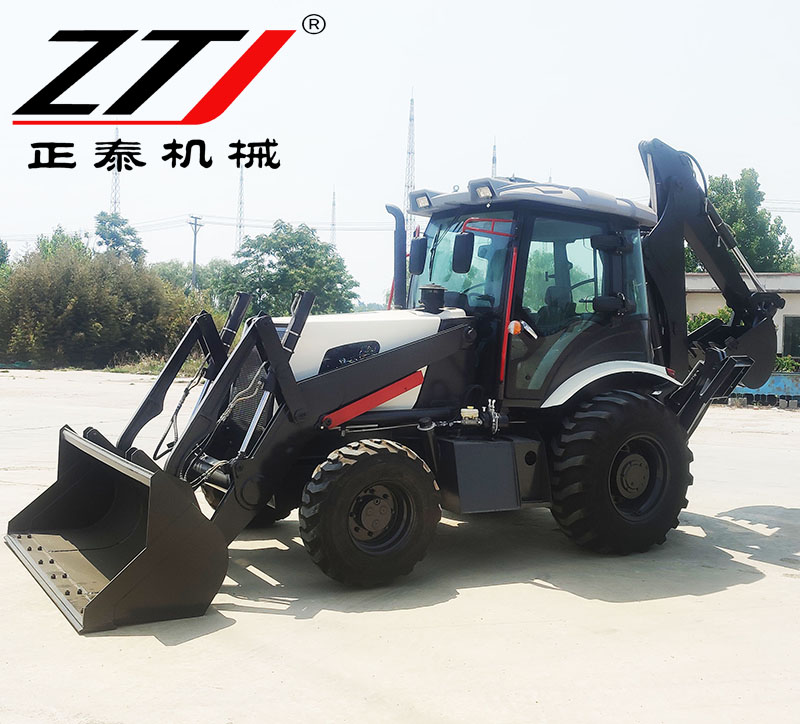

Heavy-Duty Construction Backhoe Loader with Robust Design

Keywords: heavy duty loader, industrial backhoe, rugged excavator, construction machinery, durable equipment

Product Advantages

Reinforced steel chassis withstands heavy-duty operations
>40KN breakout force for challenging excavation tasks
Enhanced suspension system handles rough terrain easily
Sealed components protect against dust and moisture intrusion
High-temperature resistant hydraulic fluid extends system life
Corrosion-resistant coating increases equipment longevity
Comprehensive 72-hour pre-shipment testing protocol

Product Parameters

Item			Unit	Parameter
Backhoe bucket capacity			m3	0.3
Rated loading bucket capacity			m3	1
Rated Lifting Force			KN	>25
Equipment weight			kg	7840
Backhoe parameter	Max. digging radius		mm	5481
	Max. dump height		mm	3737
	Radius at the max. dump height		mm	1084
	Max. digging radius at ground level		mm	5105
	Digging buckets max. rotating angle		º	180
	Max. digging depth		mm	4340
	Max. digging force		KN	50±10%
Loading parameter	Max. dump height		mm	2626
	Dump reach at max. dump height		mm	726
	Bucket draw back angle	Transportation position	º	43.5
		Ground position	º	36.5
	Dump angle		º	43.5
	Digging depth		mm	191
	Max. breakout force		KN	>40
Max. grade ability			º	>30
Max. traction power			KN	70-75
Min. turning radius			mm	4300
Wheelbase			mm	2320
Front wheel track			mm	1910
Rear wheel track			mm	1820
Minimum ground clearance			mm	500
Total length			mm	7100
Total height (Cab)()			mm	2870
Total Width			mm	2730
Bucket width			mm	2300
Digging end bucket width			mm	750
Hydraulic tank			L	155
Diesel tank			L	100
Tire			14-17.5	19.5L-24
Voltage			V	12
Engine			cummins 75kw

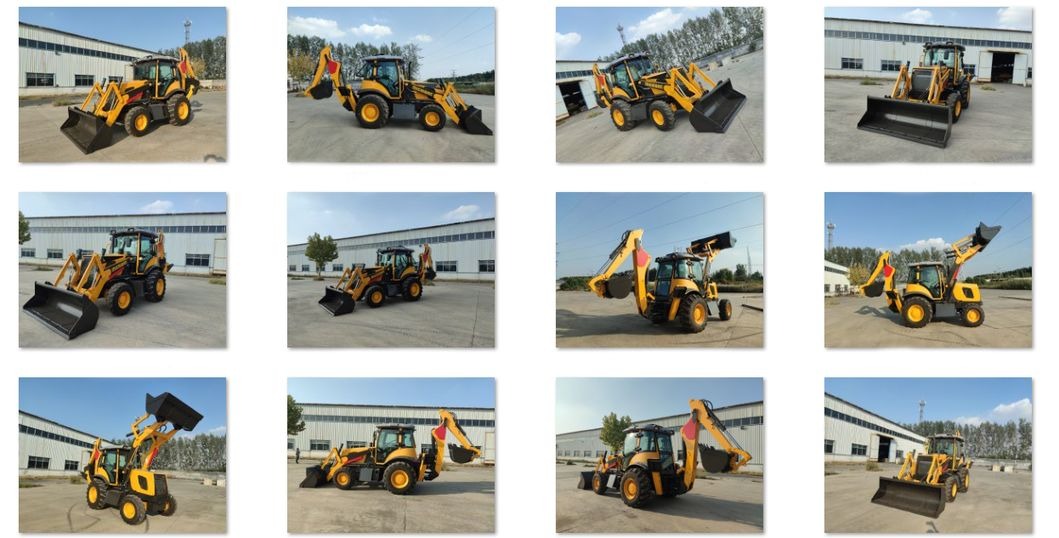

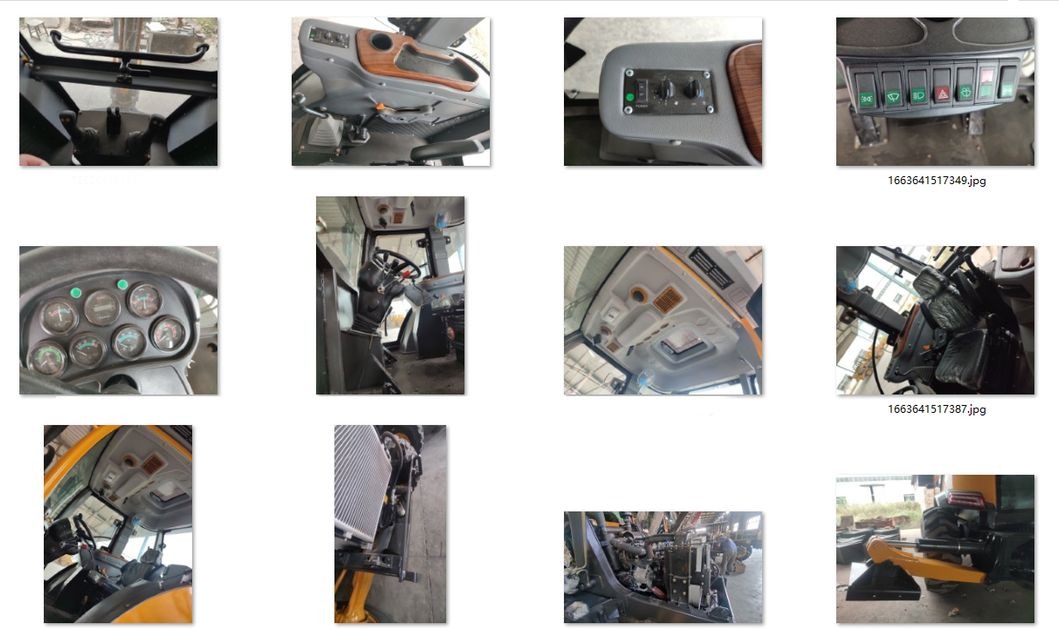

Detailed Photos

详情_003.jpg 详情_002.jpg

Product Description

This industrial-grade backhoe loader is engineered for the toughest construction environments. Built with a reinforced steel frame and heavy-duty components, it consistently delivers >40KN breakout force for demanding excavation work. The machine's robust construction includes a reinforced undercarriage and protected hydraulic lines that withstand abuse on rough job sites.

Durability extends beyond structural components to operational systems. The engine compartment features enhanced air filtration for operation in dusty conditions, while the hydraulic system uses specially formulated high-temperature fluid that maintains viscosity in extreme working environments. The 155L hydraulic reservoir includes integrated cooling channels to maintain optimal operating temperatures during extended work shifts.

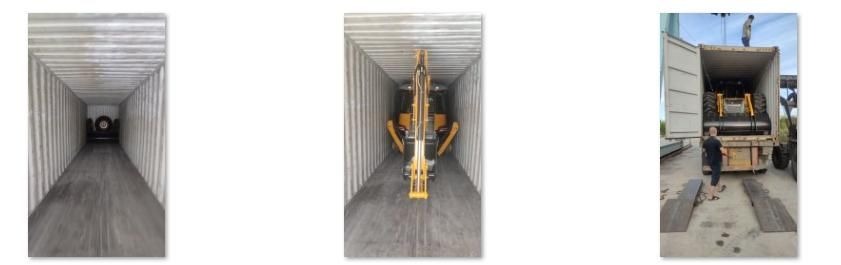

Packaging & Shipping

Container 40HC: Capable of accommodating 2 units with ease
1. Standard packing: While the machine body is not enclosed in packing, it is expertly secured and fastened within the container using robust wire ropes.2. Spare parts or wearing components are meticulously packed in either wooden boxes or sturdy paper cartons.3. Our primary shipping method is via container, ensuring the safe transit of your goods.
