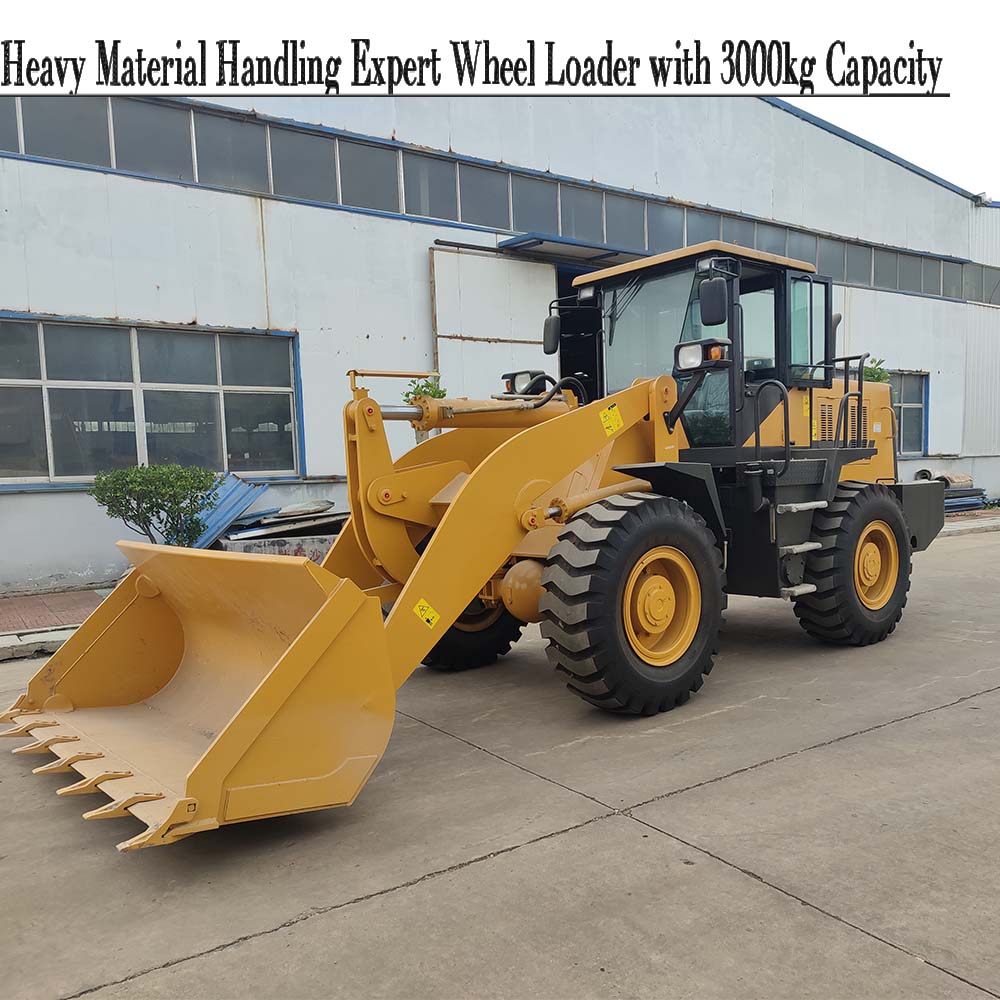

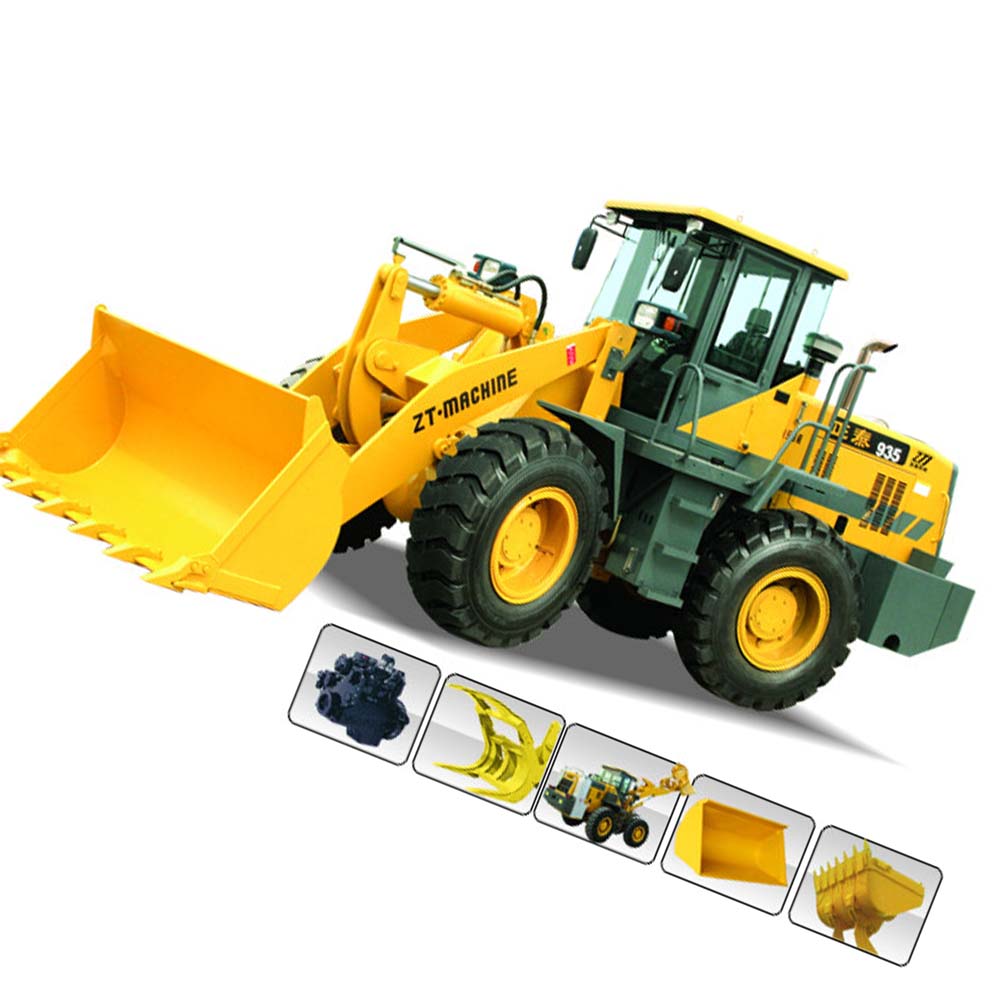

3‑Ton Wheel Loader: Heavy‑Duty Construction Workhorse With Cummins Power
Engineered For Real‑World Complex Working Conditions
As an experienced loader manufacturer with more than 20 years of overseas export experience, we fully understand the pain points faced by global contractors: frequent high‑altitude operation, uneven rugged ground, continuous long‑shift loading cycles, high fuel consumption and difficult spare‑parts procurement. Our 3‑ton wheel loader is purpose‑built to resolve these practical challenges for overseas buyers. Equipped with High‑altitude CUMMINS Engine tuning, this machine maintains stable output under thin‑air mining environments, widely trusted by partners purchasing Chinese construction machinery export products.
Many mid‑size job‑sites need balanced performance instead of oversized expensive heavy machines. This 3‑ton wheel loader delivers powerful breakout force together with compact maneuverability. Buyers gain factory‑direct equipment at genuine factory price, without middleman markup. Complete heavy equipment components stock supports fast after‑sales support for global fleet operators.
Power Your Progress: The 3‑ton Wheel Loader, featuring a 92 kW Cummins engine, 1.7 m³ bucket, and 110 kN breakout force, is engineered for demanding applications. Its fast cycles, automatic bucket leveling, and tight turning radius optimize productivity, while its rugged build ensures stable and safe operation on challenging terrains.
Ready for Anything: Get materials moved quickly with this machine’s exceptional loading/unloading capabilities, ideal for any construction or industrial project. It’s highly adaptable, supporting buckets, forks, and grapples, making it simple to switch between lifting, sorting, and hauling. Constructed for longevity, it’s a reliable solution for demanding jobs.
Packing for Transit: A 40GP container takes one unit. The machine body is fixed in place, not individually packed. Any smaller or replacement parts are boxed. 40HQ Container loading plan is also available upon request for combined shipments with other construction machines. Container shipping is our primary method.
We're Here for You: Customize your products with our OEM program, choosing your brand and color. Spare parts are consistently available. Our offerings include factory tours and third‑party checks. We promise replies within 24 hours. Let us facilitate your machinery purchases as your dedicated agent.
Product Specifications
| Description | Specification |
|---|---|
| Rated load(kg) | 3000 |
| standard bucket capacity（m³） | 1.7 |
| Equipment weight（kg) | 9600 |
| Max.breakout force（kN） | 110 |
| Max.dump height（MM） | 3150 |
| Max.dump reach（MM） | 1150 |
| Discharging Angle（°） | 45 |
| Max.grade ability（°） | 30 |
| Automatic leveling ability | Yes |
| Lifting time（s) | ≤5.6 |
| Total cycle time(lifting, dumping, lowering)（s) | ≤10 |
| steering angle（°） | 35 |
| Min turning radius（MM） | 4800 |
| Wheel base（MM） | 2580 |
| Tread（MM） | 1870 |
| Min.ground clearance（MM） | 417 |
| Overall dimensions (l×w×h)mm（MM） | 7550*2385*3145 |
| travel speed（km/h） | |
| Forward gear I | 0～6.8 |
| II | 0～12 |
| III | 0～23 |
| IV | 0～35 |
| reverse gear I | 0～8.5 |
| II | 0～27 |
| Engine Model | Cummins 6BT5.9‑C125‑II |
| Type | In line, water cooled, four stroke, dir.inject |
| Rated power（kW） | 92 |
Product Details
Client Visit
Frequently Asked Questions
Q1: Factory or trading company?
A: We are a specialized factory that produces and exports construction machinery, including backhoe loaders, wheel loaders, and other custom‑built equipment.
Q2: Payment method?
A: 30% T/T deposit in advance, 70% balance before shipping.
Q3: Delivery time?
A: Within 30 days after deposit. Some models are in stock for quicker dispatch; times vary by order.
Q4: Pre‑shipment inspection?
A: Yes, every machine is fully tested and inspected for quality before leaving the factory.
Q5: Warranty?
A: 1 year or 2000 working hours, parts and labor included.
Q6: Can you support OEM and custom attachment?
A: Yes, OEM branding, custom paint color, buckets, forks and grapple attachments are all supported. As a professional loader manufacturer, we adapt machines for regional working conditions.
Q7: How about spare‑parts supply after export?
A: Core heavy equipment components are kept in stock. We supply spare‑parts together with machine shipment or separate express / sea shipment for after‑sales maintenance.
