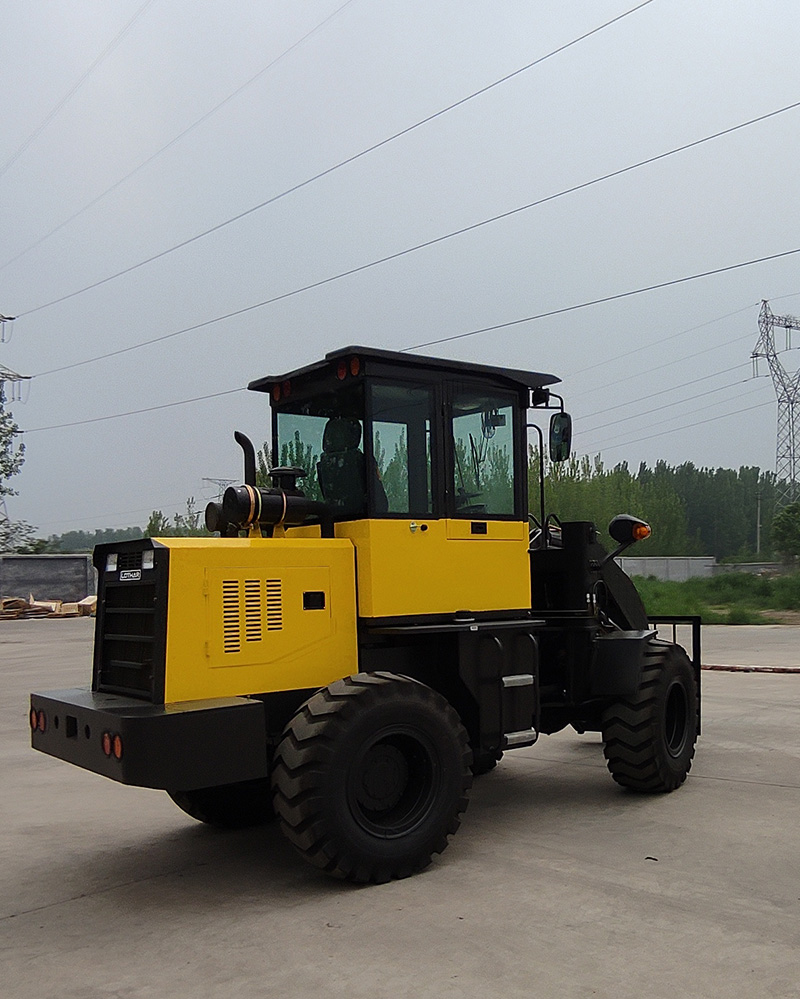

Compact Wheel Loader With Low Maintenance
Heavy Load Capacity – 1500 kg rated load with 0.7 m³ bucket for higher efficiency.
Stable & Durable – 4700 kg weight ensures solid performance in tough jobs.
Efficient Operation – 3210 mm dump height with auto-leveling for faster, cleaner loading.
Flexible Maneuvering – 35° steering and 5060 mm turning radius for tight spaces.
Strong Power – 40 kW Xinchai engine and 35 km/h speed for fast, reliable work.
Good Ground Clearance – 360 mm clearance and compact size for rough terrain.
Adapts to a Wide Range of Operating Temperatures
The ZT926 Wheel Loader is designed for use in various global climate conditions, boasting the ability to adapt to a wide range of operating temperatures. While specific temperature limits are not listed in the specifications, as heavy construction machinery, the ZT926 typically uses cold and heat-resistant materials and components to ensure stable performance in hot summers or cold winters. Optimized engine cooling systems and hydraulic oil cooling systems prevent overheating, while a reliable starting system ensures smooth startup in low-temperature environments. This environmental adaptability makes the ZT926 an ideal choice for global clients, ensuring reliable equipment operation whether your project is located in tropical or cold regions, minimizing downtime caused by extreme weather conditions.
Product Specifications
Description | Specification |
rated load(kg) | 1500 |
Rated bucket capacity（m³） | 0.7 |
Equipment weight（kg) | 4700 |
Max.dump height（MM） | 3210 |
Max.dump reach（MM） | 880 |
Automatic leveling ability | Y |
steering angle（°） | 35 |
Min turning radius（MM） | 5060 |
Wheel base（MM） | 2250 |
Tread（MM） | 1490 |
Min.ground clearance（MM） | 360 |
Overall dimensions (l×w×h)mm（MM） | 5500×1860×2650 |
travel speed（km/h） | |
Forward gear I | 0～9 |
II | 0～35 |
reverse gear I | 0～9 |
II | 0～35 |
Engine Model | Xinchai498 |
Type | Water injection four-stroke inline |
Rated power（kW） | 40 |
Rated speed（rpm） | 2200 |
The voltage(V) | 12 |
