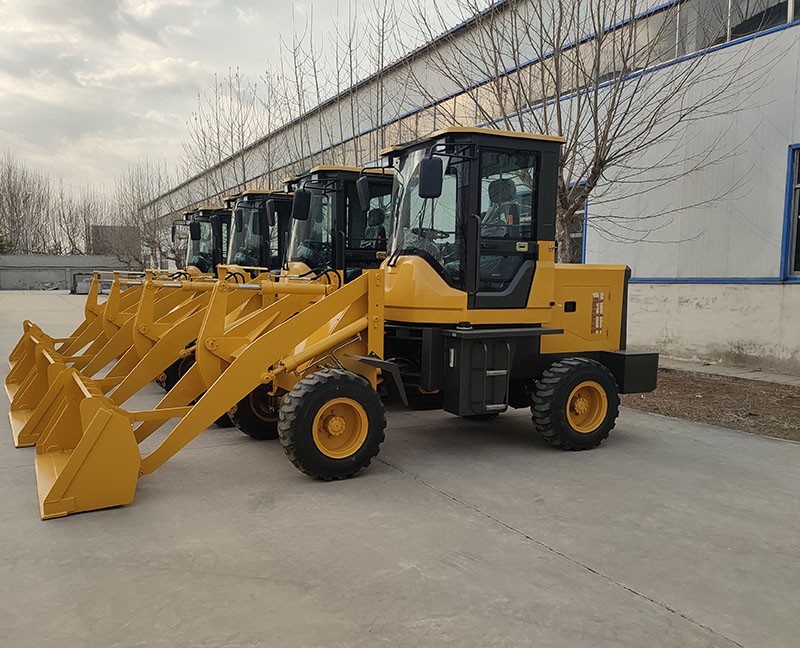

Versatile Wheel Loader For Multiple Uses
High Load Capacity: 1000 kg rated load for heavy-duty construction and industrial use.
Efficient Loading: 0.5 m³ bucket ensures fast loading/unloading and high productivity.
Compact & Agile: 5470×1635×2700 mm — ideal for tight and urban job sites.
Excellent Dump Height: 3960 mm max dump height fits high-sided trucks and containers.
Easy Maneuverability: 35° steering angle, 4800 mm turning radius for narrow space operation.
Powerful & Durable: 32 kW Xinchai490 engine, 12-16.5 tires, 230 mm ground clearance for off-road reliability.
【Job Site Dynamo: ZT916 Wheel Loader, Compact Powerhouse！】
Tired of limited space and inefficient equipment on the job site? This ZT916 wheel loader is your "space efficiency champion"！
💪 High - Performance Specialist:
1000kg capacity + 0.5m³ bucket for fast and powerful material handling, significantly reducing job site cycle times
Compact 5470×1635×2700mm size + 4800mm ultra - small turning radius, navigates tight spaces with ease
3960mm high dump height for seamless truck loading; up to 18km/h travel speed for flexible relocation
🛡️ Durable & Powerful:
3200kg solid weight + 230mm ground clearance, stable and reliable
Water - injection four - stroke inline engine + 12 - 16.5 durable tires, delivering strong power and long - lasting performance
This "space efficiency champion" solves space - related challenges and maximizes material handling efficiency！
Description | Specification |
rated load(kg) | 1000 |
Rated bucket capacity（m³） | 0.5 |
Equipment weight（kg) | 3200 |
Max.dump height（MM） | 3960 |
Max.dump reach（MM） | 840 |
Unloading height(MM) | No teeth 3100 |
With teeth 3020 | |
steering angle（°） | 35 |
Min turning radius（MM） | 4800 |
Wheel base（MM） | 2050 |
Tread（MM） | 1370 |
Min.ground clearance（MM） | 230 |
Overall dimensions (l×w×h)mm（MM） | 5470×1635×2700 |
travel speed（km/h） | |
Forward gear I | 0～6 |
II | 0～18 |
reverse gear I | 0～6 |
II | 0～18 |
Engine Model | Xinchai490 |
Type | Water injection four-stroke inline |
Rated power（kW） | 32 |
Rated speed（rpm） | 2200 |
The voltage(V) | 12 |
