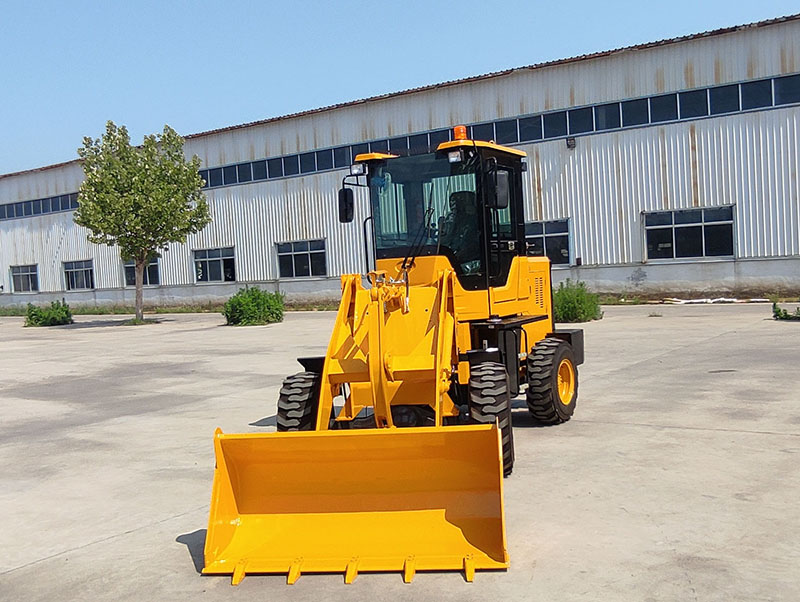

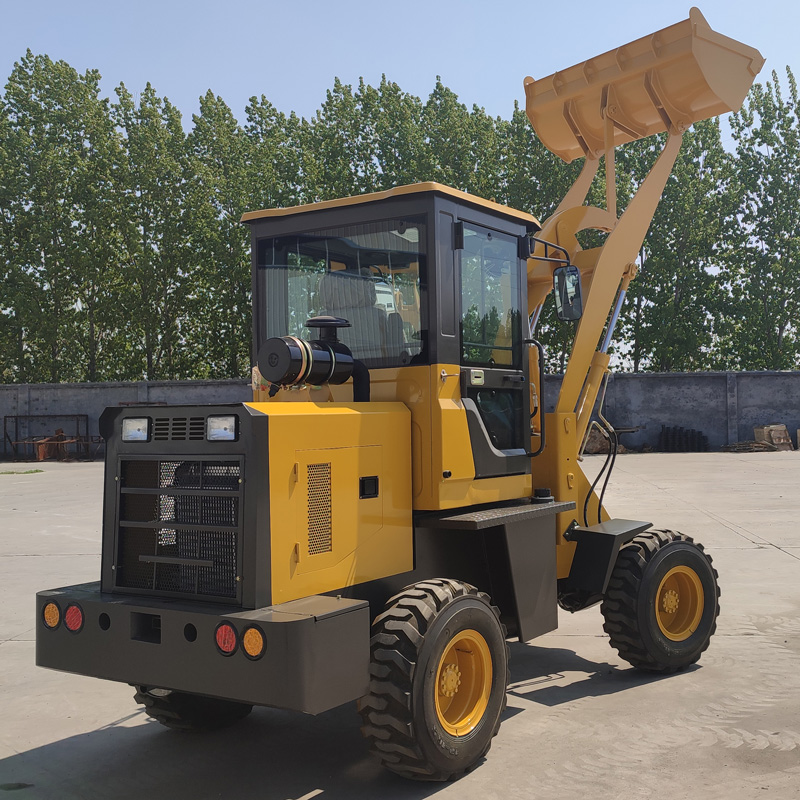

Sturdy Sub Compact Wheel Loader
High Load Capacity: 1000 kg rated load for heavy-duty construction and industrial use.
Efficient Loading: 0.5 m³ bucket ensures fast loading/unloading and high productivity.
Compact & Agile: 5470×1635×2700 mm — ideal for tight and urban job sites.
Excellent Dump Height: 3960 mm max dump height fits high-sided trucks and containers.
Easy Maneuverability: 35° steering angle, 4800 mm turning radius for narrow space operation.
Powerful & Durable: 32 kW Xinchai490 engine, 12-16.5 tires, 230 mm ground clearance for off-road reliability.
Product Introduction
ZT916: Maximize Efficiency in Tight Areas
Boost your productivity with the ZT916 Wheel Loader, engineered for optimal performance in compact settings. It handles materials swiftly thanks to its 1000 kg payload and 0.5 m³ bucket, streamlining your workflow. Navigating congested work zones is a breeze with its nimble footprint and 35-degree steering angle. The loader provides versatile unloading options, reaching a dump height of 3960 mm (or 3100 mm without teeth / 3020 mm with teeth). Mobility is enhanced by flexible travel speeds reaching 18 km/h. Constructed for durability, the 3200 kg ZT916 features a robust build with excellent stability, supported by its 230 mm ground clearance. Its powerful, efficient water-injection inline engine ensures reliable operation, while 12-16.5 tires provide solid traction in diverse conditions.
Description | Specification |
rated load(kg) | 1000 |
Rated bucket capacity（m³） | 0.5 |
Equipment weight（kg) | 3200 |
Max.dump height（MM） | 3960 |
Max.dump reach（MM） | 840 |
Unloading height(MM) | No teeth 3100 |
With teeth 3020 | |
steering angle（°） | 35 |
Min turning radius（MM） | 4800 |
Wheel base（MM） | 2050 |
Tread（MM） | 1370 |
Min.ground clearance（MM） | 230 |
Overall dimensions (l×w×h)mm（MM） | 5470×1635×2700 |
travel speed（km/h） | |
Forward gear I | 0～6 |
II | 0～18 |
reverse gear I | 0～6 |
II | 0～18 |
Engine Model | Xinchai490 |
Type | Water injection four-stroke inline |
Rated power（kW） | 32 |
Rated speed（rpm） | 2200 |
The voltage(V) | 12 |
