Fuel Efficient Mining Equipment
Powerful & Versatile Underground Loader - Built for Demanding Mining Operations
1. Superior Loading Capacity
✔ 3,000kg Rated Load - Handles heavy materials with ease, maximizing productivity
✔ 1.7m³ Large Bucket Capacity - Moves more material per cycle, reducing operational time
2. Unmatched Maneuverability
✔ 40° Steering Angle + 5,555mm Turning Radius - Exceptional agility in tight underground spaces
✔ Compact Dimensions (6.7m x 2.25m) - Fits comfortably in narrow tunnels and confined work areas
3. Heavy-Duty Construction
✔ 9,600kg Robust Frame - Withstands harsh mining conditions and heavy impacts
✔ 380mm High Ground Clearance - Navigates rough terrain and obstacles effortlessly
4. Powerful Performance
✔ 92kW High-Torque Engine - Delivers reliable power for continuous operation
✔ 2-Speed Transmission (0-35km/h) - Optimized for both precision work and efficient transport
5. Operator-Focused Design
✔ 2,850mm Max Dump Height - Perfectly matches standard mining trucks for easy loading
✔ 960mm Extended Dump Reach - Provides greater flexibility in material placement
6. Low-Cost Operation
✔ Fuel-Efficient Engine - Reduces running costs without sacrificing power
✔ Easy Maintenance Access - Minimizes downtime and service expenses
【3T Tunnel Loader: Your Underground Expert Partner】
This 3-ton expert is tailor-made for underground mining and tunneling！It navigates tight spaces effortlessly, hoists heavy loads with lightning-fast hydraulic response — controls feel like playing a game！As a leading backhoe loader manufacturer based in Tai’an, Shandong, we bring 20 years of Chinese construction machinery export experience to design this tunnel loader that perfectly meets the demands of underground operations. Our factory direct supply model ensures you get premium quality at an unbeatable factory price, with reliable heavy equipment components that stand up to harsh underground conditions.
Built with the ruggedness of a tank and optimized for minimal maintenance, this 3T tunnel loader delivers exceptional durability and cost efficiency for your underground projects. The compact articulated design allows it to maneuver through narrow tunnel passages with ease, making it the ideal choice for mining, tunnel construction, and underground engineering projects worldwide. Every structural component is forged in our Shandong manufacturing base using high-grade materials and precision welding technology.

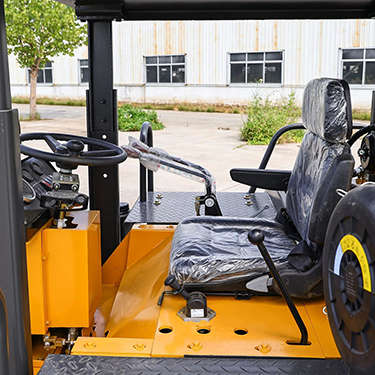

Cab Comfort: Ergonomic throne + smart controls keep operators fresh all shift. The operator-centric cab design reduces fatigue during long shifts, with intuitive controls that make operation smooth and effortless. The enhanced visibility design ensures safe operation in confined underground spaces, while the reinforced structure provides maximum protection for operators. This perfect combination of comfort, control, and safety makes our tunnel loader stand out in the underground construction equipment market.
Built like a tank + minimal maintenance = pure profit！Our engineering team has focused on reducing downtime and maintenance costs, with easily accessible service points and durable components that require less frequent replacement. The universal heavy equipment components ensure quick and affordable repairs, while the powerful Luotuo 6108 engine delivers reliable performance with lower fuel consumption. This translates directly to higher profits and better return on investment for your business.
Custom solutions to conquer your underground challenges！We understand that every underground project has unique requirements, which is why our Shandong factory offers fully customized solutions for our 3T tunnel loaders. Whether you need specialized attachments, enhanced safety features, or performance modifications, our experienced engineering team can tailor the machine to your exact specifications. With 20 years of export experience, we have successfully delivered customized tunnel loaders to clients in over 60 countries, earning a reputation as a trusted Chinese construction machinery export partner.
（Contact us today for a productivity upgrade！）
Product Parameters
| Rated load capacity (kg) | 3000 | Bucket width (mm) | 2440 |
| Bucket capacity (m3) | 1.9 | Wheelbase (mm) | 1800 |
| Unloading height (mm) | 2730 | Wheelbase (mm) | 2615 |
| Unloading distance (mm) | 930 | Work quality (kg) | 9700 |
| Tipping load (kg) | 6000 | Minimum ground clearance (mm) | 380 |
| Running speed: (km/h) | go ahead | 10 in first gear; 35 in second gear | |
| Back | 6 in first gear; 10 in second gear | ||
| Maximum traction force (KN) | 70 | Breakout force (KN) | 120 |
| Maximum grade(%) | 25 | steering method | Articulated steering |
| Passing capacity outer radius (mm) | 5550 | Passing capacity inner radius (mm) | 3750 |
| Maximum steering angle of vehicle body (°) | 40 | ||
| Overall dimensions (mm) | long | 5880 | |
| Width | 2440 | ||
| high | 2550 | ||
| Drive mode | four-wheel drive | Working device action time (s) | ≤12 |
| Start mode | electric start | Diesel engine location | Rear |
| Diesel engine model | Luotuo 6108 | Diesel engine power | 92Kw |
| Braking form: | Braking method | wet brake | |
| Hand brake | Central wet brake | ||
| Dumping method | Unloading | ||
| Front and rear drive axle | Shandong Yunyu | ||
| tire | 17.5-25 | ||
All parameters of our 3T Tunnel Loader are rigorously tested and certified in our Tai'an, Shandong testing facility, ensuring compliance with international quality and safety standards. As a reputable backhoe loader manufacturer with 20 years of Chinese construction machinery export history, we maintain strict quality control over every heavy equipment component used in our machines. The comprehensive specifications are engineered to deliver optimal performance in underground environments, with the perfect balance of power, maneuverability, and durability.

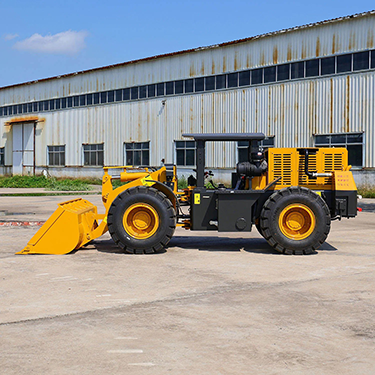

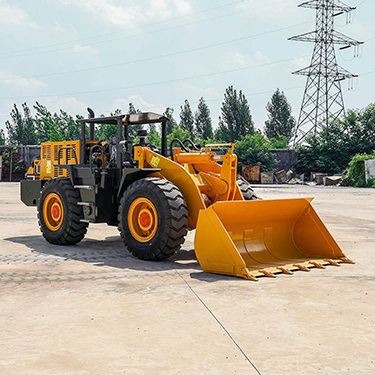

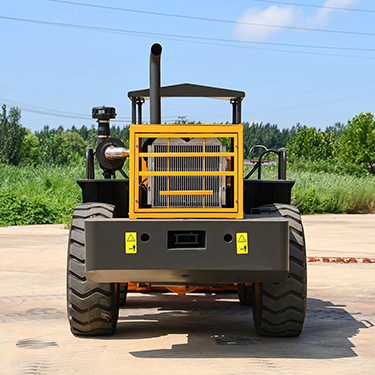

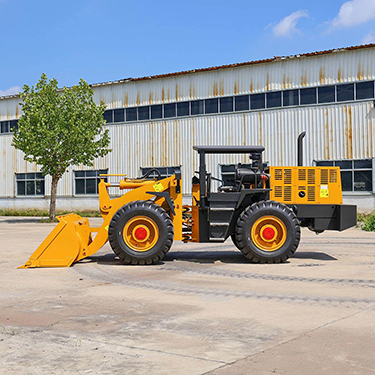

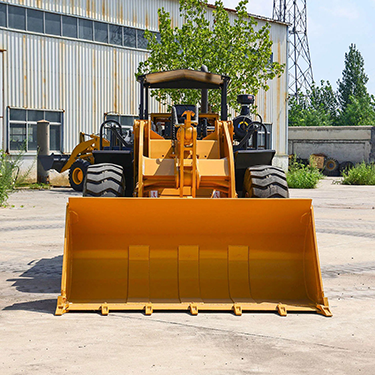

Detailed Photos
Our detailed photos showcase the superior craftsmanship and robust construction of our 3T Tunnel Loader, manufactured at our state-of-the-art Shandong factory. Every aspect of the machine, from the heavy-duty frame to the precision hydraulic systems, reflects our commitment to quality as a leading backhoe loader manufacturer. The images highlight the ergonomic design, durable heavy equipment components, and specialized features that make our tunnel loader the preferred choice for underground mining operations worldwide.
Company Profile
Based in Tai'an, Shandong, we are a premier backhoe loader manufacturer and Chinese construction machinery export specialist with 20 years of industry experience. Our modern manufacturing facility spans over 50,000 square meters, equipped with advanced production equipment and stringent quality control systems to ensure every machine meets international standards. We specialize in the design, production, and export of high-quality tunnel loaders, wheel loaders, and other construction equipment, with our products sold to more than 80 countries and regions worldwide.
As a factory direct supplier, we offer competitive factory pricing without compromising on quality, making us the preferred partner for businesses seeking reliable construction equipment. Our team of skilled engineers and technicians continuously innovates to develop products that meet the evolving needs of the global market, with a particular focus on underground construction equipment. We source only premium heavy equipment components from trusted suppliers, ensuring the durability and performance of our machines in the most demanding working conditions.
Our 20 years of Chinese construction machinery export experience has given us invaluable insights into international market requirements and standards. We provide comprehensive after-sales support, including technical assistance, spare parts supply, and maintenance services, to ensure our customers maximize the lifespan and performance of their equipment. Whether you're a small contractor or a large mining corporation, we have the expertise and resources to provide you with the perfect tunnel loader solution at the best possible price.
