Compact 4WD Mining Loader with 38° Steering Angle for Narrow Tunnels
Product Keywords
compact mining loader
narrow tunnel equipment
high maneuverability loader
mining dump loader
Designed for confined spaces, the ZT926 boasts an unmatched 38° steering angle and tight 3200mm inside turning radius. The central wet brake system ensures reliable stopping power during downhill operations, while the 2441mm wheelbase provides exceptional stability when handling 2-ton loads. With 930mm dumping distance, operators can precisely position materials without repositioning the machine.
Product Details
This compact mining loader combines power and agility with its 60kW rear-mounted diesel engine and four-wheel drive configuration. The 1980mm bucket width optimizes load capacity while maintaining accessibility in narrow tunnels. Key features include a 3100mm maximum lifting height for loading standard haul trucks and a 10-second work cycle time for high productivity. The 6000kg operating mass and 3650kg tip load capacity ensure stability during intensive operations. Operators benefit from the dual-range transmission (forward 10/24km/h, reverse 5/10km/h) and 25% gradeability for versatile performance across various mine levels.
Technical Specifications
| Parameter | Specification |
|---|---|
| Inside Turning Radius | 3200 mm |
| Maximum Steering Angle | 38° |
| Dumping Distance | 930 mm |
| Operating Mass | 6000 kg |
| Gradeability | 25% |
Product Parameters
| English Project | English Value/Description |
| Rated Load Capacity(kg) | 2000 |
| Bucket Width (mm) | 1980 |
| Dumping Height (mm) | 1700 |
| Wheelbase (mm) | 2441 |
| Dumping Distance (mm) | 930 |
| Operating Mass(kg) | 6000 |
| Tip Load(kg) | 3650 |
| Minimum Ground Clearance(mm) | 320 |
| Operating Speed(km/h) | Forward: 1st gear 10; 2nd gear 24 |
| Reverse: 1st gear 5; 2nd gear 10 | |
| Maximum Traction Force(kN) | 38 |
| Maximum Gradeability(%) | 25 |
| Lifting Force(kN) | 45 |
| Outside Turning Radius(mm) | 3850 |
| Inside Turning Radius(mm) | 3200 |
| Maximum Body Turning Angle(°) | 38 |
| Maximum Machine Height During Hoisting(mm) | 3100 |
| Overall Dimensions(mm) | Length: 5420 |
| Width: 1980 | |
| Height: 2065 | |
| Drive Type | Four-wheel Drive |
| Working Device Action Time(s) | ≤10 |
| Starting Method | Electric Start |
| Diesel Engine Location | Rear-mounted |
| Diesel Engine Model | Luotuo 4108 |
| Diesel Engine Power | 60kW |
| Brake Type | Manual Brake |
| Central Wet Brake | |
| Tires | 16/70-20 |

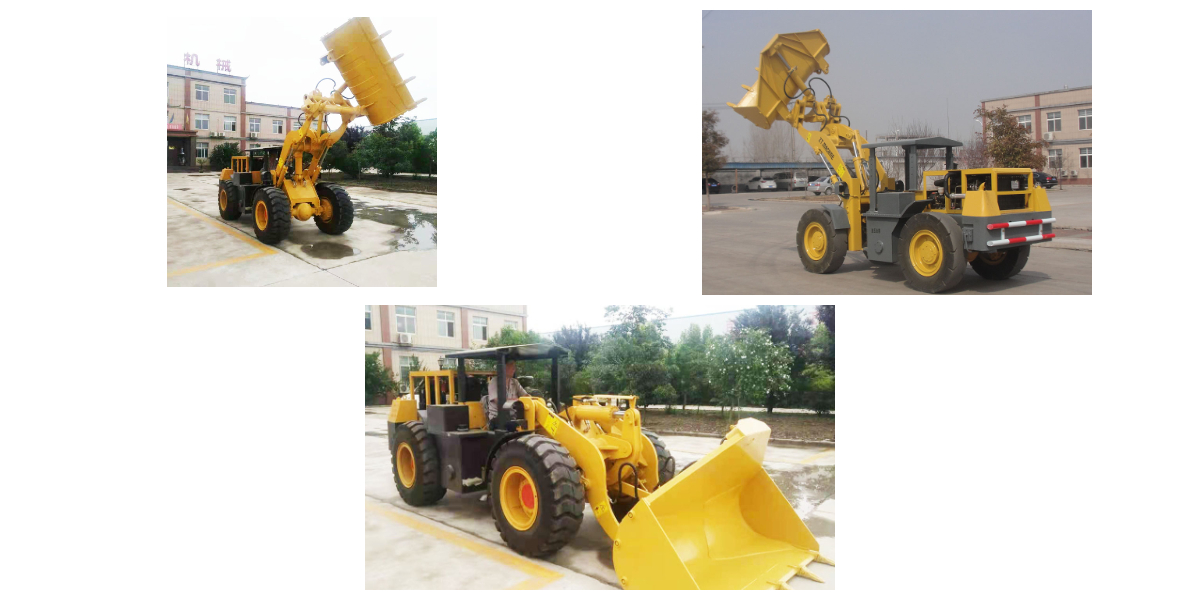

Detailed Photos
