1.5 to 4 Ton Underground Wheel Loader

Known as the mine's "Tough Little Beast," it combines compact body with powerful performance for heavy loads, limited spaces and complex mining conditions.

- Power: 60kW Luotuo 4108 diesel engine, stable for high-load continuous work.

- Load: 2000kg rated load, 1.7m³ bucket, 45kN digging force & 38kN traction for heavy materials.

- Efficiency: ≤10s work cycle, 24km/h forward speed, high productivity.

- Passability: 320mm ground clearance, 25% gradeability, adapts to potholes/ramps.

- Flexibility: 38° articulated steering, small turning radius (3850mm/3200mm) for narrow spaces.

- Stability: Full-time 4WD, anti-slip on muddy ground.

- Durability: High-strength frame, rear-mounted engine for long service life.

- Adaptability: 1980mm bucket, 1700mm dumping height, matches transport vehicles.

Contact Now E-Mail Telephone WhatsApp

Product Details

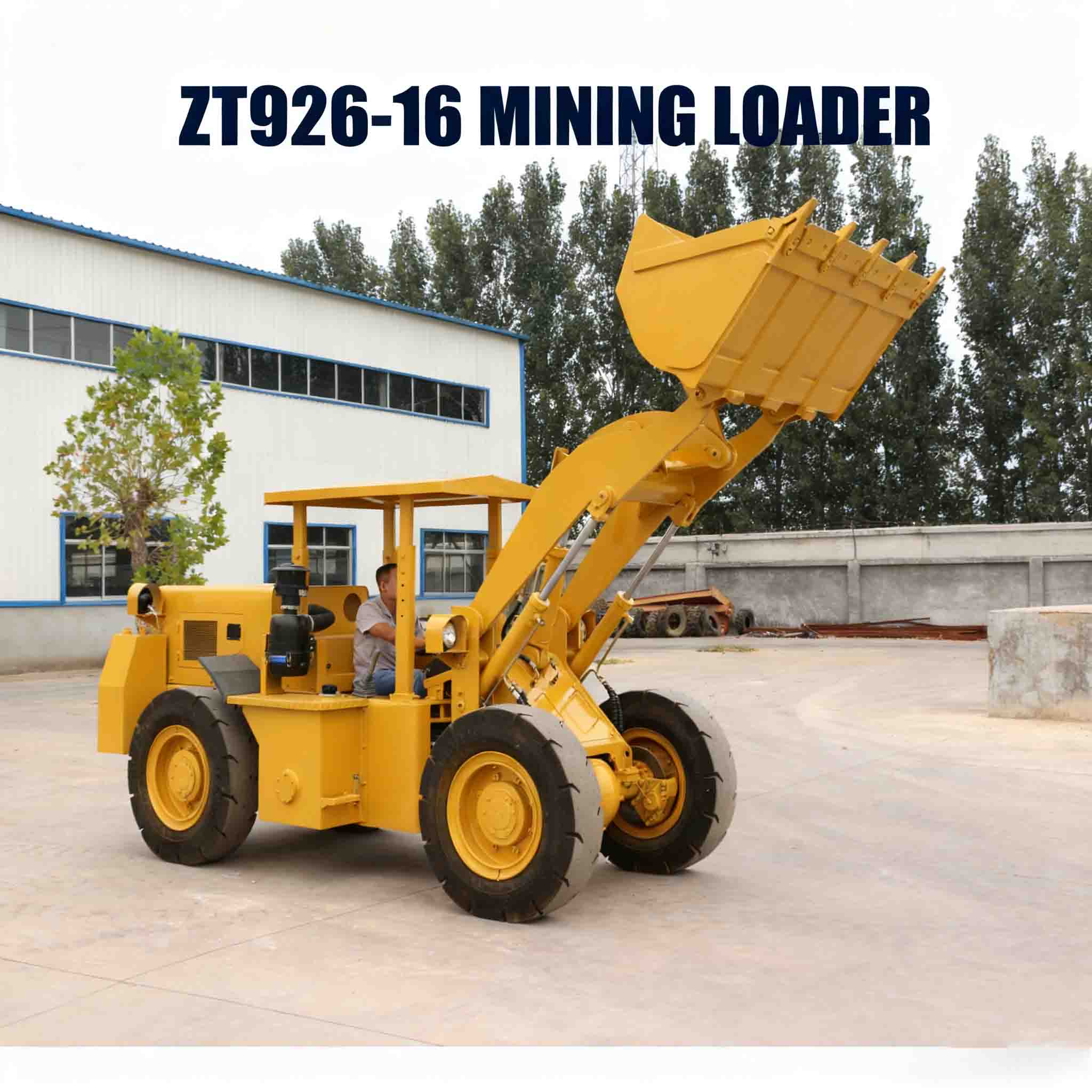

ZT926-16 Wheel Loader

The 2000kg Beast That Turns Dirt into Done

Looking for a loader that doesn't just work—it dominates? Meet the ZT926-16. With a 2000kg rated load, this beast laughs at heavy lifting. Its 1980mm bucket swallows materials like a hungry hippo. Dumping height? 1700mm—high enough to feed even the pickiest trucks.

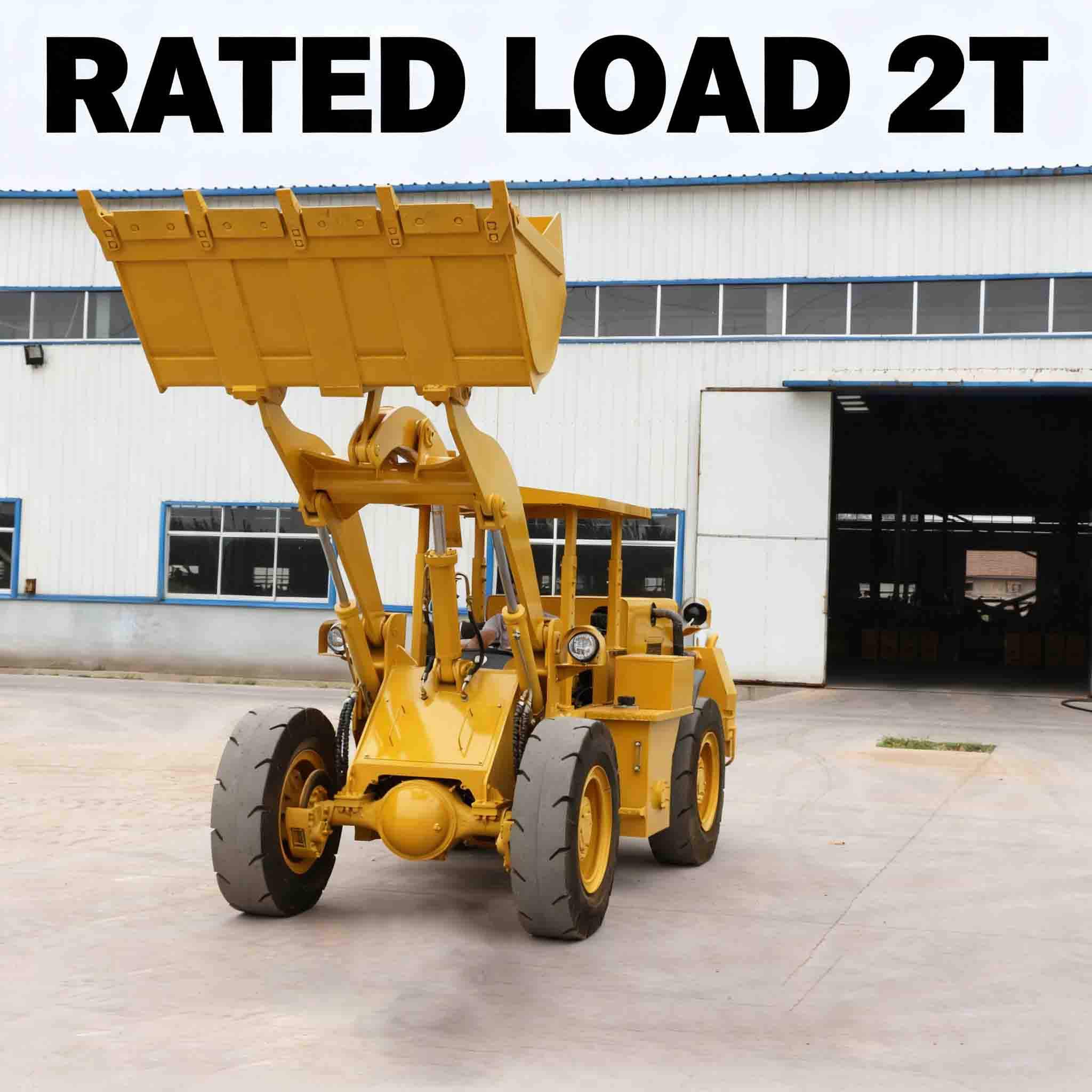

Rated Load Capacity

2000 kg

Bucket Width

1980 mm

Dumping Height

1700 mm

Wheelbase

2441 mm

Dumping Distance

930 mm

Operating Mass

6000 kg

Tip Load

3650 kg

Minimum Ground Clearance

320 mm

Performance Features

Four-wheel drive? Check. 38kN traction force? You'll climb 25% grades like they're speed bumps.
The Luotuo 4108 engine cranks out 60kW, so you'll zip along at 24km/h (forward, 2nd gear—reverse is for when you need to back up... slowly).
Operating mass? 6000kg of pure "get stuff done" energy.
Ground clearance? 320mm—no more getting stuck in the muck.
Whether you're mining, building, or just showing off, the ZT926-16 is the loader that turns "I need that done" into "Done. What's next?"
