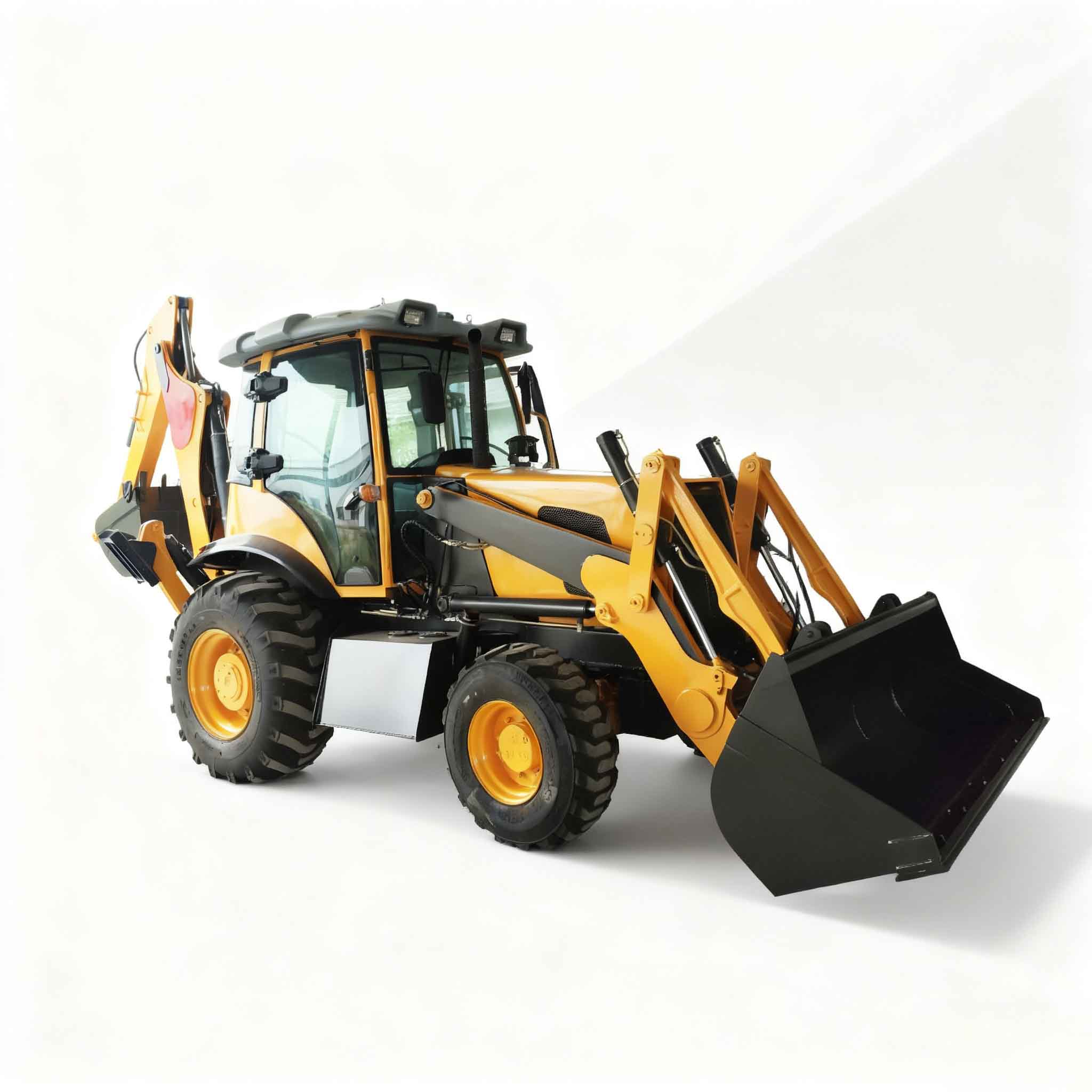

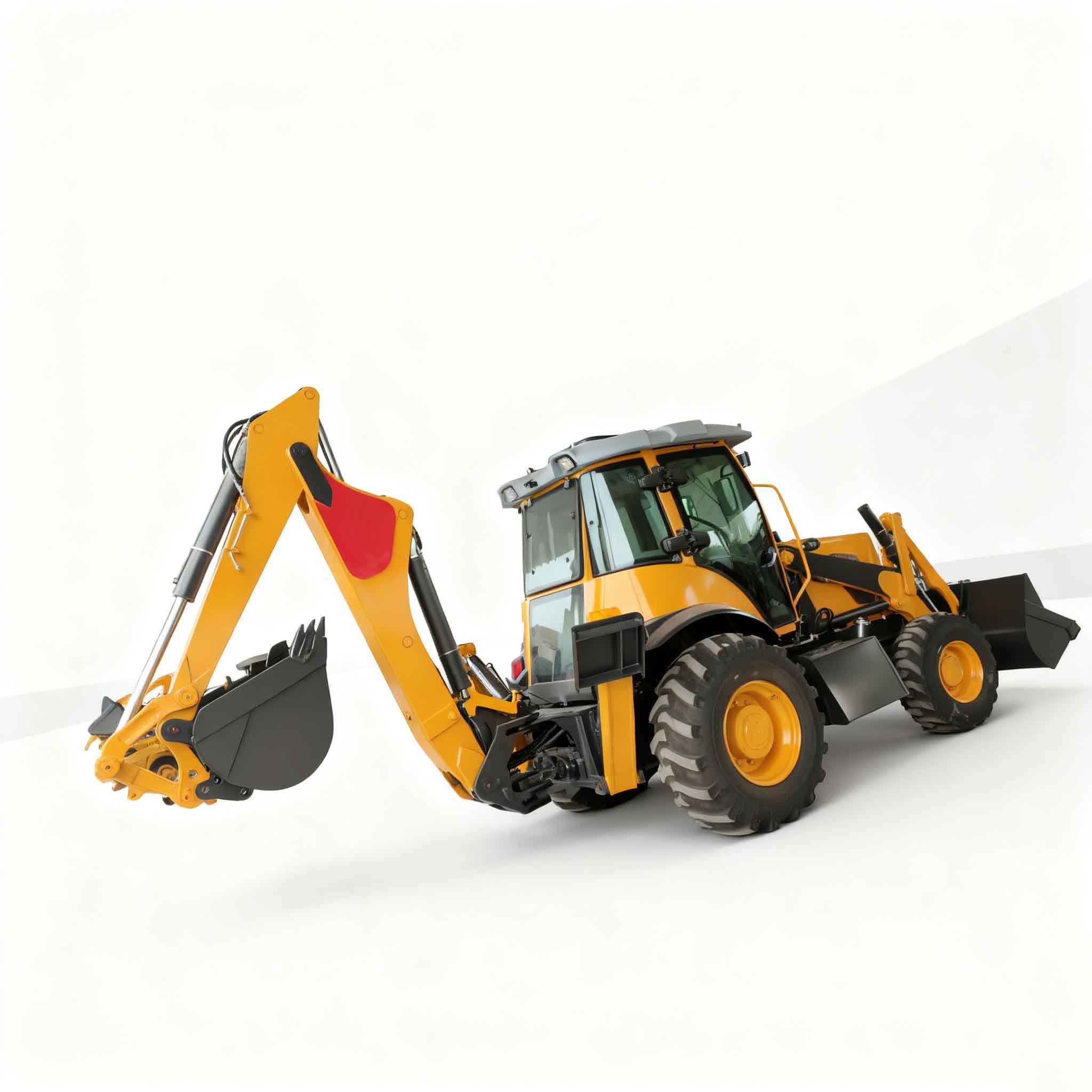

ZTW30-25 Backhoe Loader — Engineered for Heavy-Duty Performance
Cummins Power · 75 kW Output · 7.8-Ton Versatile Heavyweight
Driven by a genuine Cummins engine and built on a high-strength steel framework, the ZTW30-25 is a robust solution for demanding job sites. Its 75 kW powerplant transforms this 7.8-ton machine into an agile workhorse designed to handle tough terrain and steep inclines with exceptional efficiency.

Over Two Decades of Export Expertise, Built for Dual-Function Productivity
As an established construction equipment manufacturer with more than 20 years of global trade experience, Taian Zhengtai (ZT MACHINE) has supplied reliable backhoe loaders to municipal, construction, and utility contractors across more than 60 nations. The ZTW30-25 was specifically engineered to fulfill a core industry requirement: merging the functions of an excavator and a wheel loader into a single, road-transportable unit optimized for 40HQ container shipping.
Global procurement specialists frequently question how a 7.8-ton vehicle achieves both a 4,340 mm maximum excavation depth and a 1 m³ loading capacity without performance compromises. The ZTW30-25 accomplishes this via a reinforced articulated frame, a 4-cylinder 75 kW Cummins engine, and an expansive fluid setup featuring a 155 L hydraulic reservoir and a 100 L diesel tank, supporting extended working hours without frequent refueling interruptions.
Operational output is outstanding on both ends. The front loader delivers over 40 kN of breakout force utilizing a 1 m³ bucket and a 2,626 mm dump height for swift hauling and truck loading. Meanwhile, the rear digging attachment exerts 50 kN of breakout force with a 0.3 m³ bucket, a 5,481 mm maximum reach, and a 4,340 mm maximum digging depth, facilitating deep trenching and foundation work without constant machine repositioning.
Mobility sets the ZTW30-25 apart from traditional tracked machinery. Featuring a 4,300 mm minimum turning radius, 30-degree gradeability, and 70–75 kN of tractive effort, it drives independently between work zones, navigates narrow urban sites, and climbs muddy slopes while fully loaded. Every structural assembly—from heavy-duty loader arms to robust wet-brake axles—utilizes verified heavy-duty components built for continuous operation.
Our direct factory supply strategy eliminates intermediary markups, offering maximum value to contractors, rental operators, and municipal buyers. We accommodate full OEM branding, custom color finishes, and independent pre-shipment inspections (such as SGS or BV). Fast-moving spare parts—including wet brake elements, filters, hydraulic lines, and specialized tires—are dispatched in secure wooden crates within 24 hours of urgent inquiries.
Why do global contractors prefer the ZTW30-25? Because it resolves multiple operational challenges simultaneously: high equipment acquisition costs, cumbersome transport logistics, urban spatial limitations, and the inefficiency of switching between separate loading and digging assets. Backed by extensive manufacturing expertise, it is meticulously designed for modern civil projects.
Key Operational Advantages
70–75 kN Tractive Force: Superior grip and pushing power in adverse mud conditions.
30° Gradeability: Conquers steep slopes and inclines with complete stability.
4.3 m Turning Radius: Exceptional agility for restricted and confined spaces.
Enhanced Workhorse Performance
Front Loader: Exceeds 40 kN breakout force paired with a 1 m³ bucket for rapid material handling.
Backhoe Attachment: Delivers 50 kN digging power and 4.3 m depth for professional basement and utility operations.
Endurance Build: Combines a 155 L hydraulic tank and a 100 L diesel reservoir for sustained, high-intensity shifts.
Guaranteed ZT Machinery reliability. Contact our sales team for direct technical documentation and inquiries.
📊 Technical Specifications
| Item | Unit | Parameter | |||
| Backhoe bucket capacity | m³ | 0.3 | |||
| Rated loading bucket capacity | m³ | 1 | |||
| Rated Lifting Force | KN | >25 | |||
| Equipment weight | kg | 7840 | |||
| Backhoe parameter | Max. digging radius | mm | 5481 | ||
| Max. dump height | mm | 3737 | |||
| Radius at the max. dump height | mm | 1084 | |||
| Max. digging radius at ground level | mm | 5105 | |||
| Digging buckets max. rotating angle | º | 180 | |||
| Max. digging depth | mm | 4340 | |||
| Max. digging force | KN | 50±10% | |||
| Loading parameter | Max. dump height | mm | 2626 | ||
| Dump reach at max. dump height | mm | 726 | |||
| Bucket draw back angle | Transportation position | º | 43.5 | ||
| Ground position | º | 36.5 | |||
| Dump angle | º | 43.5 | |||
| Digging depth | mm | 191 | |||
| Max. breakout force | KN | >40 | |||
| Max. grade ability | º | >30 | |||
| Max. traction power | KN | 70-75 | |||
| Min. turning radius | mm | 4300 | |||
| Wheelbase | mm | 2320 | |||
| Front wheel track | mm | 1910 | |||
| Rear wheel track | mm | 1820 | |||
| Minimum ground clearance | mm | 500 | |||
| Total length | mm | 7100 | |||
| Total height (Cab) | mm | 2870 | |||
| Total Width | mm | 2730 | |||
| Bucket width | mm | 2300 | |||
| Digging end bucket width | mm | 750 | |||
| Hydraulic tank | L | 155 | |||
| Diesel tank | L | 100 | |||
| Tire | 14-17.5 | 19.5L-24 | |||
| Voltage | V | 12 | |||
| Engine | cummins 75kw | ||||
📸 Detailed Photos




📦 Packaging & Shipping
Packing & Delivery — Container 40HQ: Accommodates 2 Complete Units
Standard preparation: Main machine assemblies are shipped unbundled and securely fastened inside containers using heavy-duty steel wire ropes.
Consumables and spare components are safely packed in protective wooden crates or robust cartons.
Primary shipping methodology relies on secure intermodal container logistics.



❓ Frequently Asked Questions
Q1: Are you a direct manufacturing facility or a commercial trader?
We are an experienced loader manufacturer with over two decades of production and global export background. Our facilities are situated in Tai'an, Shandong, encompassing integrated departments for research, fabrication, coating, and final assembly without external outsourcing.
Q2: How is quality controlled prior to dispatch?
Every ZTW30-25 unit undergoes rigorous functional and continuous load evaluations spanning the Cummins powertrain, hydraulic circuits, both loader/backhoe subsystems, and wet-disc axle assemblies.
Q3: What logistics and container configurations are utilized?
A standard 40HQ container securely houses two complete units. The main chassis is anchored with industrial wire cables while replacement parts are boxed separately. We manage comprehensive routing from our factory floor to the destination port.
Q4: What after-sales assistance and parts availability do you provide?
We maintain an extensive inventory of replacement components, including wet brake hardware, filtration units, hydraulic tubing, and tires. Urgent requirements benefit from dispatch within a 24-hour window, alongside remote diagnostic troubleshooting and video technical support.
Q5: Do you support custom OEM specifications and branding?
Yes, entirely. We offer tailored visual branding, specialized coating options, and diverse attachment selections (such as augers, hydraulic breakers, pallet forks, and alternate buckets) to match specific project parameters.
