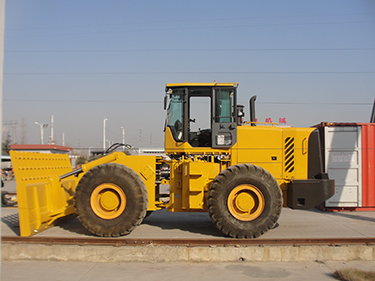

High Capacity Compactor For Landfill Waste
Powerful Performance: 162 kW WEICHAI engine & 21,000 kg operating weight for heavy-duty tasks.
Flexible Speed: Multiple modes with max speed of 15.7 km/h for varied job needs.
Efficient Shovel: 3350 mm wide blade, 980 mm lift height for fast material handling.
Smooth Maneuverability: Hydraulic steering with 40° turning angle for tight workspaces.
Reliable Braking: Pneumatic + mechanical brakes ensure safe, stable stops.
Versatile Design: 280 mm ground clearance & customizable axle/engine options for different terrains and tasks.
ZT. MACHINE 821: Engineered for Low Operating CostsThe ZT. MACHINE 821 Landfill Compactor is engineered for remarkably low operating costs. This 21-ton machine, driven by a 162kW Weichai engine, combines powerful compaction with exceptional fuel efficiency. Its robust construction ensures minimal maintenance, significantly reducing downtime and expenses. Operators will find its controls highly intuitive, simplifying daily tasks. As an ISO9001 certified product from Taian Zhengtai, the ZT821 offers premium quality. For convenient worldwide shipping, it is optimally sized for a 40HQ container.
Product Specifications
Description | Specification | ||
Equipment weight | kg | 21000 | |
Dimensions | long | mm | 7000 |
Wide (pushing shovel) | mm | 3350 | |
Wide (outside of the front wheel) | mm | 3350 | |
Wide (outside of the rear wheel) | mm | 3350 | |
high | mm | 3530 | |
Wheelbase | mm | 2750 | |
Ground clearance | mm | 280 | |
wheel | Pressure roller width (front/rear) | mm | 900 |
Pressure roller diameter (front/rear, out of the tooth) | mm | 1600 | |
Pressure roller diameter (front/rear, out-of-wheel) | mm | 1290 | |
Number of teeth (front/rear) | 个 | 64 | |
Motion transfer system | Engine manufacturer | WEICHAI | |
model | WD10G220E23 | ||
Engine power | kw | 162 | |
Engine speed | r/min | 2000 | |
Electrical System | V | 24 | |
Number of driving wheels | 4 | ||
speed | front I 0-4.2 | km/h | |
front II km/h 0-15.7 | km/h | ||
rear km/h 0-5.8 | km/h | ||
Push shovel | Pusher height | mm | 1880 |
Push shovel width | mm | 3350 | |
Pusher lift height | mm | 980 | |
Push shovel into the ground | mm | 150 | |
Braking System | Driving brake, pneumatic oil | ||
Parking/emergency brake machinery, uplift brake | |||
steering system | Steering mode Hydraulic, central articulated, sub-pendulum swing | ||
±° 40 Steering angle ±° 40 | |||
±° 15 Lateral swing angle ±° 15 | |||
Turning radius (outside of the front wheel) mm 6085 | |||
Optional | |||
Standard configuration ordinary axle+two-stage emission engine | |||
Wet brake bridge+three stage emission engine | |||
