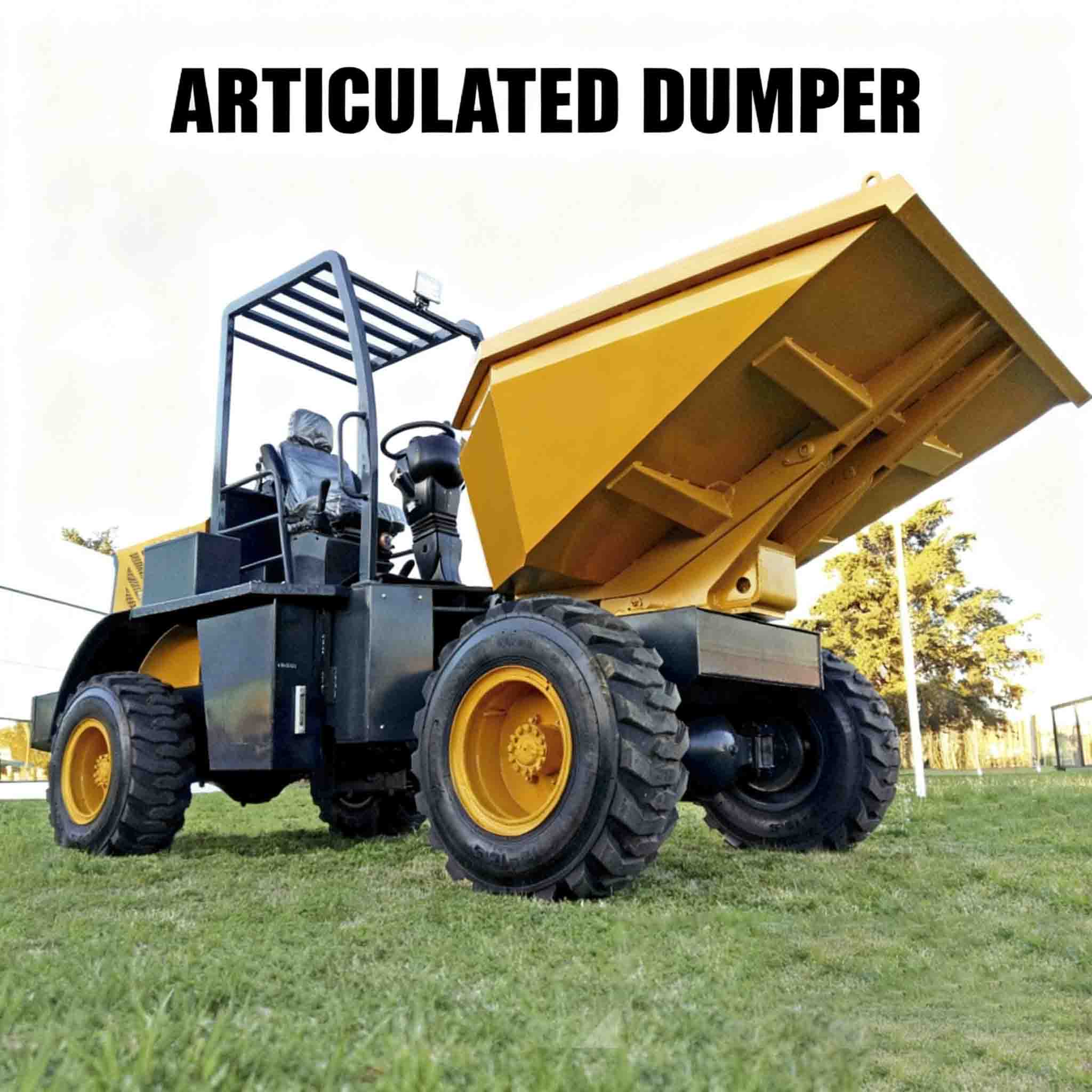

Compact Site Dumper 1500kg
1500 kg Load & Fast Lift: Lifts up to 1500 kg in just 3.5 seconds, max height 1600 mm.
Strong Engine: Xinchai 490, 32 kW (42 hp), 156 Nm torque.
Efficient Hydraulics: 16 MPa system for smooth lifting and digging.
Compact & Agile: 35° articulation, 4540 mm length, 1720 mm width.
Stable & Safe: 2480 mm wheelbase, reliable disk brakes.
Flexible Speed: 6–18 km/h, forward & reverse.
【ZT815 Mini Dumper: The Compact Powerhouse】
Taian Zhengtai's space-saving "site wizard"！This 1.5-ton mini dumper (Model Z71) is designed for tight spaces with heavy lifting needs, packing power into a compact 4540mm frame.
Three Core Advantages:
✅ 1720mm narrow body — navigates tight alleys where big equipment can't
✅ 35° agile articulation — 360° maneuverability in crowded sites
✅ 16MPa high-pressure hydraulics — 3.5s fast lifting, 60% faster cycles
Key Specifications:
• Compact dimensions: 4540mm(L)×1720mm(W)×2610mm(H), 2480mm wheelbase
• Robust power: XINCHAI 490 engine, 32kW/156N·m, 4WD powershift
• Flexible control: 6-18km/h speed range, 240mm ground clearance
• Practical features: 0.8m³ bucket + 800mm discharge, 1500KG capacity
From narrow lanes to crowded job sites, this "site elf" delivers big power in a compact size！Global delivery available！
Product Specifications
Loading capacity: | 1500KG |
Articulation angle: | 35° |
Maximum loading height: | 1600mm |
Braking system: | disk |
Distance between axis: | 2480mm |
Gauge width: | 1460mm |
Load lifting time: | 3.5s |
Hydraulic system pressure: | 16mpa |
Cruising Speed - Forward: | 6-18km/h |
Cruising Speed - Reverse: | 6-18km/h |
Maximum angle of rise: | 30° |
Engine - Model: | xinchai490 |
Engine - Power: | 32kw/42hp |
Engine - Maximum Torque: | 156nm |
Engine - Displacement: | 2.67L |
Electrical System - Voltage: | 12v |
Powershift | 4wd |
Rolled Type: | 12-16.5 |
Equipment weight | 3300kg |
Bucket capacity (up to): | 0.8cbm |
Dimensions- Total length (with bucket): | 4540mm |
Dimensions - Width: | 1720mm |
Dimensions - Height: | 2610mm |
Dimensions - Maximum discharge height: | 800mm |
Minimum distance to the floor: | 240mm |
Product Details
Packaging & Shipping
Container 40HC 3 units can be installed
1.Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.
2. spare parts or wearing parts will be packed in wooden box or paper carton.
3. Standard shipping method is by container.
Client Visit
Our Service
1. OEM orders welcomed: Customize with your brand, choose your color palette, and more.
2. Ready availability of spare parts, always in stock.
3. Comprehensive services including factory visits and third-party inspections.
4. Prompt responses: We ensure to reply to your inquiries within 24 hours.
5. Act as your purchasing agent for related machinery, simplifying your buying process.
