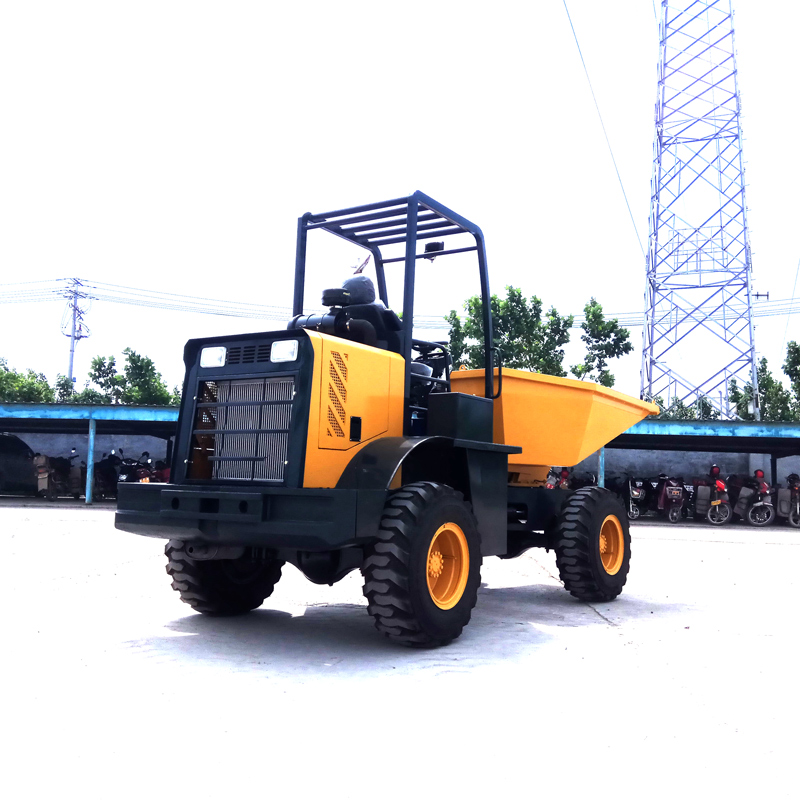

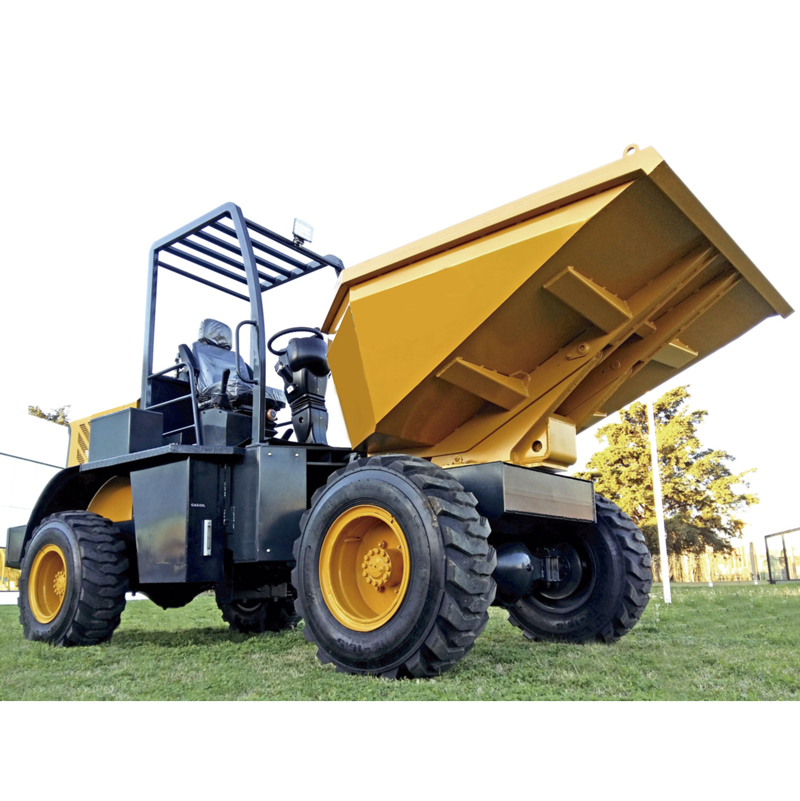

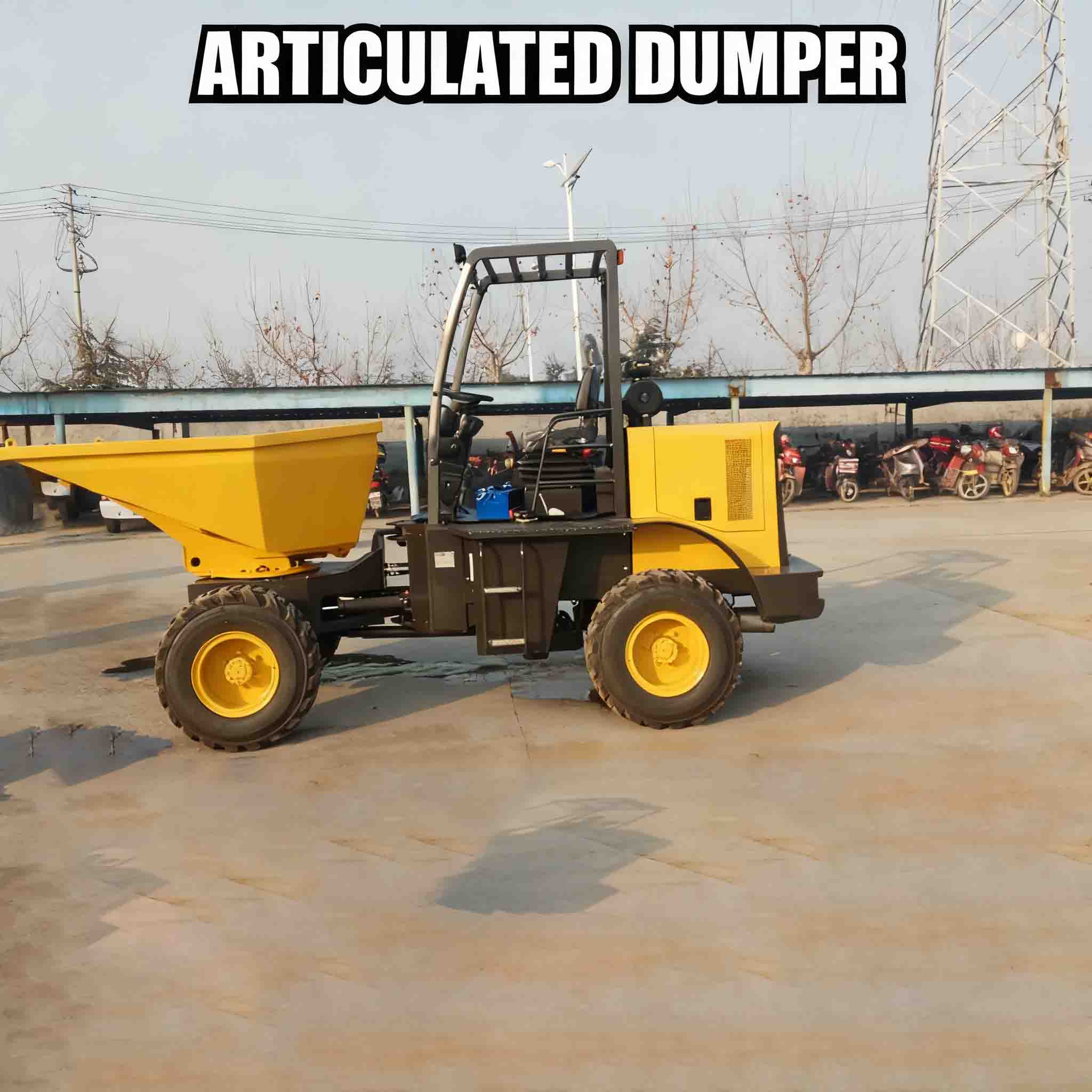

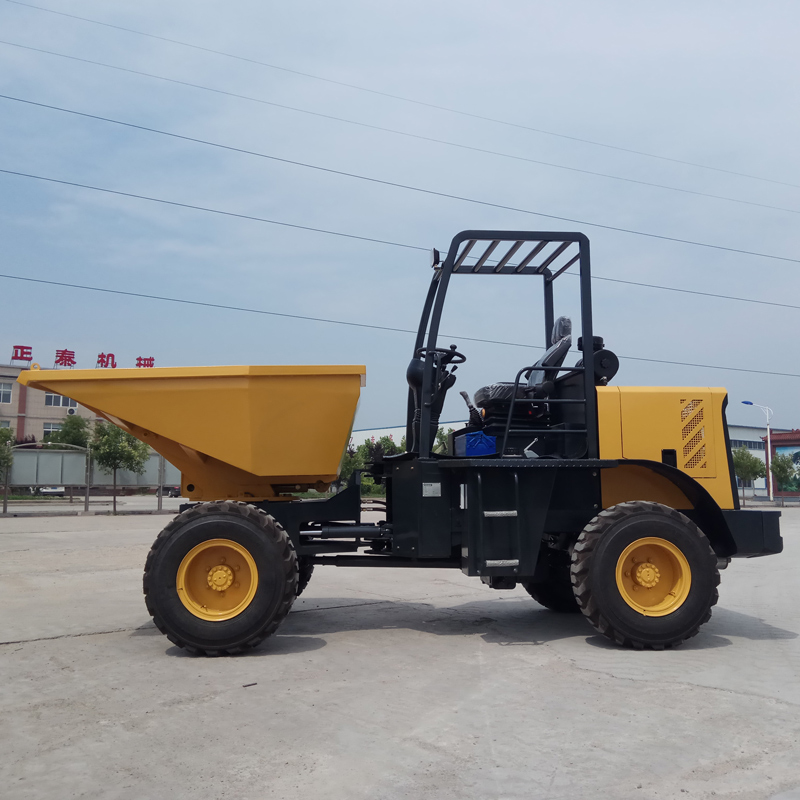

1500kg Capacity Mini Dumper For Sale
1500 kg Load & Fast Lift: Lifts up to 1500 kg in just 3.5 seconds, max height 1600 mm.
Strong Engine: Xinchai 490, 32 kW (42 hp), 156 Nm torque.
Efficient Hydraulics: 16 MPa system for smooth lifting and digging.
Compact & Agile: 35° articulation, 4540 mm length, 1720 mm width.
Stable & Safe: 2480 mm wheelbase, reliable disk brakes.
Flexible Speed: 6–18 km/h, forward & reverse.
【ZT815 Mini Dumper: The High-Efficiency Site Beast】
Crafted by Taian Zhengtai, this 1.5-ton "mini powerhouse" features a 16MPa high-pressure hydraulic system with 3.5-second rapid lifting for lightning-fast material handling!
Four Core Advantages:
✅ 16MPa hydraulic system — 3.5s ultra-fast lifting, 60% faster cycles
✅ 4WD powershift — ultimate traction for tough terrains
✅ 0.8m³ bucket — 1500KG load capacity, double efficiency
✅ 240mm ground clearance — rock-proof ruggedness
Key Specifications:
• Payload: 1500KG capacity + 0.8m³ bucket
• Smart dumping: 800mm discharge height + 1600mm loading
• Off-road: 12-16.5" tires + 30° climbing angle
• Power: XINCHAI 490 engine, 32kW/156N·m
• Agile: 1720mm width + 35° articulation
From construction sites to landscaping projects, this "site beast" with XINCHAI power and 4WD chassis conquers all terrains！Global delivery available！
Product Specifications
Loading capacity: | 1500KG |
Articulation angle: | 35° |
Maximum loading height: | 1600mm |
Braking system: | disk |
Distance between axis: | 2480mm |
Gauge width: | 1460mm |
Load lifting time: | 3.5s |
Hydraulic system pressure: | 16mpa |
Cruising Speed - Forward: | 6-18km/h |
Cruising Speed - Reverse: | 6-18km/h |
Maximum angle of rise: | 30° |
Engine - Model: | xinchai490 |
Engine - Power: | 32kw/42hp |
Engine - Maximum Torque: | 156nm |
Engine - Displacement: | 2.67L |
Electrical System - Voltage: | 12v |
Powershift | 4wd |
Rolled Type: | 12-16.5 |
Equipment weight | 3300kg |
Bucket capacity (up to): | 0.8cbm |
Dimensions- Total length (with bucket): | 4540mm |
Dimensions - Width: | 1720mm |
Dimensions - Height: | 2610mm |
Dimensions - Maximum discharge height: | 800mm |
Minimum distance to the floor: | 240mm |
Product Details
Packaging & Shipping
Container 40HC 3 units can be installed
1.Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.
2. spare parts or wearing parts will be packed in wooden box or paper carton.
3. Standard shipping method is by container.
