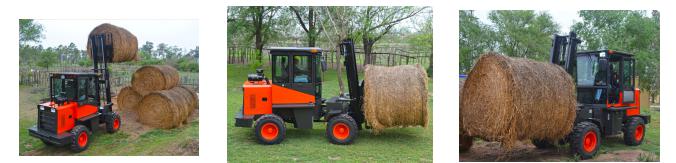

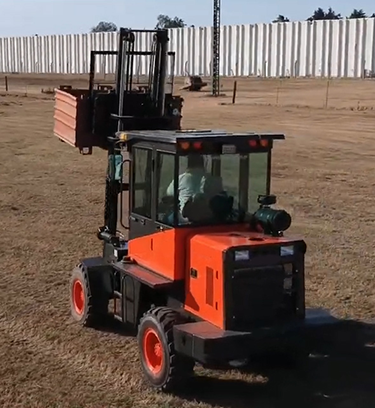

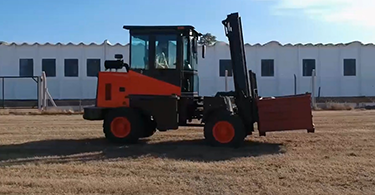

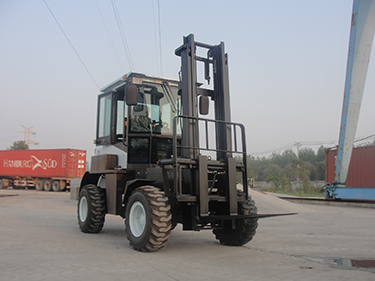

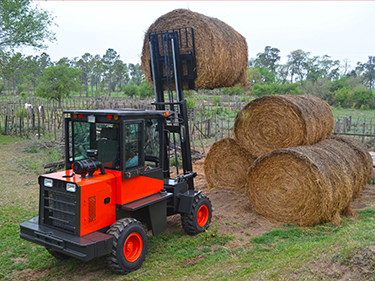

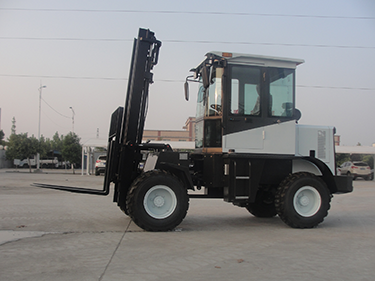

Rough Terrain Articulated Forklift

Superior Off-Road Performance: 230mm ground clearance and articulated steering (4.8m turning radius) ensure adaptability to rough terrain, with 30° gradeability for steep slopes.
Heavy-Duty Loading Capacity: 2,000kg load capacity at 500mm load center, combined with 1,220mm fork length for wide cargo handling.
High Operational Efficiency: 400mm/s lift speed paired with dual-speed transmission (6–18km/h) optimizes productivity.
Robust Construction: Powered by Xinchai 490 diesel engine (42HP), weighing 3,800kg with a 1,370mm wheelbase for enhanced stability.
Versatile Applications: Ideal for construction, agriculture, ports, and warehouses. Its compact design (1,630mm width) and durability make it a high-performance solution for tough outdoor material handling.

Contact Now E-Mail Telephone WhatsApp

Product Details

【ZT916C: The Warehouse "Flex Monster"】

Where regular forklifts get stuck, the ZT916C steals the show！With a super-tight 4800mm turning radius (more agile than an e-bike), it pulls off "snake moves" in the narrowest aisles — even tight shelf spacing is no match！

2000kg of pure lifting muscle + precision 500mm load center = rock-solid handling of any load. Boxes, steel, pallets? All grabbed with surgical precision！

Product Description


Basic Information
Model	ZT916C
Technical Specifications
Load Center Distance	500 mm
Load Capacity	2,000 Kg
Mast Tilt Angle	Back 6º / Forward 12º
Wheelbase	2,050 mm
Track Width - Front/Rear	1,370 mm
Lifting Speed	400 mm/s
Travel Speed	Forward: 2 gears 6-18 Km/h Reverse: 2 gears 6-18 Km/h
Max. Gradeability with Load	30º
Operating Weight	3,800 Kg
Fork Length	1,220 mm
Overall Length without Forks	3,770 mm
Width	1,630 mm
Mast Height in Transport Position	2,000 mm
Turning Radius	4,800 mm
Min. Ground Clearance - Axle	230 mm
Transmission & Power System
Engine - Brand/Model	xinchai490
Engine - Power	32 Kw / 42 Hp / 2,300 Rpm
Engine - Max. Torque	158.8 Nm
Engine - Displacement	2.670 L
Secondary Parameters
Tire Specification	12-16.5 (10 PR)
