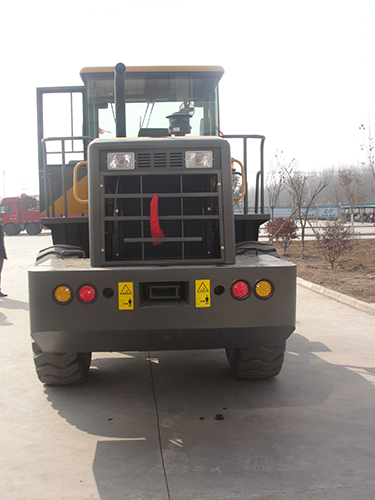

Oil field loader machine 92kW
High Load Efficiency: 3000 kg capacity with a 1.7 m³ bucket for faster material handling.
Powerful & Fast: 92 kW Cummins engine, 480 N·m torque, with rapid lift and cycle times.
Strong Digging Capability: 110 kN breakout force, 3150 mm dump height, and 45° discharge angle.
Excellent Maneuverability: 35° steering angle and 4800 mm turning radius for tight spaces.
All-Terrain Ready: 30° gradeability and 417 mm ground clearance for rough conditions.
Smart & Safe Operation: Auto bucket leveling, advanced braking, and manual parking brake.
Conquer Any Terrain: With a 92 kW Cummins engine, 1.7 m³ bucket, and 110 kN breakout force, the 3-ton Wheel Loader is built for challenging environments. It offers fast cycle times, automatic bucket leveling, and a tight turning radius for optimal efficiency, ensuring superior performance across diverse ground conditions.
Seamless Operations: With fast loading and unloading, this equipment streamlines material handling for construction and industrial needs. It’s highly flexible, readily switching between buckets, forks, and grapples to cover a range of jobs from lifting to sorting to hauling. Its rugged build means it’s made to last through tough use.
Your Shipment: One machine per 40GP container. The main unit is unboxed but tightly secured. Spare and wearing parts come in either wooden or paper boxes. Container delivery is how we ship.
Dedicated to You: We accommodate OEM orders, letting you dictate brand and color. You'll find all spare parts consistently in stock. Our services include factory visits and independent quality checks. Expect a reply to your questions within a day. We can also simplify your procurement of related machinery.
Product Specifications
Description | Specification |
Rated load(kg) | 3000 |
standard bucket capacity（m³） | 1.7 |
Equipment weight（kg) | 9600 |
Max.breakout force（kN） | 110 |
Max.dump height（MM） | 3150 |
Max.dump reach（MM） | 1150 |
Discharging Angle（°） | 45 |
Max.grade ability（°） | 30 |
Automatic leveling ability | Yes |
Lifting time（s) | ≤5.6 |
Total cycle time(lifting, dumping, lowering)（s) | ≤10 |
steering angle（°） | 35 |
Min turning radius（MM） | 4800 |
Wheel base（MM） | 2580 |
Tread（MM） | 1870 |
Min.ground clearance（MM） | 417 |
Overall dimensions (l×w×h)mm（MM） | 7550*2385*3145 |
travel speed（km/h） | |
Forward gear I | 0～6.8 |
II | 0～12 |
III | 0～23 |
IV | 0～35 |
reverse gear I | 0～8.5 |
II | 0～27 |
Engine Model | Cummins 6BT5.9-C125-II |
Type | In line, water cooled, four stroke, dir.inject |
Rated power（kW） | 92 |
