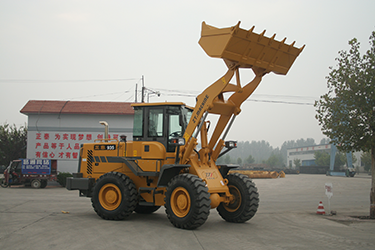

3 ton front end loader for sale
High Load Efficiency: 3000 kg capacity with a 1.7 m³ bucket for faster material handling.
Powerful & Fast: 92 kW Cummins engine, 480 N·m torque, with rapid lift and cycle times.
Strong Digging Capability: 110 kN breakout force, 3150 mm dump height, and 45° discharge angle.
Excellent Maneuverability: 35° steering angle and 4800 mm turning radius for tight spaces.
All-Terrain Ready: 30° gradeability and 417 mm ground clearance for rough conditions.
Smart & Safe Operation: Auto bucket leveling, advanced braking, and manual parking brake.
Built Tough, Works Smart: This 3-ton wheel loader features a 92 kW Cummins engine, 1.7 m³ bucket, and 110 kN breakout force for exceptional power. Operational efficiency is key, with fast cycles, automatic bucket leveling, and a tight turning radius. Its high ground clearance and gradeability ensure reliability in demanding work settings.
Power Through Tasks: Move materials quickly with this machine’s impressive loading/unloading speeds, perfect for any construction or industrial site. It’s incredibly adaptable, accommodating attachments like buckets, forks, and grapples for seamless transitions between lifting, sorting, and hauling. Built to endure, it's a dependable tool for hard work.
Dispatch & Contents: Our 40GP containers hold one machine. The main body is secured without packing. Spare parts and consumables are packaged in wood or paper. Container is our primary shipping method.
Seamless Service: Our OEM program allows custom branding and color. We ensure spare parts are always on hand. Explore our comprehensive service, from factory tours to third-party audits. We guarantee a response within 24 hours. We're ready to act as your buying agent for associated equipment.
Product Specifications
Description | Specification |
Rated load(kg) | 3000 |
standard bucket capacity（m³） | 1.7 |
Equipment weight（kg) | 9600 |
Max.breakout force（kN） | 110 |
Max.dump height（MM） | 3150 |
Max.dump reach（MM） | 1150 |
Discharging Angle（°） | 45 |
Max.grade ability（°） | 30 |
Automatic leveling ability | Yes |
Lifting time（s) | ≤5.6 |
Total cycle time(lifting, dumping, lowering)（s) | ≤10 |
steering angle（°） | 35 |
Min turning radius（MM） | 4800 |
Wheel base（MM） | 2580 |
Tread（MM） | 1870 |
Min.ground clearance（MM） | 417 |
Overall dimensions (l×w×h)mm（MM） | 7550*2385*3145 |
travel speed（km/h） | |
Forward gear I | 0～6.8 |
II | 0～12 |
III | 0～23 |
IV | 0～35 |
reverse gear I | 0～8.5 |
II | 0～27 |
Engine Model | Cummins 6BT5.9-C125-II |
Type | In line, water cooled, four stroke, dir.inject |
Rated power（kW） | 92 |
