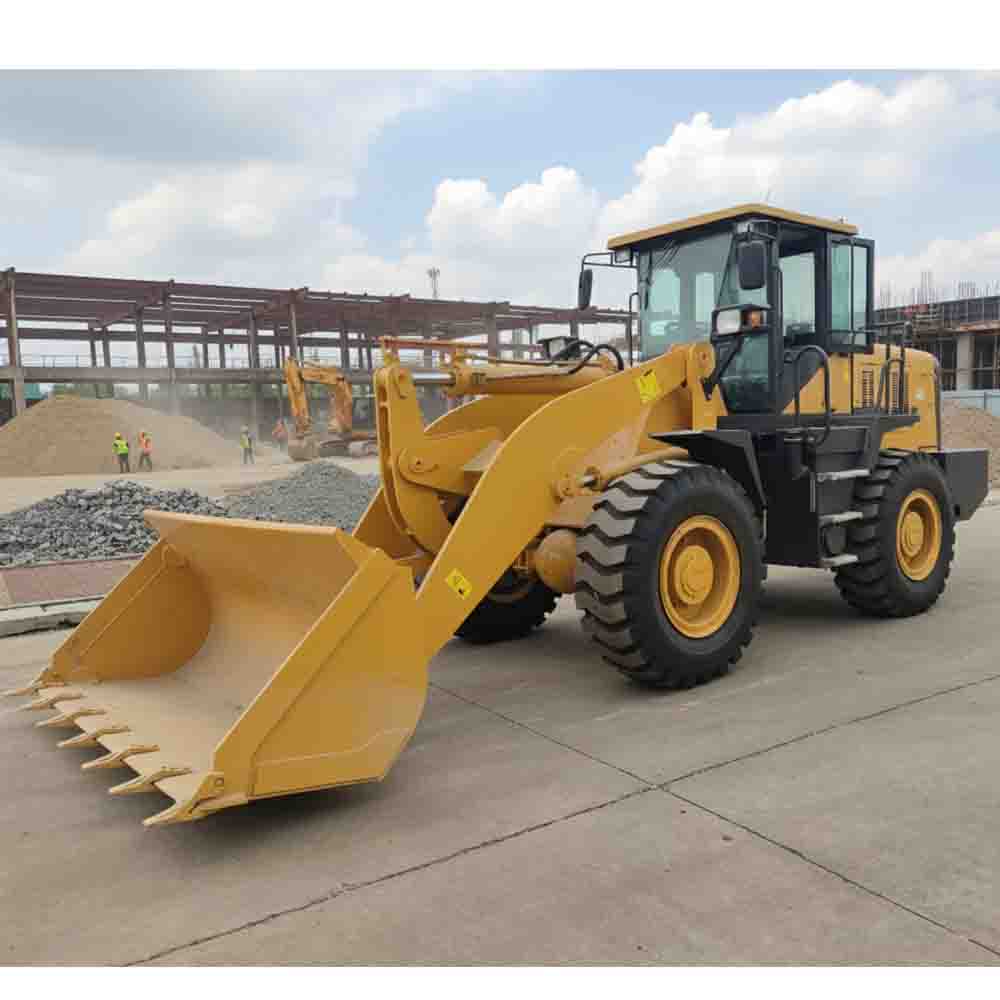

New Designed ZT935 with High Dump wheel loader
High Load Efficiency: 3000 kg capacity with a 1.7 m³ bucket for faster material handling.
Powerful & Fast: 92 kW Cummins engine, 480 N·m torque, with rapid lift and cycle times.
Strong Digging Capability: 110 kN breakout force, 3150 mm dump height, and 45° discharge angle.
Excellent Maneuverability: 35° steering angle and 4800 mm turning radius for tight spaces.
All-Terrain Ready: 30° gradeability and 417 mm ground clearance for rough conditions.
Smart & Safe Operation: Auto bucket leveling, advanced braking, and manual parking brake.
Say hello to this loader-the ultimate tough guy! Built to handle the roughest jobs with heavy-duty parts and serious reinforcement. Its Cummins direct-injection diesel engine saves fuel and never backs down, no matter the terrain. With a 2580mm wheelbase and 1870mm tread width, it stays super stable even at full load-no wobble, no trouble!
We've packed it with durability perks:
Reinforced boom and arm-extra strong
Top-tier hydraulic components-built to last
Corrosion-resistant electrics-rain or shine
Easy-access service points-maintenance made simple
Our "Famous Brand Path" means we never stop improving. We make equipment that's tougher and performs even better than you expected!
Product Specifications
Description | Specification |
Rated load(kg) | 3000 |
standard bucket capacity（m³） | 1.7 |
Equipment weight（kg) | 9600 |
Max.breakout force（kN） | 110 |
Max.dump height（MM） | 3150 |
Max.dump reach（MM） | 1150 |
Discharging Angle（°） | 45 |
Max.grade ability（°） | 30 |
Automatic leveling ability | Yes |
Lifting time（s) | ≤5.6 |
Total cycle time(lifting, dumping, lowering)（s) | ≤10 |
steering angle（°） | 35 |
Min turning radius（MM） | 4800 |
Wheel base（MM） | 2580 |
Tread（MM） | 1870 |
Min.ground clearance（MM） | 417 |
Overall dimensions (l×w×h)mm（MM） | 7550*2385*3145 |
travel speed（km/h） | |
Forward gear I | 0～6.8 |
II | 0～12 |
III | 0～23 |
IV | 0～35 |
reverse gear I | 0～8.5 |
II | 0～27 |
Engine Model | Cummins 6BT5.9-C125-II |
Type | In line, water cooled, four stroke, dir.inject |
Rated power（kW） | 92 |
Product Details
Unleash Productivity: Get materials moved quickly with top-tier loading/unloading speed, perfect for fast-paced construction and industrial operations. Its adaptability is a major plus, working with buckets, forks, grapples, and more for tasks like lifting, sorting, and hauling. Made to withstand heavy use, it's a dependable tool for any project.
Delivery Process: Expect one machine per 40GP container. The core unit is left unpacked but firmly fastened. Spare and wear items are protected in wooden or cardboard boxes. Our default shipping method is via container.
Client Visit
Our Commitment: We welcome OEM orders, letting you customize brand and color. Spare parts are always in stock for immediate needs. Benefit from factory visits and third-party inspections for complete assurance. Expect responses within 24 hours. We can also act as your purchasing agent
