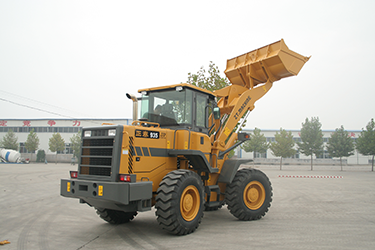

Loader for material handling
High Load Efficiency: 3000 kg capacity with a 1.7 m³ bucket for faster material handling.
Powerful & Fast: 92 kW Cummins engine, 480 N·m torque, with rapid lift and cycle times.
Strong Digging Capability: 110 kN breakout force, 3150 mm dump height, and 45° discharge angle.
Excellent Maneuverability: 35° steering angle and 4800 mm turning radius for tight spaces.
All-Terrain Ready: 30° gradeability and 417 mm ground clearance for rough conditions.
Smart & Safe Operation: Auto bucket leveling, advanced braking, and manual parking brake.
Built to Perform: Our 3-ton wheel loader is an exceptional choice for rigorous construction and industrial applications. It boasts a 92 kW Cummins engine, a 1.7 m³ bucket, and a powerful 110 kN breakout force. Designed for efficiency, it offers rapid cycle times, automatic bucket leveling, and excellent maneuverability, making it ideal for any demanding work environment.
Multi-purpose Efficiency: This equipment handles materials with speed, perfectly suited for the demands of construction and industrial work. Its superior versatility allows for easy integration with attachments like buckets, forks, and grapples for tasks ranging from lifting to sorting to hauling. Crafted from durable materials, it’s built to endure tough conditions.
Delivery Information: We ship one unit per 40GP container. The main machine is secured directly, without a separate package. Necessary spare or wearing components are packed in wooden or paper cartons. Container freight is our default delivery method.
Product Specifications
Description | Specification |
Rated load(kg) | 3000 |
standard bucket capacity（m³） | 1.7 |
Equipment weight（kg) | 9600 |
Max.breakout force（kN） | 110 |
Max.dump height（MM） | 3150 |
Max.dump reach（MM） | 1150 |
Discharging Angle（°） | 45 |
Max.grade ability（°） | 30 |
Automatic leveling ability | Yes |
Lifting time（s) | ≤5.6 |
Total cycle time(lifting, dumping, lowering)（s) | ≤10 |
steering angle（°） | 35 |
Min turning radius（MM） | 4800 |
Wheel base（MM） | 2580 |
Tread（MM） | 1870 |
Min.ground clearance（MM） | 417 |
Overall dimensions (l×w×h)mm（MM） | 7550*2385*3145 |
travel speed（km/h） | |
Forward gear I | 0～6.8 |
II | 0～12 |
III | 0～23 |
IV | 0～35 |
reverse gear I | 0～8.5 |
II | 0～27 |
Engine Model | Cummins 6BT5.9-C125-II |
Type | In line, water cooled, four stroke, dir.inject |
Rated power（kW） | 92 |
