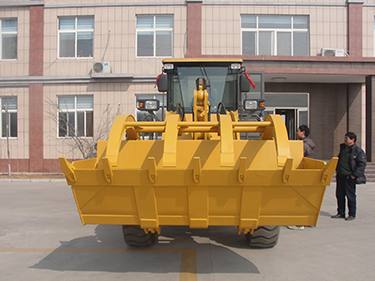

Durable 3T wheel loader
High Load Efficiency: 3000 kg capacity with a 1.7 m³ bucket for faster material handling.
Powerful & Fast: 92 kW Cummins engine, 480 N·m torque, with rapid lift and cycle times.
Strong Digging Capability: 110 kN breakout force, 3150 mm dump height, and 45° discharge angle.
Excellent Maneuverability: 35° steering angle and 4800 mm turning radius for tight spaces.
All-Terrain Ready: 30° gradeability and 417 mm ground clearance for rough conditions.
Smart & Safe Operation: Auto bucket leveling, advanced braking, and manual parking brake.
Versatile Utility: This equipment provides fast material handling, perfectly suited for the demands of construction and industrial work. It offers superior versatility, easily integrating with attachments like buckets, forks, and grapples for tasks ranging from lifting to sorting to hauling. Made from robust materials, it’s built for enduring tough conditions.
Product Specifications
Description | Specification |
Rated load(kg) | 3000 |
standard bucket capacity（m³） | 1.7 |
Equipment weight（kg) | 9600 |
Max.breakout force（kN） | 110 |
Max.dump height（MM） | 3150 |
Max.dump reach（MM） | 1150 |
Discharging Angle（°） | 45 |
Max.grade ability（°） | 30 |
Automatic leveling ability | Yes |
Lifting time（s) | ≤5.6 |
Total cycle time(lifting, dumping, lowering)（s) | ≤10 |
steering angle（°） | 35 |
Min turning radius（MM） | 4800 |
Wheel base（MM） | 2580 |
Tread（MM） | 1870 |
Min.ground clearance（MM） | 417 |
Overall dimensions (l×w×h)mm（MM） | 7550*2385*3145 |
travel speed（km/h） | |
Forward gear I | 0～6.8 |
II | 0～12 |
III | 0～23 |
IV | 0～35 |
reverse gear I | 0～8.5 |
II | 0～27 |
Engine Model | Cummins 6BT5.9-C125-II |
Type | In line, water cooled, four stroke, dir.inject |
Rated power（kW） | 92 |
