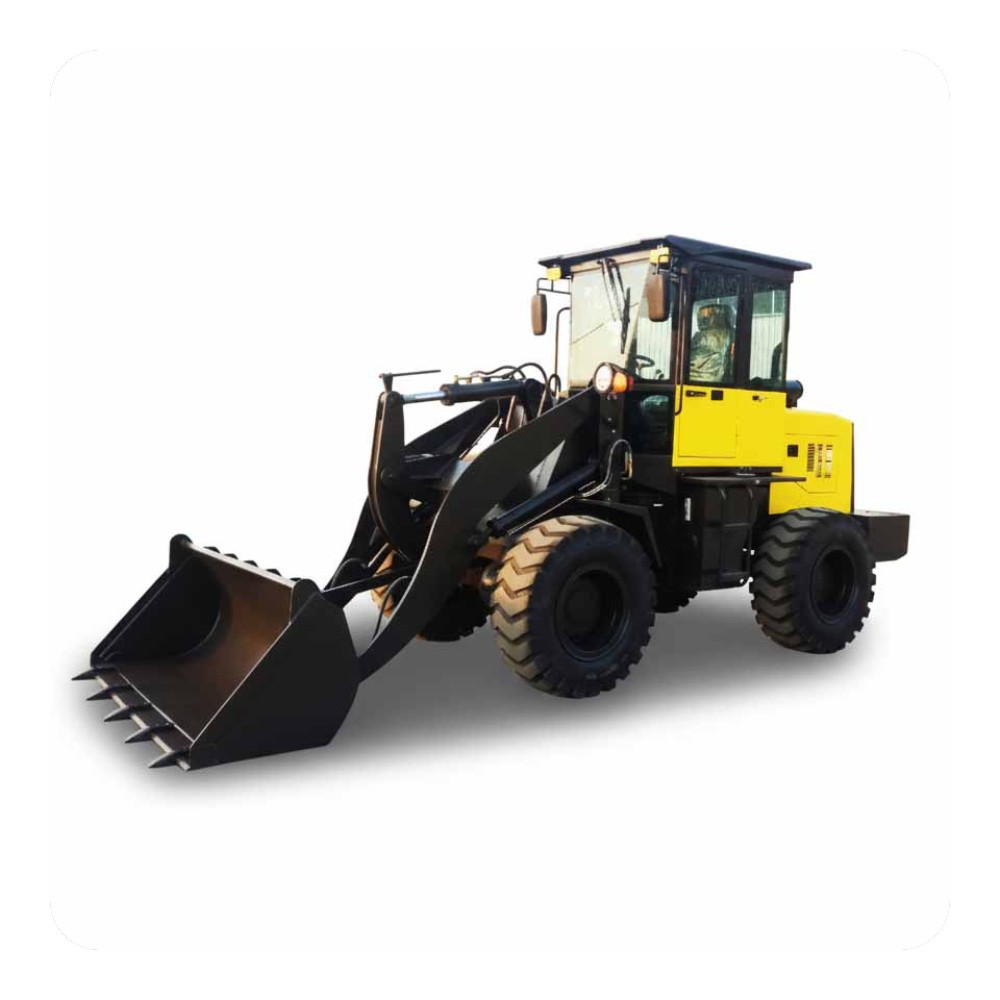

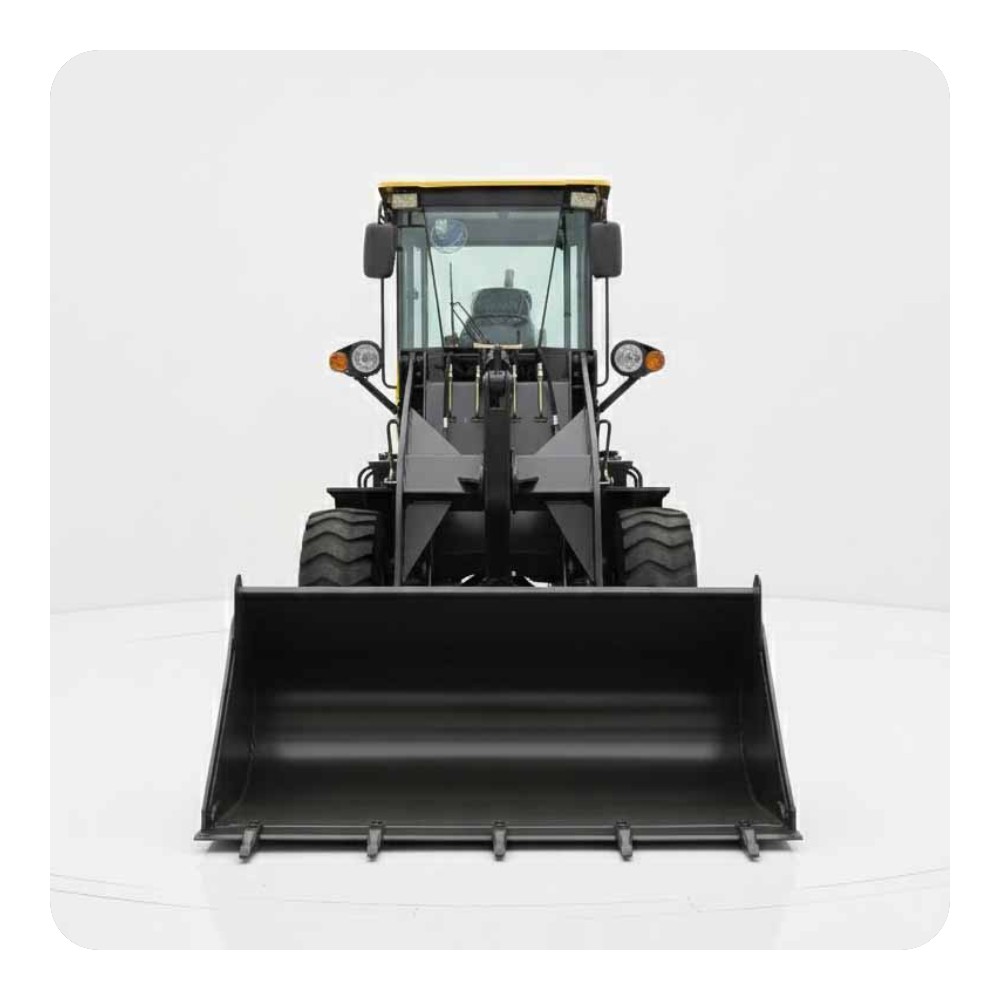

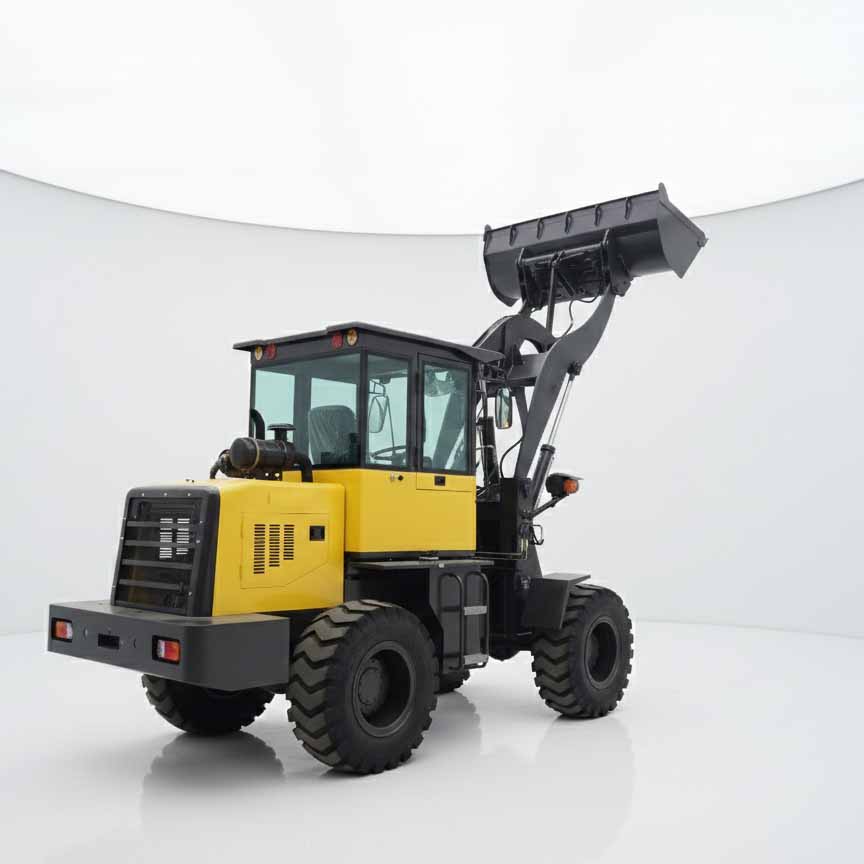

Versatile 1.5 Ton Compact Loader for Rugged Terrain Use
Heavy Load Capacity – 1500 kg rated load with 0.7 m³ bucket for higher efficiency.
Stable & Durable – 4700 kg weight ensures solid performance in tough jobs.
Efficient Operation – 3210 mm dump height with auto-leveling for faster, cleaner loading.
Flexible Maneuvering – 35° steering and 5060 mm turning radius for tight spaces.
Strong Power – 40 kW Xinchai engine and 35 km/h speed for fast, reliable work.
Good Ground Clearance – 360 mm clearance and compact size for rough terrain.
【Pocket Powerhouse】ZT Mini Loader: Small Frame, Mighty Performance!
✨ Style & Substance Combined
Sleek looks + premium cab, the site's showstopper
Panoramic wide-view cabin, zero blind spots
🛡️ Safety in Every Detail
Armored brake lines defy debris intrusion
External fuel port + centralized greasing, maintenance made easy
🔧 Designed Smart
Neat piping layout, maintenance is a breeze
Product Specifications
| Description | Specification |
| rated load(kg) | 1500 |
| Rated bucket capacity(m³) | 0.7 |
| operating weight(kg) | 4700 |
| Max.dump height(MM) | 3210 |
| Max.dump reach(MM) | 880 |
| steering angle(°) | 35 |
| Min turning radius(MM) | 5060 |
| Wheel base(MM) | 2250 |
| Tread(MM) | 1490 |
| Min.ground clearance(MM) | 360 |
| Overall dimensions (l×w×h)mm(MM) | 5500×1860×2650 |
| travel speed(km/h) | |
| Forward gear I | 0~9 |
| II | 0~35 |
| reverse gear I | 0~9 |
| II | 0~35 |
| Engine Model | Xinchai498/Yunnei 4BL105 |
| Type | Water injection four-stroke inline |
| Rated power(kW) | 40/76 |
| Rated speed(rpm) | 2200 |
| The voltage(V) | 12 |
