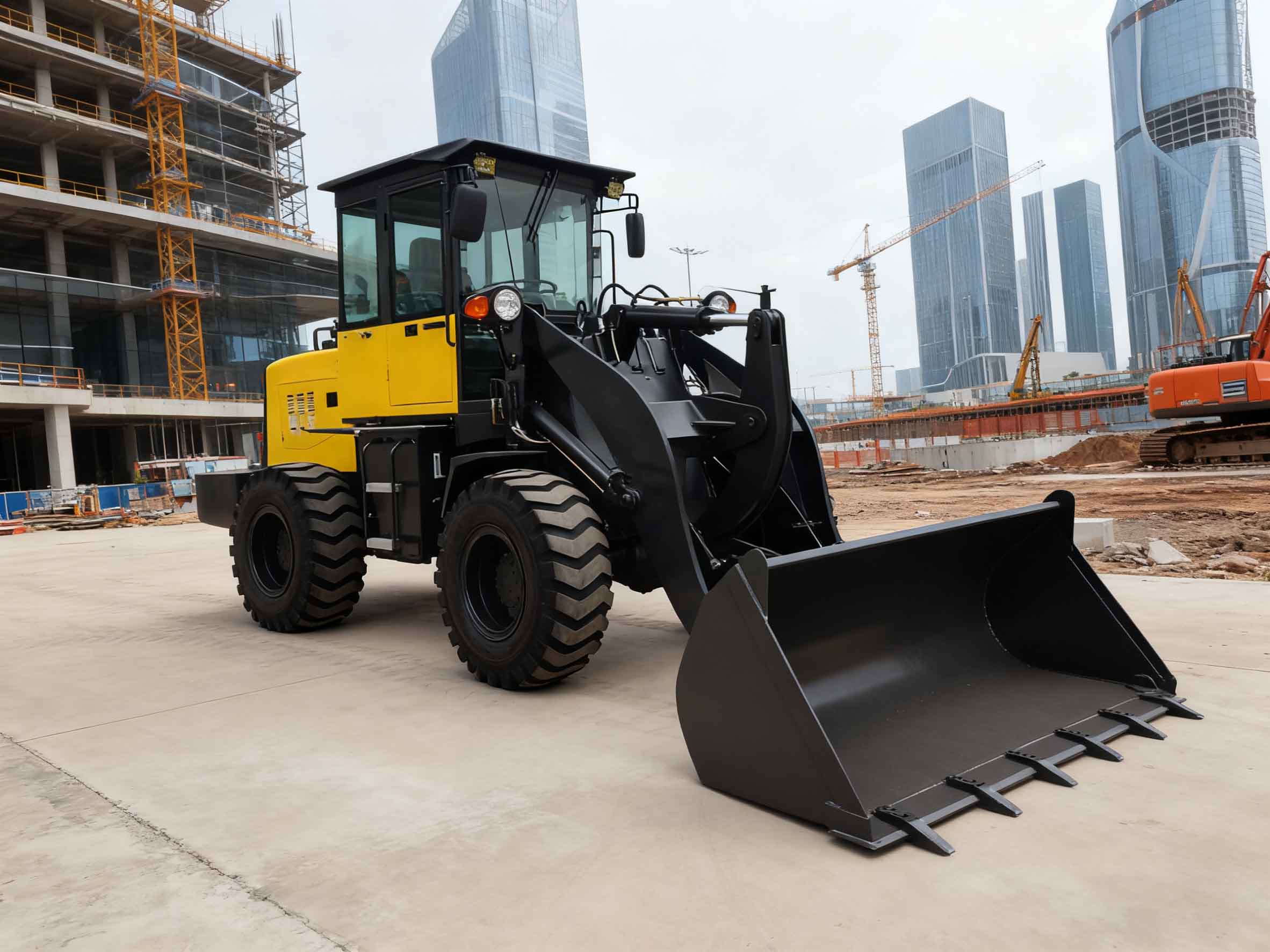

Powerful Mini Loader for Efficient Material Handling Solutions
Heavy Load Capacity – 1500 kg rated load with 0.7 m³ bucket for higher efficiency.
Stable & Durable – 4700 kg weight ensures solid performance in tough jobs.
Efficient Operation – 3210 mm dump height with auto-leveling for faster, cleaner loading.
Flexible Maneuvering – 35° steering and 5060 mm turning radius for tight spaces.
Strong Power – 40 kW Xinchai engine and 35 km/h speed for fast, reliable work.
Good Ground Clearance – 360 mm clearance and compact size for rough terrain.
Key Technical Specifications
5060 mm minimum turning radius for superior maneuverability
5500 mm overall length for easy transportation and storage
Optimized dimensions for working in confined spaces
Compact footprint maximizes operational flexibility
40 kW @ 2200 rpm Xinchai 498 engine
Reliable power delivery for consistent performance
Optimized engine speed for fuel efficiency
Proven engine technology for durability
Designed for high-efficiency material handling
Precise operation capabilities
Compact yet powerful performance
Reliable operation in demanding environments
The ZT926's technical specifications clearly demonstrate its strengths as a compact, high-performance wheel loader. With a minimum turning radius of just 5060 mm and an overall length of 5500 mm, this loader offers exceptional maneuverability in tight spaces, making it ideal for congested job sites.
Powered by a 40 kW @ 2200 rpm Xinchai 498 engine, the ZT926 delivers reliable and efficient performance for high-precision material handling tasks. The combination of compact dimensions and robust power makes it a perfect choice for procurement professionals and engineers seeking a versatile and dependable loader.
Product Specifications
| Description | Specification |
| rated load(kg) | 1500 |
| Rated bucket capacity(m³) | 0.7 |
| operating weight(kg) | 4700 |
| Max.dump height(MM) | 3210 |
| Max.dump reach(MM) | 880 |
| steering angle(°) | 35 |
| Min turning radius(MM) | 5060 |
| Wheel base(MM) | 2250 |
| Tread(MM) | 1490 |
| Min.ground clearance(MM) | 360 |
| Overall dimensions (l×w×h)mm(MM) | 5500×1860×2650 |
| travel speed(km/h) | |
| Forward gear I | 0~9 |
| II | 0~35 |
| reverse gear I | 0~9 |
| II | 0~35 |
| Engine Model | Xinchai498/Yunnei 4BL105 |
| Type | Water injection four-stroke inline |
| Rated power(kW) | 40/76 |
| Rated speed(rpm) | 2200 |
| The voltage(V) | 12 |
