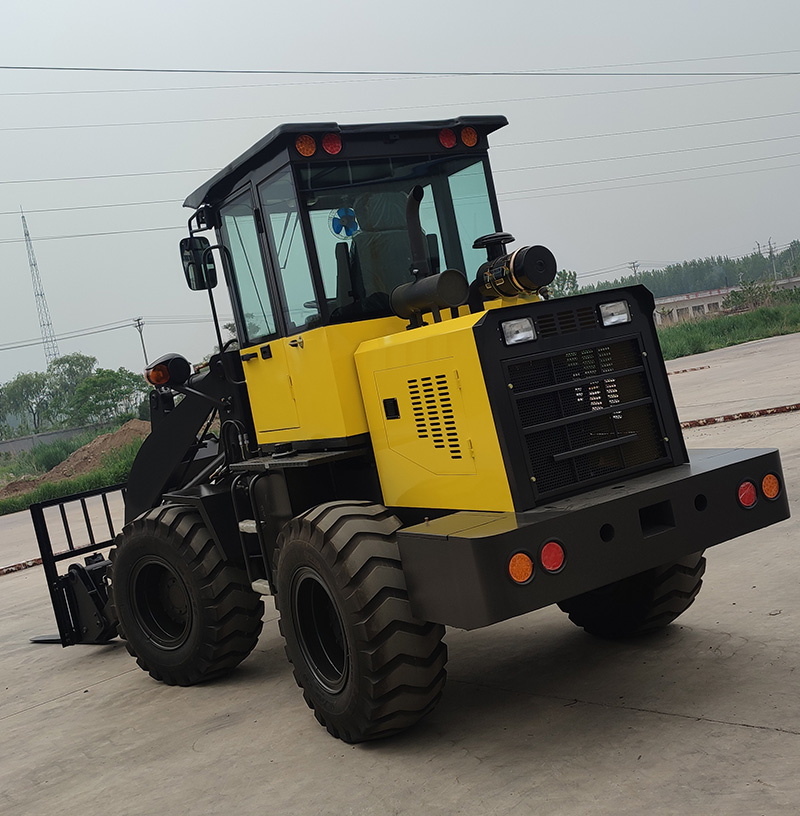

High Capacity Wheel Loader For Landscaping
Heavy Load Capacity – 1500 kg rated load with 0.7 m³ bucket for higher efficiency.
Stable & Durable – 4700 kg weight ensures solid performance in tough jobs.
Efficient Operation – 3210 mm dump height with auto-leveling for faster, cleaner loading.
Flexible Maneuvering – 35° steering and 5060 mm turning radius for tight spaces.
Strong Power – 40 kW Xinchai engine and 35 km/h speed for fast, reliable work.
Good Ground Clearance – 360 mm clearance and compact size for rough terrain.
Excellent Engineering Design for Low Failure Rate and Long Lifespan
The design philosophy of the ZT926 Wheel Loader integrates excellent engineering quality into every detail, aiming to ensure the equipment has an extremely low failure rate and an extended service life. From selecting the stable-performing Xinchai498 engine
Product Specifications
Description | Specification |
rated load(kg) | 1500 |
Rated bucket capacity（m³） | 0.7 |
Equipment weight（kg) | 4700 |
Max.dump height（MM） | 3210 |
Max.dump reach（MM） | 880 |
Automatic leveling ability | Y |
steering angle（°） | 35 |
Min turning radius（MM） | 5060 |
Wheel base（MM） | 2250 |
Tread（MM） | 1490 |
Min.ground clearance（MM） | 360 |
Overall dimensions (l×w×h)mm（MM） | 5500×1860×2650 |
travel speed（km/h） | |
Forward gear I | 0～9 |
II | 0～35 |
reverse gear I | 0～9 |
II | 0～35 |
Engine Model | Xinchai498 |
Type | Water injection four-stroke inline |
Rated power（kW） | 40 |
Rated speed（rpm） | 2200 |
The voltage(V) | 12 |
