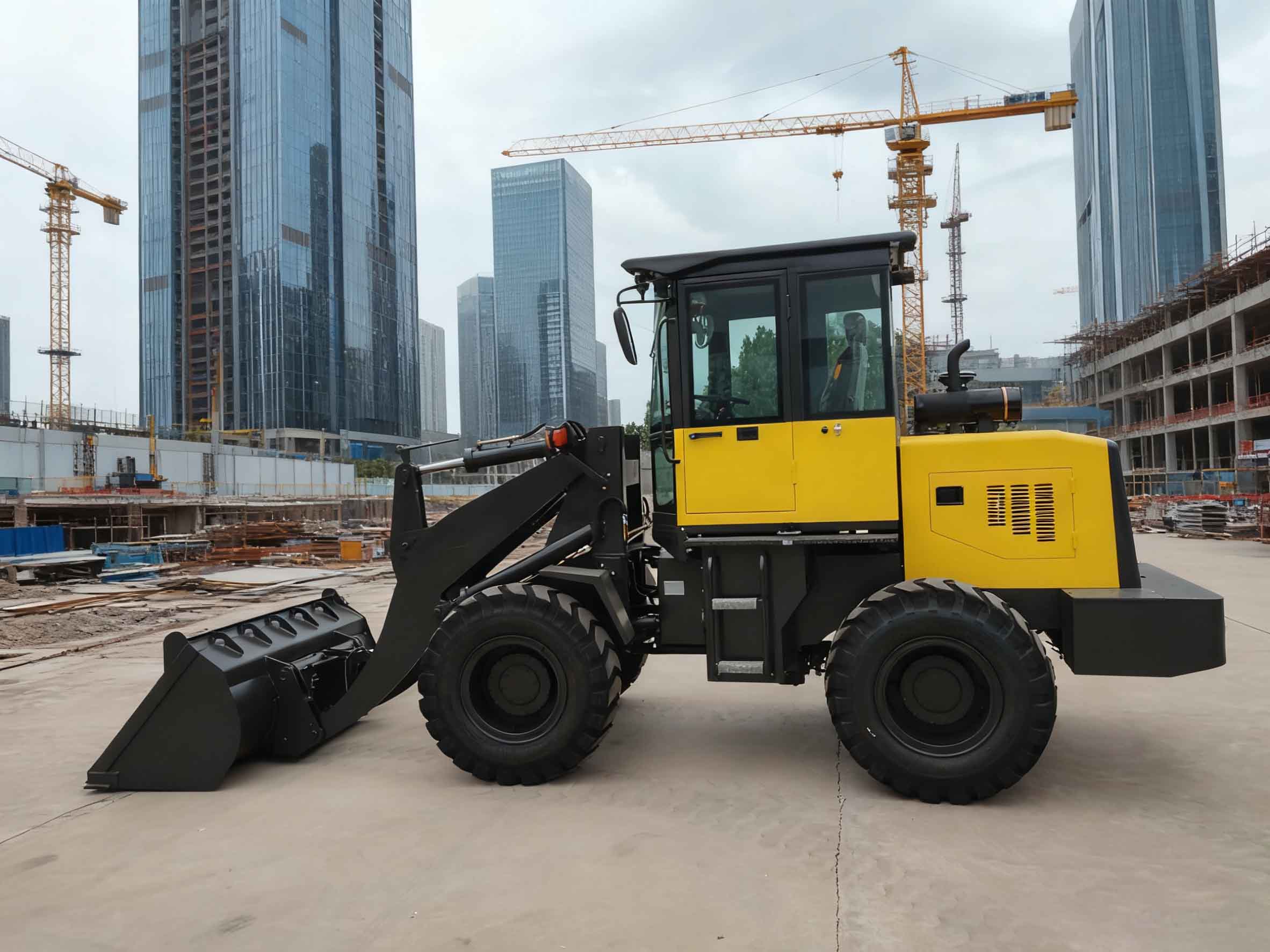

Compact 1.5 Ton Mini Loader for Tough Industrial Tasks
Heavy Load Capacity – 1500 kg rated load with 0.7 m³ bucket for higher efficiency.
Stable & Durable – 4700 kg weight ensures solid performance in tough jobs.
Efficient Operation – 3210 mm dump height with auto-leveling for faster, cleaner loading.
Flexible Maneuvering – 35° steering and 5060 mm turning radius for tight spaces.
Strong Power – 40 kW Xinchai engine and 35 km/h speed for fast, reliable work.
Good Ground Clearance – 360 mm clearance and compact size for rough terrain.
Three Superpowers
The ZT926 Wheel Loader is the ultimate "terrain task force" in a single machine, combining the agility of a forklift with the ruggedness of an off-road vehicle. Dubbed the "All-Terrain All-Rounder," this shape-shifting marvel conquers diverse environments with ease, from muddy farms and rocky construction sites to uneven docks.
With its 360mm ground clearance and rugged chassis, it handles rough terrain effortlessly. The 1500kg load capacity and 3.21m dump height make it a versatile multi-tasker, capable of handling pallets, bulk materials, and logs. The quick-change bucket attachment system adds to its adaptability, allowing you to switch tasks in seconds.
Product Specifications
| Description | Specification |
| rated load(kg) | 1500 |
| Rated bucket capacity(m³) | 0.7 |
| operating weight(kg) | 4700 |
| Max.dump height(MM) | 3210 |
| Max.dump reach(MM) | 880 |
| steering angle(°) | 35 |
| Min turning radius(MM) | 5060 |
| Wheel base(MM) | 2250 |
| Tread(MM) | 1490 |
| Min.ground clearance(MM) | 360 |
| Overall dimensions (l×w×h)mm(MM) | 5500×1860×2650 |
| travel speed(km/h) | |
| Forward gear I | 0~9 |
| II | 0~35 |
| reverse gear I | 0~9 |
| II | 0~35 |
| Engine Model | Xinchai498/Yunnei 4BL105 |
| Type | Water injection four-stroke inline |
| Rated power(kW) | 40/76 |
| Rated speed(rpm) | 2200 |
| The voltage(V) | 12 |
