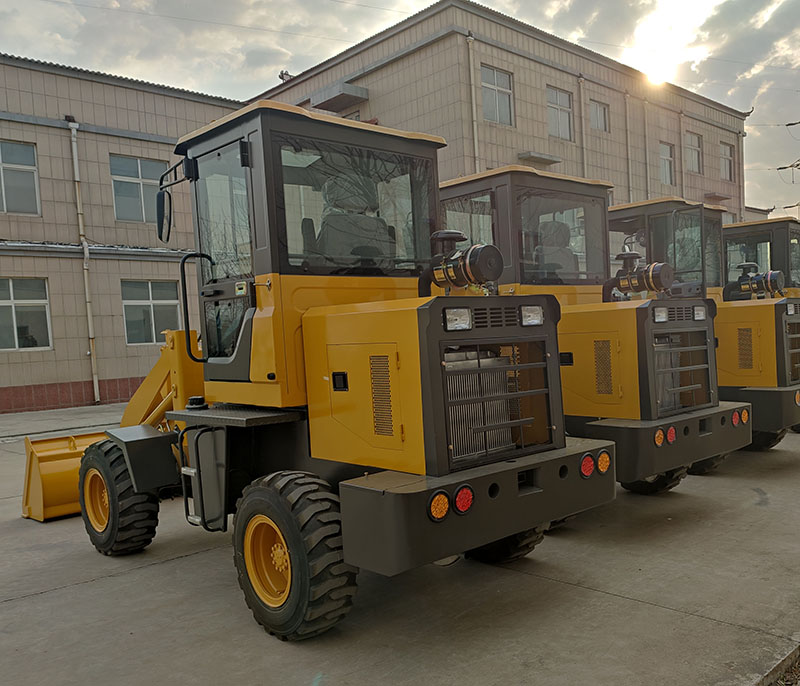

High Capacity Wheel Loader For Fast Work
High Load Capacity: 1000 kg rated load for heavy-duty construction and industrial use.
Efficient Loading: 0.5 m³ bucket ensures fast loading/unloading and high productivity.
Compact & Agile: 5470×1635×2700 mm — ideal for tight and urban job sites.
Excellent Dump Height: 3960 mm max dump height fits high-sided trucks and containers.
Easy Maneuverability: 35° steering angle, 4800 mm turning radius for narrow space operation.
Powerful & Durable: 32 kW Xinchai490 engine, 12-16.5 tires, 230 mm ground clearance for off-road reliability.
Product Introduction
ZT916: Streamline Your Operations
Streamline your operations with the ZT916 Wheel Loader. It moves materials efficiently with a 1000 kg capacity and 0.5 m³ bucket. Navigate easily through congested sites thanks to its compact dimensions and 4800 mm turning radius. Its 3960 mm dump height allows for versatile unloading. Flexible travel speeds up to 18 km/h enhance mobility. This 3200 kg loader offers stability and longevity, powered by a water-injection inline engine and riding on 12-16.5 tires.
Description | Specification |
rated load(kg) | 1000 |
Rated bucket capacity（m³） | 0.5 |
Equipment weight（kg) | 3200 |
Max.dump height（MM） | 3960 |
Max.dump reach（MM） | 840 |
Unloading height(MM) | No teeth 3100 |
With teeth 3020 | |
steering angle（°） | 35 |
Min turning radius（MM） | 4800 |
Wheel base（MM） | 2050 |
Tread（MM） | 1370 |
Min.ground clearance（MM） | 230 |
Overall dimensions (l×w×h)mm（MM） | 5470×1635×2700 |
travel speed（km/h） | |
Forward gear I | 0～6 |
II | 0～18 |
reverse gear I | 0～6 |
II | 0～18 |
Engine Model | Xinchai490 |
Type | Water injection four-stroke inline |
Rated power（kW） | 32 |
Rated speed（rpm） | 2200 |
The voltage(V) | 12 |
