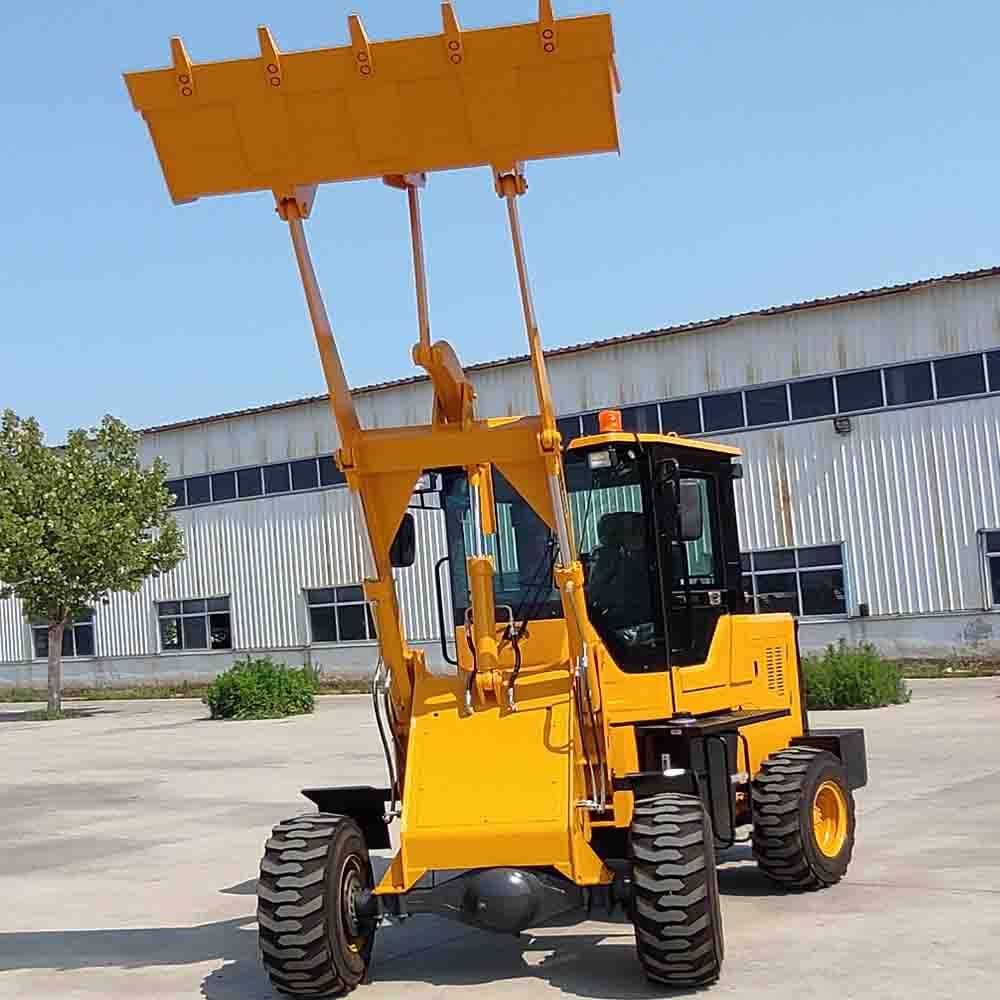

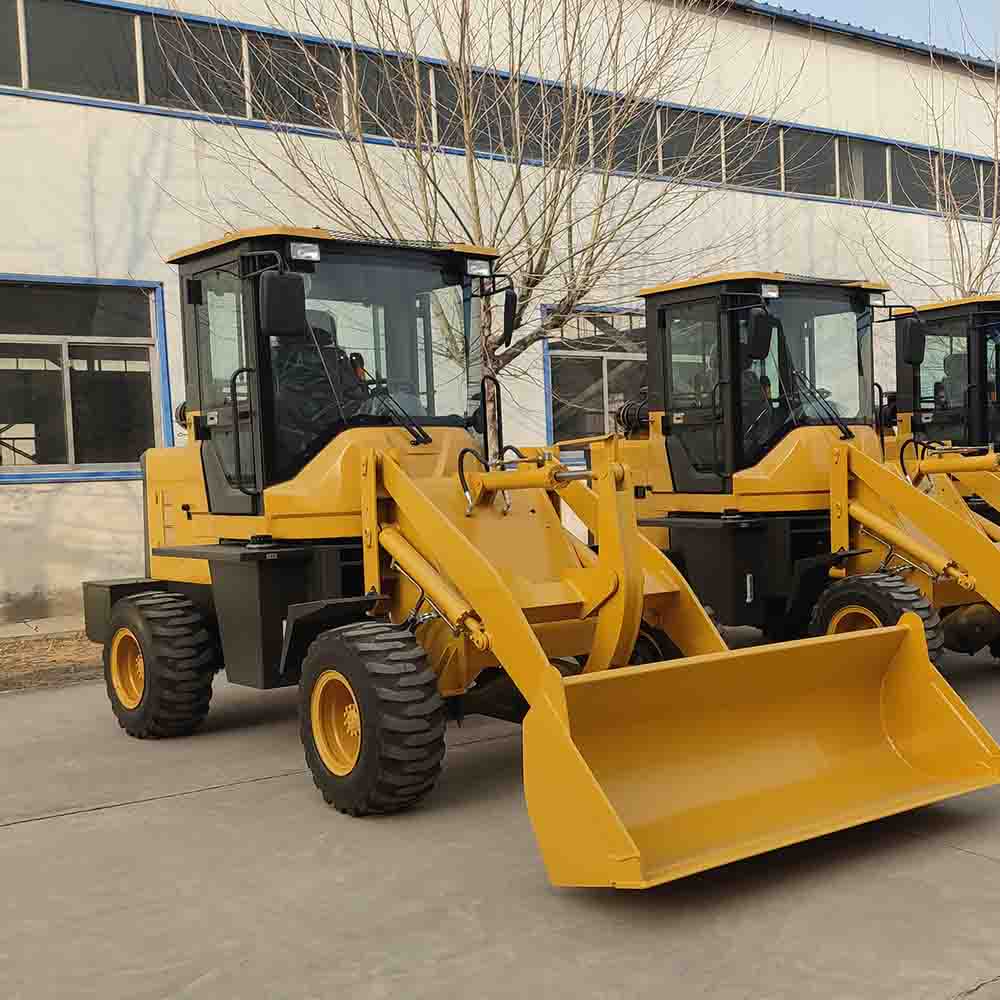

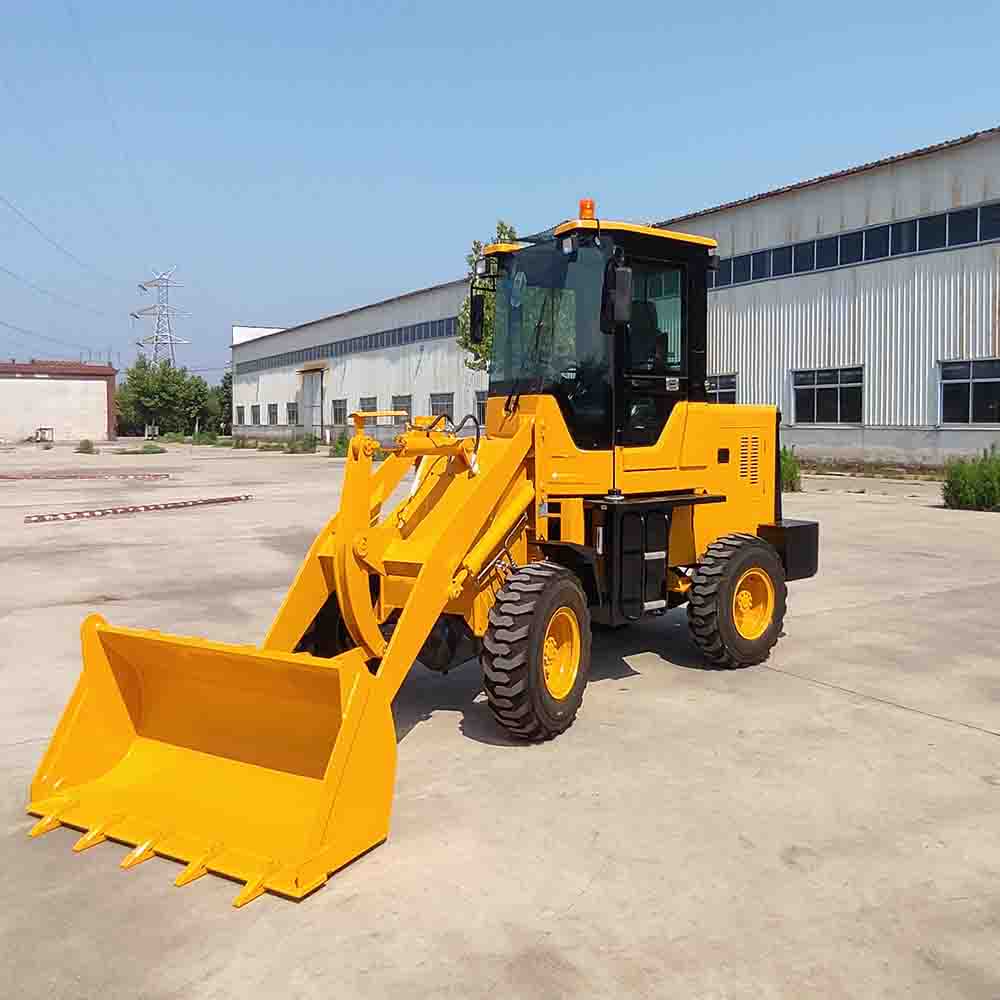

Compact Loader With 840mm Dump Reach For Efficient Unloading Operations
High Load Capacity: 1000 kg rated load for heavy-duty construction and industrial use.
Efficient Loading: 0.5 m³ bucket ensures fast loading/unloading and high productivity.
Compact & Agile: 5470×1635×2700 mm — ideal for tight and urban job sites.
Excellent Dump Height: 3960 mm max dump height fits high-sided trucks and containers.
Easy Maneuverability: 35° steering angle, 4800 mm turning radius for narrow space operation.
Powerful & Durable: 32 kW Xinchai490 engine, 12-16.5 tires, 230 mm ground clearance for off-road reliability.
👷 ZT916 Ergonomic Loader—Comfort Meets Capability!
Designed for long-hour operation—comfortable, adaptive, and highly efficient in any condition!
🪑 Operator-First Design:
Low vibration + climate-adaptive cab → comfort in all conditions
Intuitive lever/pedal layout → easy to learn, fewer errors
270° excellent visibility → clear view of work area and surroundings
Low noise operation → reduced fatigue, quieter performance
🌦️ Built for All Environments:
Sealed electronics + anti-corrosion materials → reliable in humidity/salt
230mm ground clearance + optimized angles → handles rough terrain with ease
Eco-friendly engine → meets global emission standards
⚙️ Trusted Performance:
Xinchai490 water-cooled diesel, 32kW → power you can count on
2F/2R transmission + auto neutral → smooth shifting, less effort
Parking brake + emergency switches → enhanced safety
Full lighting package → safe night operations
🏭 Quality Assured:

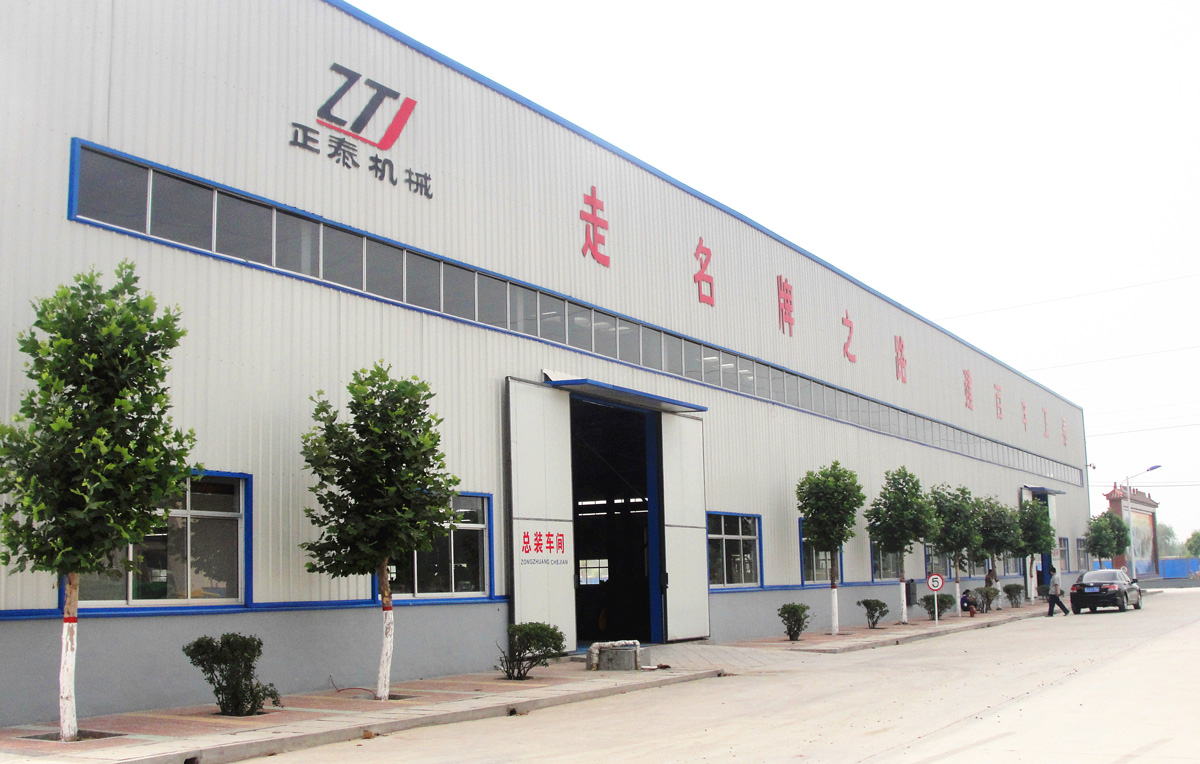

78,330m² modern facility with CNC & robotic welding → precision manufacturing
Every unit rigorously tested → built to last
ISO 9001 & export certified → meets international standards
#ZT916 #ErgonomicLoader #OperatorComfort #AllEnvironment #ZhengtaiQuality #GlobalCompliance
Description | Specification |
rated load(kg) | 1000 |
Rated bucket capacity（m³） | 0.5 |
Equipment weight（kg) | 3200 |
Max.dump height（MM） | 3960 |
Max.dump reach（MM） | 840 |
Unloading height(MM) | No teeth 3100 |
With teeth 3020 | |
steering angle（°） | 35 |
Min turning radius（MM） | 4800 |
Wheel base（MM） | 2050 |
Tread（MM） | 1370 |
Min.ground clearance（MM） | 230 |
Overall dimensions (l×w×h)mm（MM） | 5470×1635×2700 |
travel speed（km/h） | |
Forward gear I | 0～6 |
II | 0～18 |
reverse gear I | 0～6 |
II | 0～18 |
Engine Model | Xinchai490 |
Type | Water injection four-stroke inline |
Rated power（kW） | 32 |
Rated speed（rpm） | 2200 |
The voltage(V) | 12 |
