Reliable 81kw YTO Engine Wheel Loader for Heavy Duty Tasks

  • Powerful Performance: Equipped with a high-power 81KW engine and a breakout force of ≥45 KN to handle heavy-duty tasks with ease.

  • High Efficiency: Features a 2-ton rated load capacity and a 0.9 m³ bucket, with a rapid total cycle time of ≤9 seconds.

  • Flexible Maneuverability: Full hydraulic articulated steering with a ≥35° angle ensures agile operation in confined spaces.

  • Safety & Reliability: Advanced disc/dry service brakes combined with an air cut-off parking brake for maximum operational safety.

  • Fast Transit: Reaches speeds up to 23 km/h and utilizes 16/70-20 large-sized tires for stable and quick site-to-site movement.


Product Details

ZT929KS Off-Road King

All-Terrain Dominance, Unmatched Power!

Born for Tough Terrain

Engineered to conquer the most challenging environments, the ZT929KS transforms every site into its off-road playground with exceptional gradeability, stability, and raw power.

⛰️

Unmatched Gradeability

30% Slope Conqueror with 310mm Ground Clearance

The ZT929KS boasts exceptional gradeability and ground clearance, gliding over obstacles and climbing steep slopes that stop other loaders.

30%
Gradeability
310mm
Ground Clearance

Climbing Advantages:

  • Conquers 30% slopes (approx. 16.7° incline) with full loads

  • 310mm ground clearance glides over ditches and obstacles

  • Optimal approach and departure angles for rough terrain

  • Power-on-demand traction control for slippery slopes

  • Maintains stability and control on steep inclines

⚖️

Rock-Solid Stability

Golden Ratio Wheelbase + Track for Maximum Control

The perfect balance of 2450mm wheelbase and 1450mm track width delivers exceptional stability even at high speeds on rough terrain.

2450mm
Wheelbase
1450mm
Track Width

Stability Advantages:

  • Golden ratio design maintains balance on uneven surfaces

  • Rock-stable operation even at maximum 23km/h speed

  • Reduced body roll during high-speed turns on rough ground

  • Optimal weight distribution for lifting stability

  • Lower center of gravity prevents tipping on side slopes

💪

Unstoppable Power

45kN Breakout Force with Fatigue-Tested Frame

Powered by a fatigue-tested high-strength frame and massive breakout force, the ZT929KS fills buckets in one scoop through the toughest materials.

45kN
Breakout Force
Fatigue-Tested
High-Strength Frame

Power Advantages:

  • 45kN breakout force penetrates hard soil and rocky piles

  • Fatigue-tested frame withstands 10,000+ hours of extreme use

  • Fills bucket in one scoop, cutting cycle times by 20-30%

  • High-strength steel construction for maximum durability

  • Optimized hydraulic flow for responsive, powerful digging

Conquer Every Terrain Type

⛰️
Steep Slopes

30% gradeability with full load capacity. Confidently operates on 16.7° inclines where others struggle.

🏜️
Rocky Terrain

310mm ground clearance navigates rock piles and debris fields without damage or hang-ups.

🌧️
Mud & Soft Soil

Optimal weight distribution and traction control prevent sinking and maintain productivity.

🚜
Construction Sites

Handles uneven, unprepared ground with rubble, trenches, and variable surfaces.





Product Parameters



I. Basic Parameters
ItemSpecification
Product ModelZT929KS
Operating Weight (kg)5880±50
Rated Load Capacity (t)2±0.1
Bucket Capacity (m³)0.9±0.09
Length×Width×Height (mm)5600×2000×1950 (±50/±20/±50)
II. Dimension Parameters
ItemSpecification
Wheelbase (mm)2450 (±10)
Track Width (mm)1450 (±10)
Minimum Ground Clearance (mm)310 (±10)
Maximum Dump Height (mm)1700 (±10)
Minimum Dump Reach (mm)950 (±10)
Min. Turning Radius (Inside Tires) (mm)3250±50
Min. Turning Radius (Outside Bucket) (mm)5750±50
III. Performance Parameters
ItemSpecification
Maximum Breakout Force (KN)≥45
Tip Load (kg)4000
Gradeability (%)30
Maximum Traction Force (KN)≥40
IV. Travel Speed
Forward (km/h)
1st Gear0-6
2nd Gear0-23
3rd Gear/
4th Gear/
Reverse (km/h)
1st Gear0-6
2nd Gear0-18
V. System Configuration
ItemSpecification
Service Brake TypeDisc Brake, Dry Brake
Parking Brake TypeAir Cut-off Brake
Drive TypeHydraulic Dual Transmission, Power Shift Transmission
Fuel Tank Capacity (L)≤120
Engine ModelLR4M3Z-22
Rated Power (kW) / Speed (r/min)81KW/2200
Steering TypeArticulated Frame, Full Hydraulic Steering
Maximum Steering Angle (°)≥35
Tires16/70-20
VI. Operation Parameters
ItemSpecification
Working Device Action Time (S)≤9 (2.9-0.8-2.2)
(Lift-Dump-Lower)
Brake Operating Force (KN)266
Lift and Dump Operating Force (KN)30
Steering Speed (S)2.1-2.6
Seat to Canopy Height (mm)980
Steering Force (KN)15.5



Detailed Photos

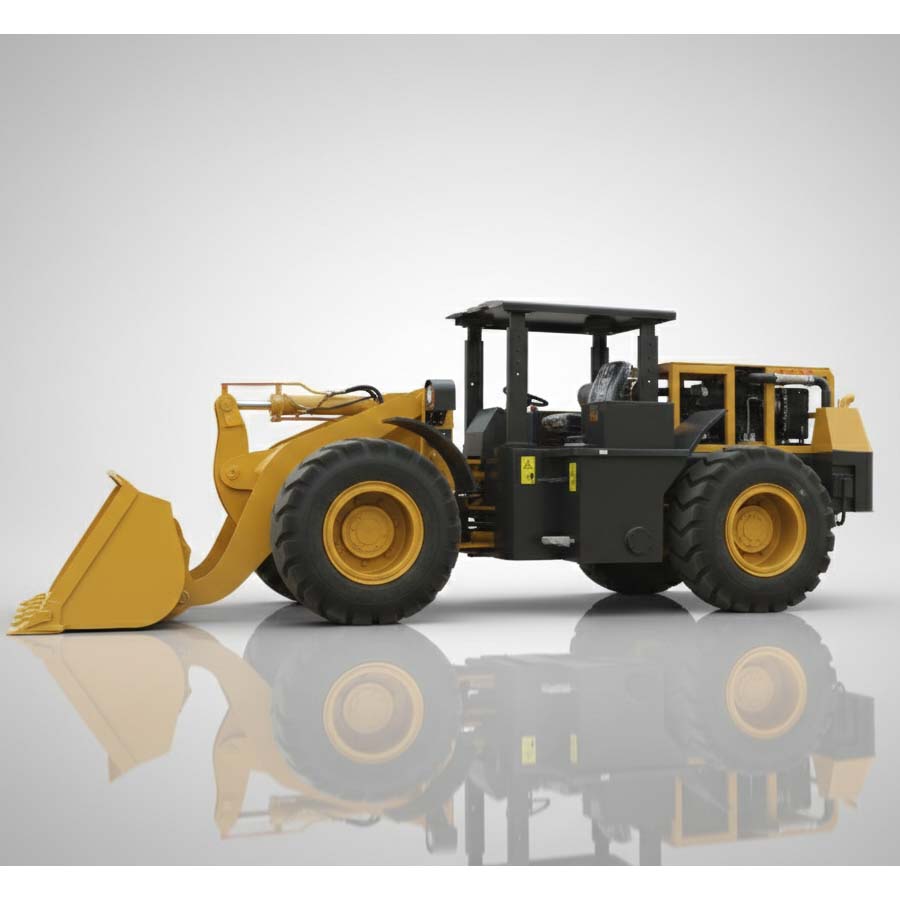

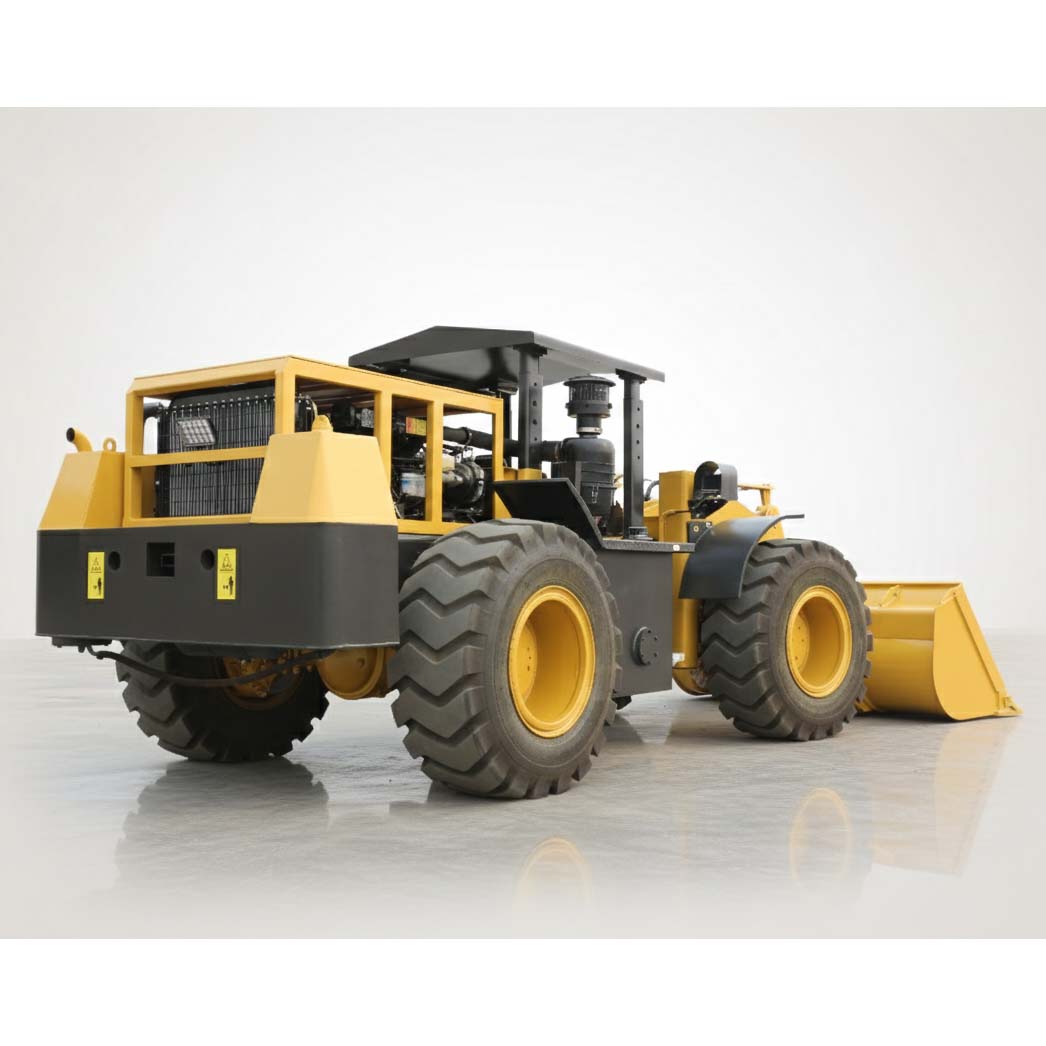

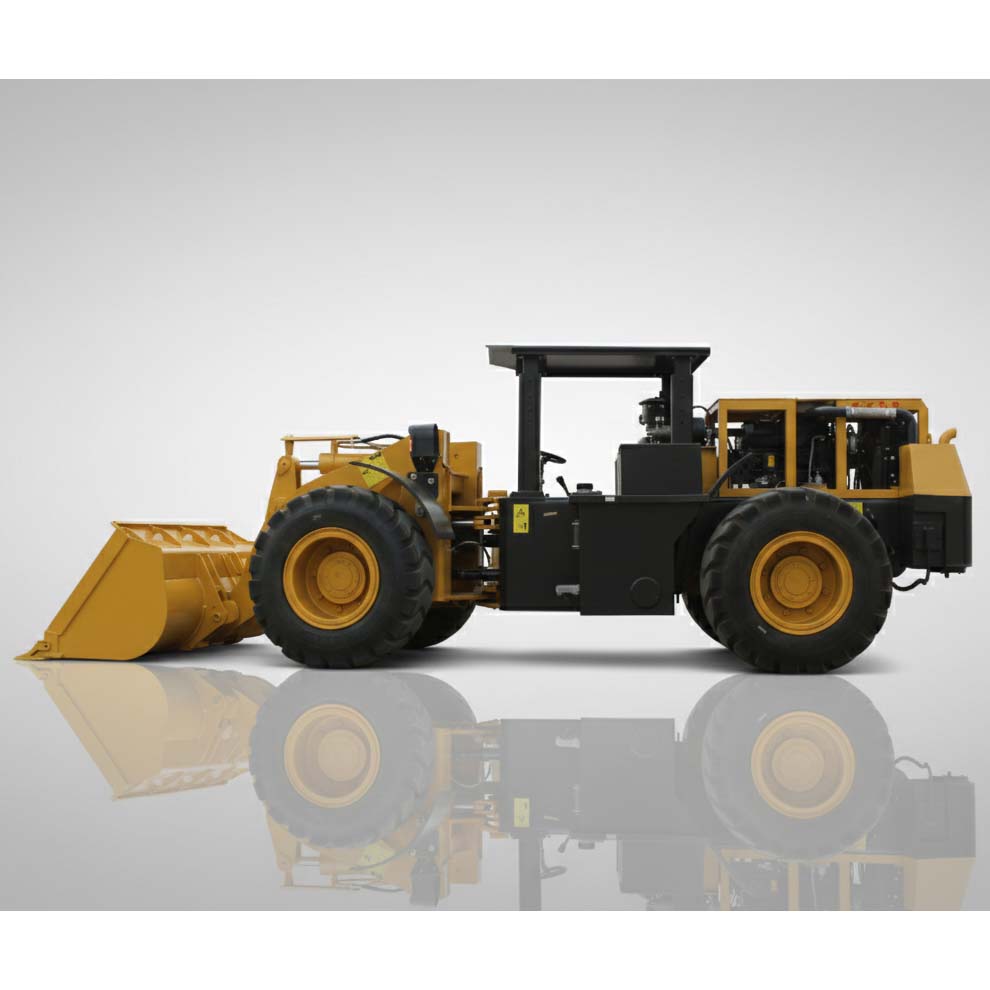

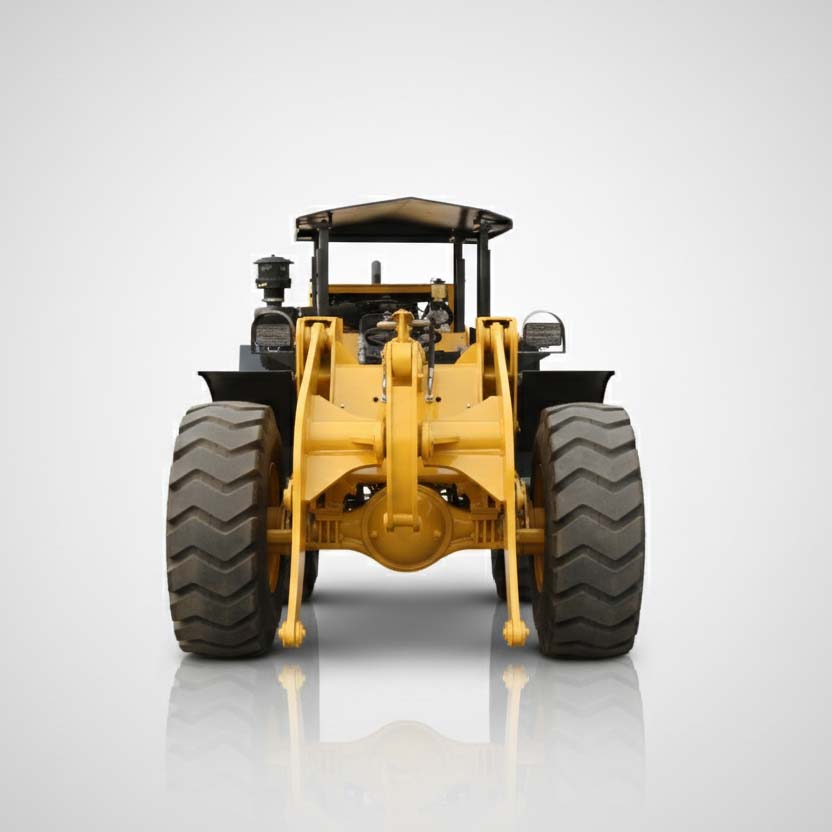

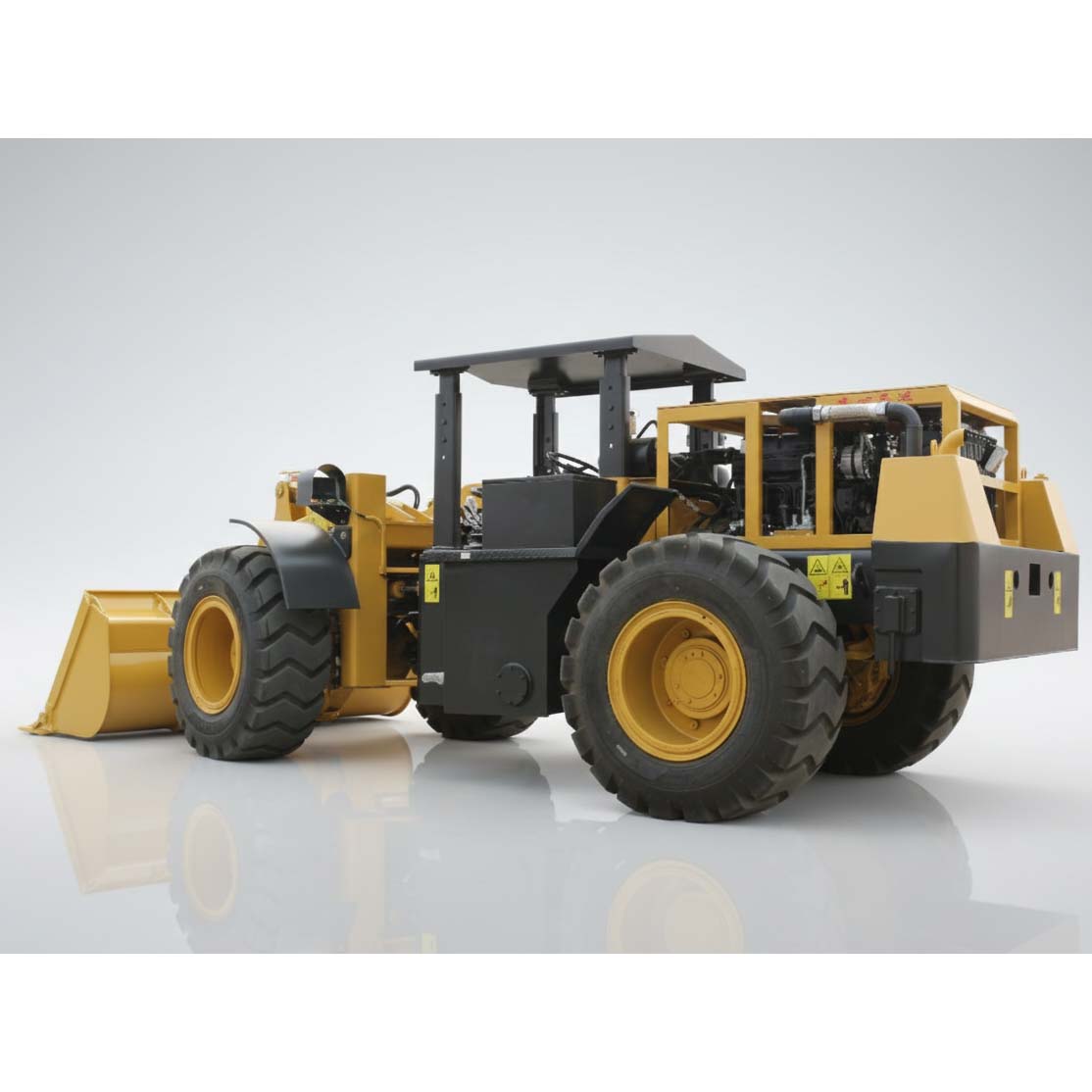

Reliable 81kw YTO Engine Wheel Loader for Heavy Duty Tasks
