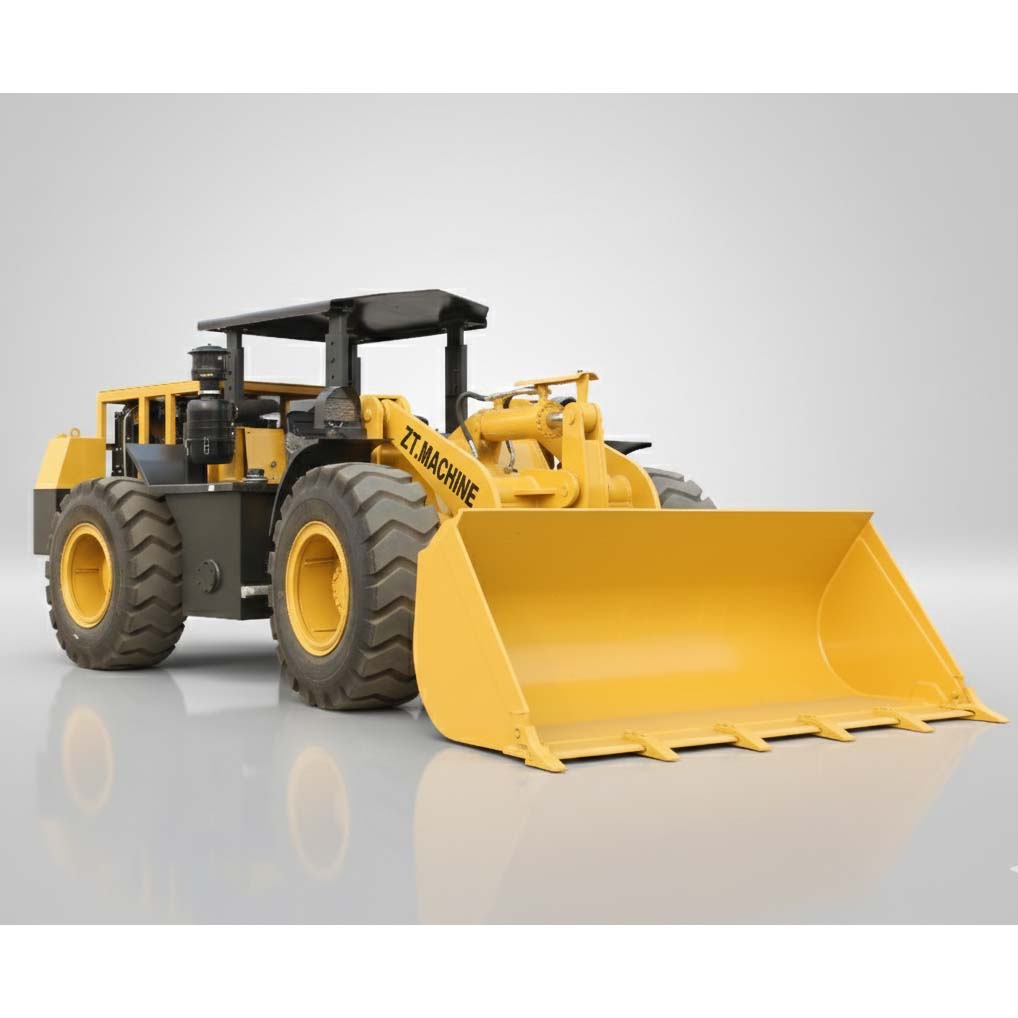

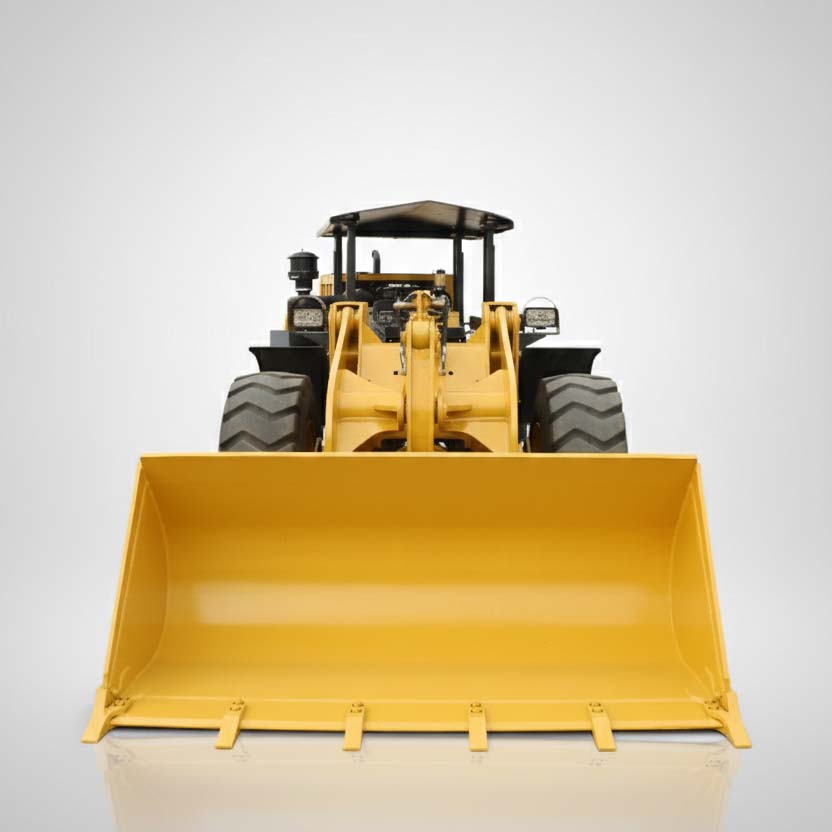

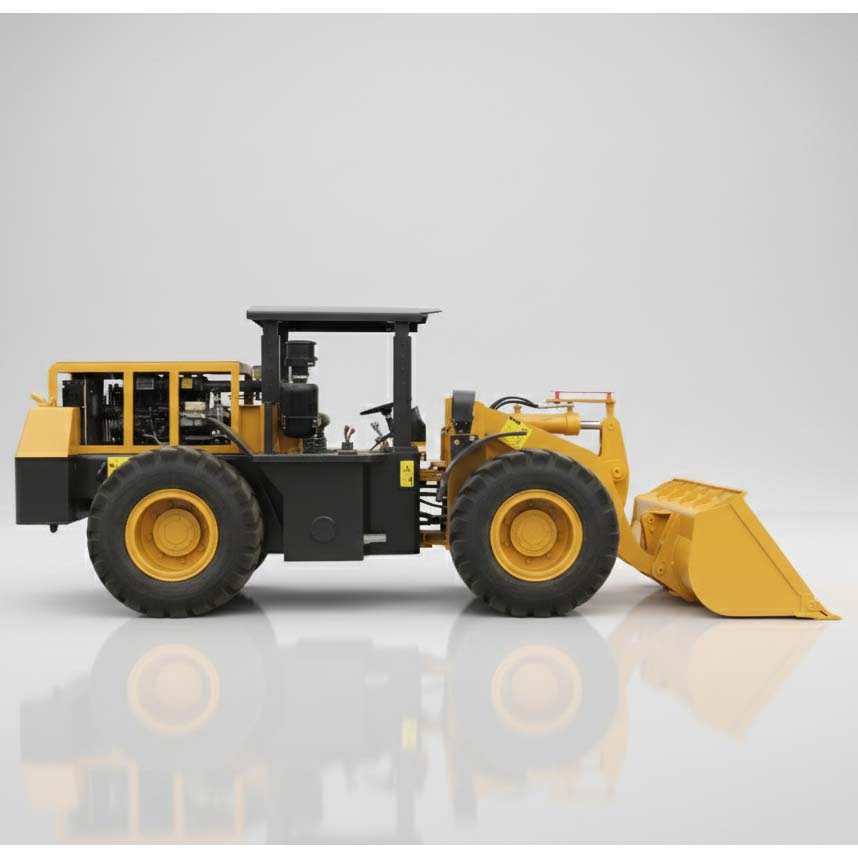

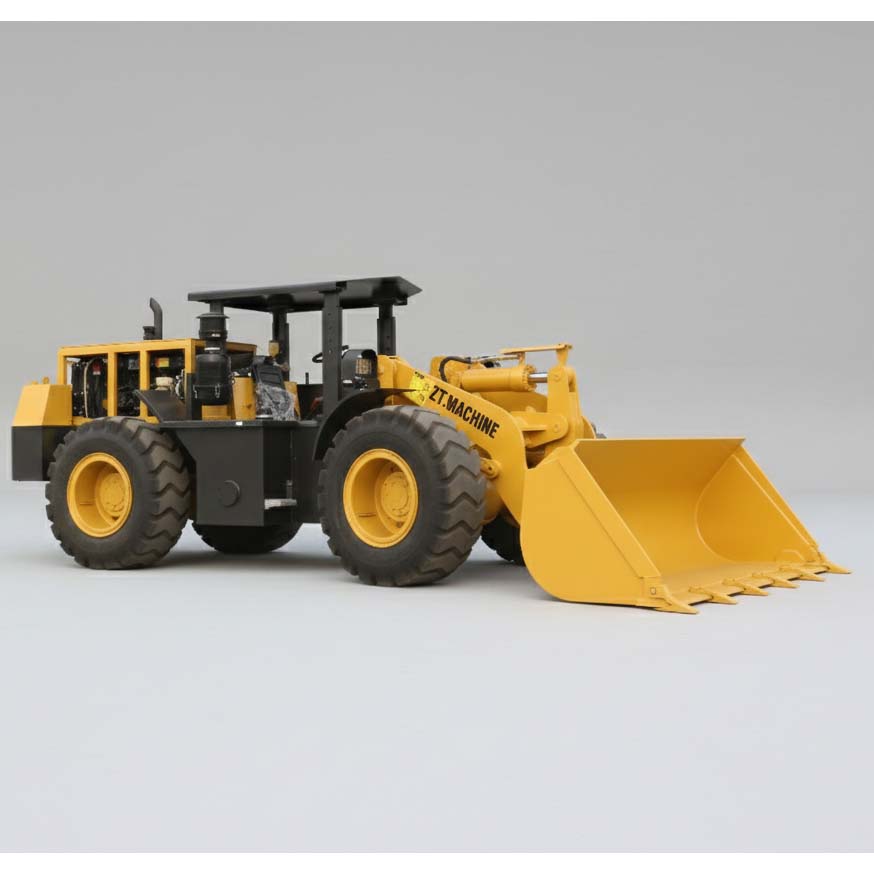

Compact 2t Hydraulic Diesel Mini Loader for Versatile Tasks

Powerful Performance: Equipped with a high-power 81KW engine and a breakout force of ≥45 KN to handle heavy-duty tasks with ease.
High Efficiency: Features a 2-ton rated load capacity and a 0.9 m³ bucket, with a rapid total cycle time of ≤9 seconds.
Flexible Maneuverability: Full hydraulic articulated steering with a ≥35° angle ensures agile operation in confined spaces.
Safety & Reliability: Advanced disc/dry service brakes combined with an air cut-off parking brake for maximum operational safety.
Fast Transit: Reaches speeds up to 23 km/h and utilizes 16/70-20 large-sized tires for stable and quick site-to-site movement.

Contact Now E-Mail Telephone WhatsApp

Product Details

ZT929KS Value Champion

The 2-Ton Class Powerhouse!

A Game-Changer in the 2-Ton Segment

The ZT929KS dominates the 2-ton loader category with exceptional performance, perfect balance, and outstanding value. Whether for rental fleets or owner-operators, it's your shortcut to faster returns.

⚡

Segment-Leading Performance

81kW Power + 45kN Breakout Force

The ZT929KS dominates with 81kW power + 45kN breakout force (vs. typical 60-70kW), chewing through hard materials easily.

81kW

Engine Power

45kN

Breakout Force

Performance Advantages:

20-30% more power than typical 2-ton competitors
45kN breakout force handles hard materials effortlessly
Faster cycle times with increased productivity
Reduced fuel consumption per ton moved
Superior performance in demanding applications

⚖️

Perfect Balance

5.88 Ton "Golden Weight"

At 5.88 tons, it's steadier than light models, nimbler than large ones – the "golden weight" for optimal performance.

5.88T

Operating Weight

Golden

Weight Balance

Balance Advantages:

Steadier than lighter competitors (4-5 ton range)
More nimble than heavier models (7-8 ton range)
Optimal weight-to-power ratio for efficiency
Enhanced stability during lifting operations
Better traction without excessive ground pressure

💰

Outstanding Economics

Friendly Price + Low Upkeep + High Resale

More performance at a friendly price, plus low upkeep and high resale value deliver exceptional return on investment.

Low

Upkeep Costs

High

Resale Value

Economic Advantages:

Competitive purchase price with superior performance
Low maintenance and operational costs
High resale value due to proven reliability
Reduced total cost of ownership
Faster return on investment for businesses

Compact 2t Hydraulic Diesel Mini Loader for Versatile Tasks

Product Parameters

I. Basic Parameters
Item	Specification
Product Model	ZT929KS
Operating Weight (kg)	5880±50
Rated Load Capacity (t)	2±0.1
Bucket Capacity (m³)	0.9±0.09
Length×Width×Height (mm)	5600×2000×1950 (±50/±20/±50)
II. Dimension Parameters
Item	Specification
Wheelbase (mm)	2450 (±10)
Track Width (mm)	1450 (±10)
Minimum Ground Clearance (mm)	310 (±10)
Maximum Dump Height (mm)	1700 (±10)
Minimum Dump Reach (mm)	950 (±10)
Min. Turning Radius (Inside Tires) (mm)	3250±50
Min. Turning Radius (Outside Bucket) (mm)	5750±50
III. Performance Parameters
Item	Specification
Maximum Breakout Force (KN)	≥45
Tip Load (kg)	4000
Gradeability (%)	30
Maximum Traction Force (KN)	≥40
IV. Travel Speed
Forward (km/h)
1st Gear	0-6
2nd Gear	0-23
3rd Gear	/
4th Gear	/
Reverse (km/h)
1st Gear	0-6
2nd Gear	0-18
V. System Configuration
Item	Specification
Service Brake Type	Disc Brake, Dry Brake
Parking Brake Type	Air Cut-off Brake
Drive Type	Hydraulic Dual Transmission, Power Shift Transmission
Fuel Tank Capacity (L)	≤120
Engine Model	LR4M3Z-22
Rated Power (kW) / Speed (r/min)	81KW/2200
Steering Type	Articulated Frame, Full Hydraulic Steering
Maximum Steering Angle (°)	≥35
Tires	16/70-20
VI. Operation Parameters
Item	Specification
Working Device Action Time (S)	≤9 (2.9-0.8-2.2)
(Lift-Dump-Lower)	≤9 (2.9-0.8-2.2)
Brake Operating Force (KN)	266
Lift and Dump Operating Force (KN)	30
Steering Speed (S)	2.1-2.6
Seat to Canopy Height (mm)	980
Steering Force (KN)	15.5
