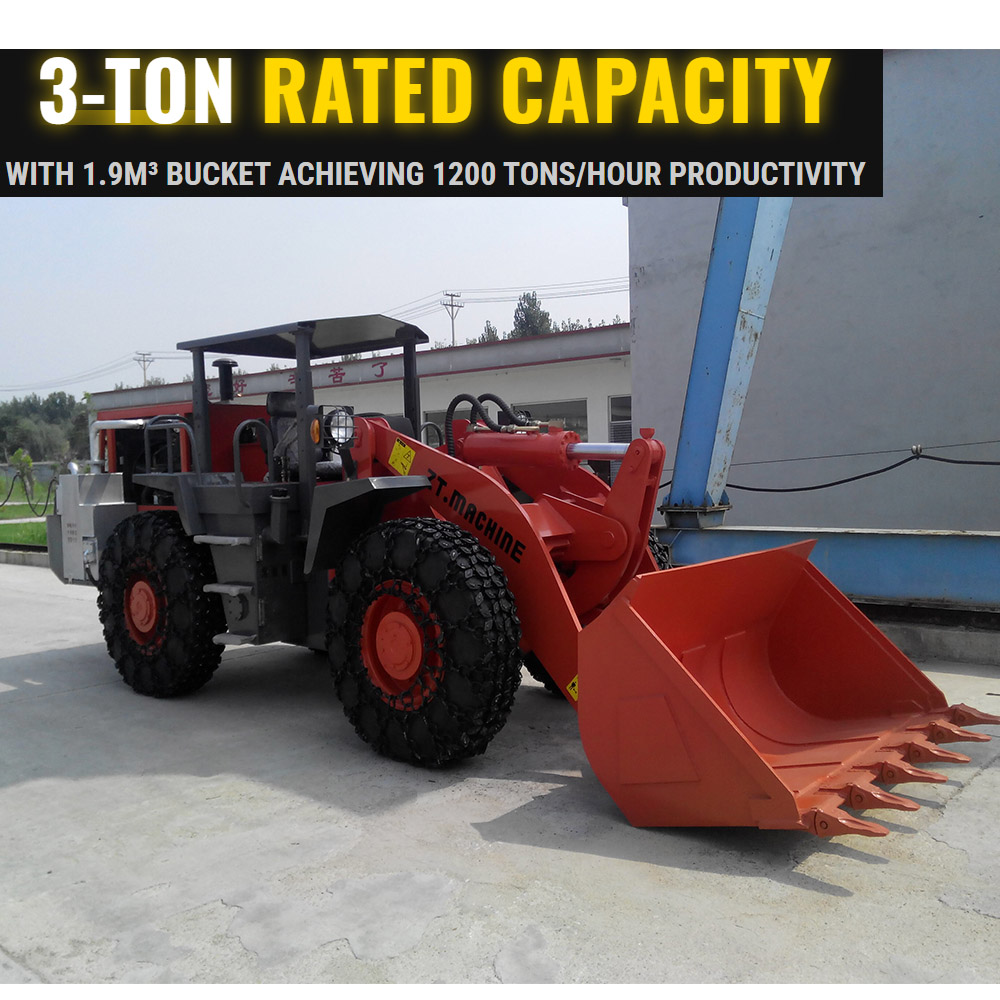

Chinese Certified ZL30(A) Underground Mining Loader
Powerful & Versatile Underground Loader - Built for Demanding Mining Operations
1. Superior Loading Capacity
✔ 3,000kg Rated Load - Handles heavy materials with ease, maximizing productivity
✔ 1.7m³ Large Bucket Capacity - Moves more material per cycle, reducing operational time
2. Unmatched Maneuverability
✔ 40° Steering Angle + 5,555mm Turning Radius - Exceptional agility in tight underground spaces
✔ Compact Dimensions (6.7m x 2.25m) - Fits comfortably in narrow tunnels and confined work areas
3. Heavy-Duty Construction
✔ 9,600kg Robust Frame - Withstands harsh mining conditions and heavy impacts
✔ 380mm High Ground Clearance - Navigates rough terrain and obstacles effortlessly
4. Powerful Performance
✔ 92kW High-Torque Engine - Delivers reliable power for continuous operation
✔ 2-Speed Transmission (0-35km/h) - Optimized for both precision work and efficient transport
5. Operator-Focused Design
✔ 2,850mm Max Dump Height - Perfectly matches standard mining trucks for easy loading
✔ 960mm Extended Dump Reach - Provides greater flexibility in material placement
6. Low-Cost Operation
✔ Fuel-Efficient Engine - Reduces running costs without sacrificing power
✔ Easy Maintenance Access - Minimizes downtime and service expenses
【Underground Mining Powerhouse ZT935KS: Small but Mighty】
Engineered specifically for mining tunnels！Perfect 2730mm unloading height for standard mine trucks, 92kW brute force for tough materials, and ultra-narrow 2440mm width for tight tunnels！
Winter-proof: Electric start system works flawlessly in freezing temperatures！Full safety certifications for underground peace of mind～
Four Core Strengths:
✅ 2730mm unload height + 930mm precise dumping —— Loading efficiency that rocks！
✅ Rear power unit + 4WD —— Stable on uneven surfaces！
✅ 2550mm compact height + 40° steering —— Navigates low-ceiling mines with ease！
✅ 6000kg tipping capacity —— Heavy lifting made easy！
Drive System: 4WD + wet disc brakes for superior traction！
Work Cycle: ≤12 seconds —— Faster than your food delivery！
Responsive hydraulics for precise bucket control；Built tough with safety-certified components —— This "underground powerhouse" is born for extreme mining！
Product Parameters
Rated load capacity (kg) | 3000 | Bucket width (mm) | 2440 |
Bucket capacity (m3) | 1.9 | Wheelbase (mm) | 1800 |
Unloading height (mm) | 2730 | Wheelbase (mm) | 2615 |
Unloading distance (mm) | 930 | Work quality (kg) | 9700 |
Tipping load (kg) | 6000 | Minimum ground clearance (mm) | 380 |
Running speed: (km/h) | go ahead | 10 in first gear; 35 in second gear | |
Back | 6 in first gear; 10 in second gear | ||
Maximum traction force (KN) | 70 | Breakout force (KN) | 120 |
Maximum grade(%) | 25 | steering method | Articulated steering |
Passing capacity outer radius (mm) | 5550 | Passing capacity inner radius (mm) | 3750 |
Maximum steering angle of vehicle body (°) | 40 | ||
Overall dimensions (mm) | long | 5880 | |
Width | 2440 | ||
high | 2550 | ||
Drive mode | four-wheel drive | Working device action time (s) | ≤12 |
Start mode | electric start | Diesel engine location | Rear |
Diesel engine model | Luotuo 6108 | Diesel engine power | 92Kw |
Braking form: | Braking method | wet brake | |
Hand brake | Central wet brake | ||
Dumping method | Unloading | ||
Front and rear drive axle | Shandong Yunyu | ||
tire | 17.5-25 | ||
