Dual-Function Efficiency

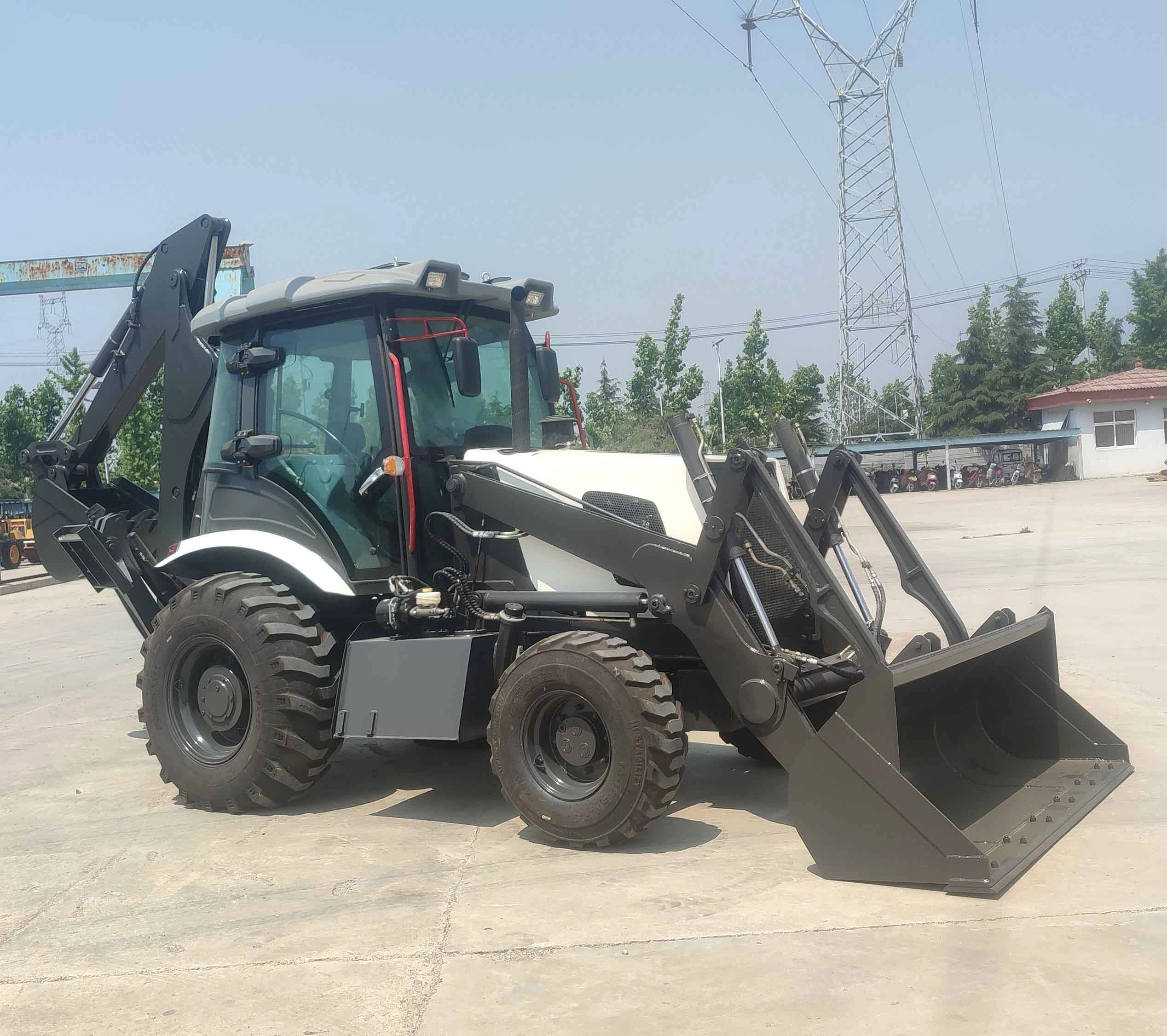

Integrates 0.3m³ backhoe bucket for precision excavation and 1.0m³ loading bucket for bulk material handling. Seamless switching between modes maximizes uptime.
Strong Power: 75kW Cummins engine, >25KN lifting, 50KN digging, 70–75KN traction.
Versatile Use: Dual buckets, 4340mm digging depth, 5481mm radius for multi-tasking.
Easy Maneuvering: 4300mm turning radius, 500mm ground clearance, compact design.
Durable Build: 7840kg weight, 180° bucket rotation, robust components.
Long Operation: 155L hydraulic + 100L diesel tanks for extended work time.
Efficient & Comfortable: 43.5° dump angle, 12V system.
The Ultimate 2-in-1 Earthmoving Solution for Tight Spaces

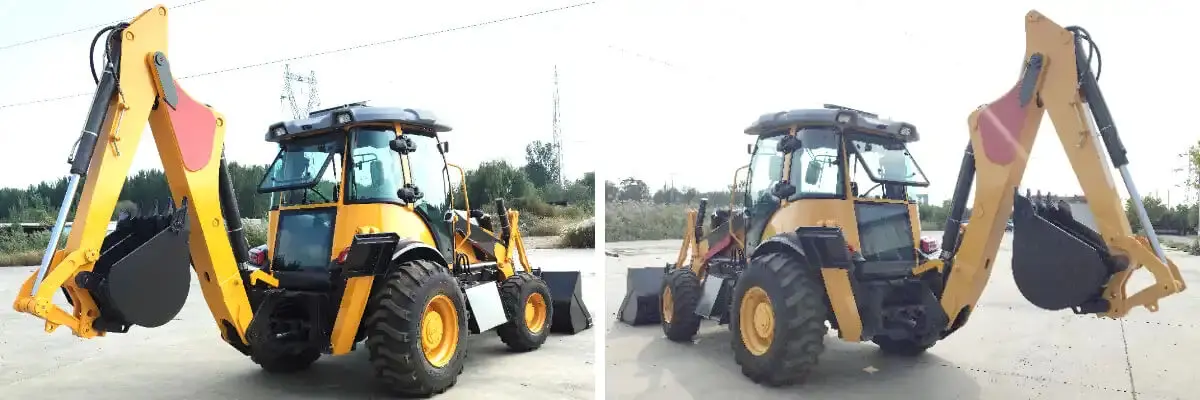

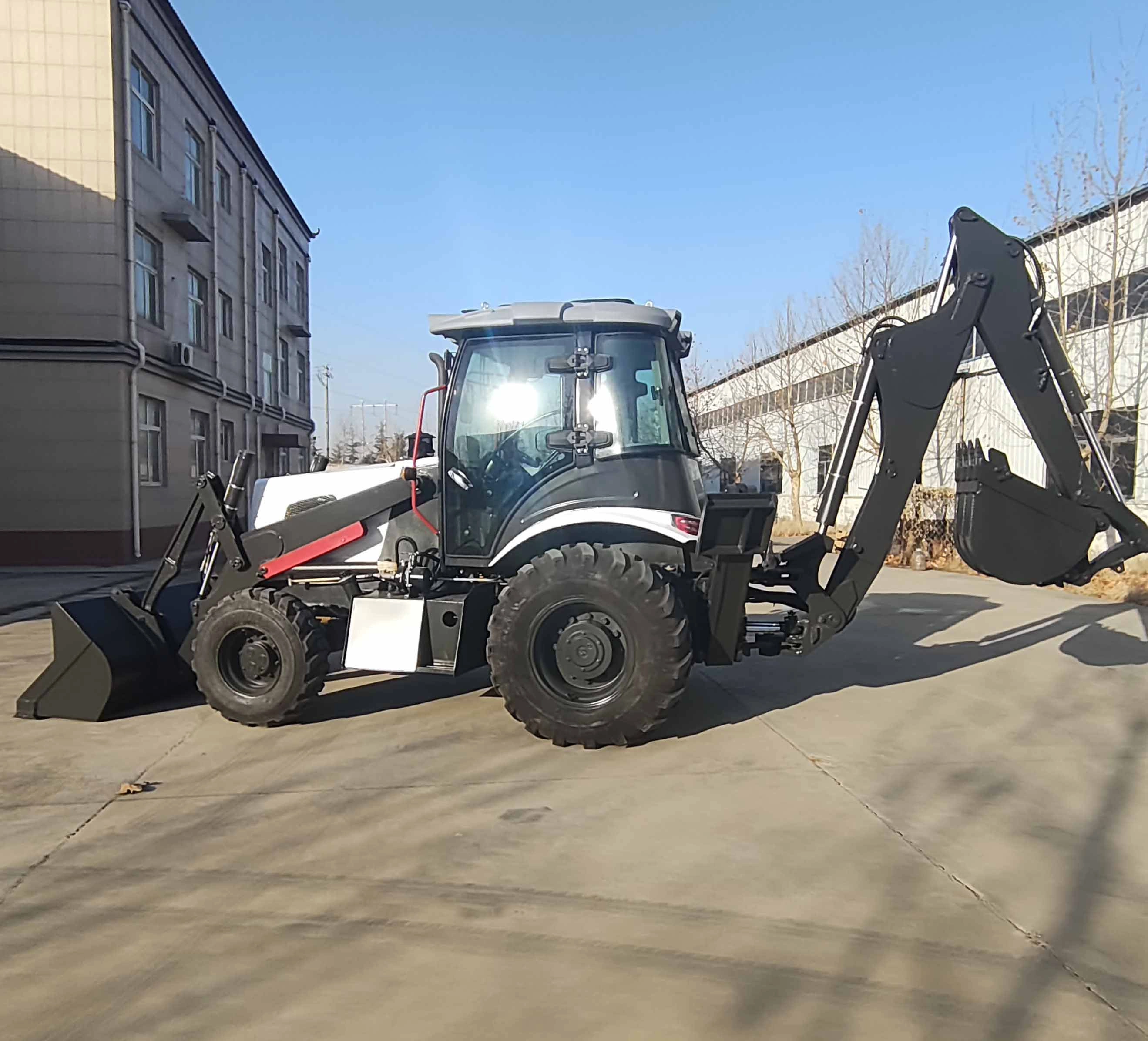

When your project requires both heavy-duty digging and efficient material loading but space is a constraint, the ZTW30-25 Mini Backhoe Loader provides the perfect mechanical balance. It eliminates the need for two separate machines, significantly reducing your logistics and maintenance costs.

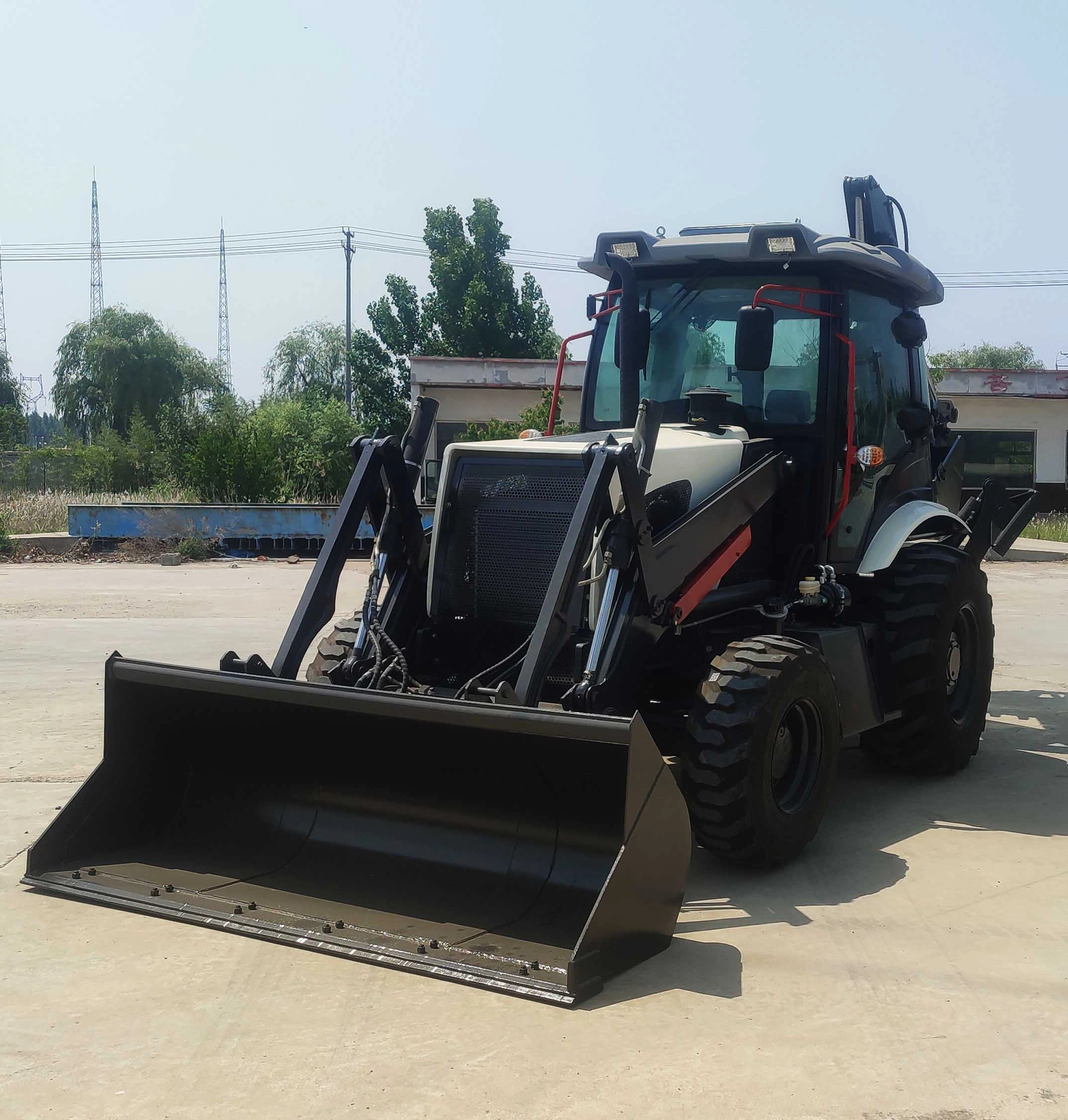

Integrates 0.3m³ backhoe bucket for precision excavation and 1.0m³ loading bucket for bulk material handling. Seamless switching between modes maximizes uptime.
7.1m overall length with 4.3m turning radius, navigates narrow alleys and interior demolition sites where standard loaders cannot operate.
500mm ground clearance + 4WD system, conquers rough terrain, mud and rocky ground effortlessly.

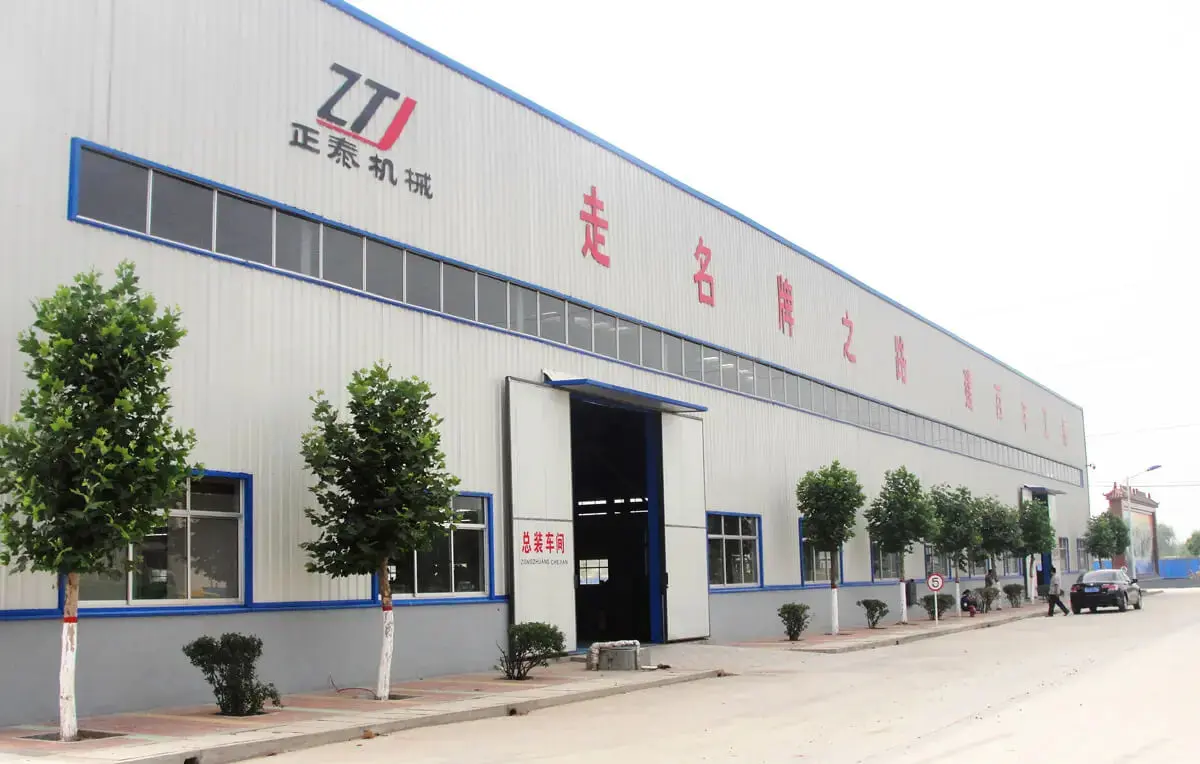

As a professional backhoe loader manufacturer rooted in Taian, Shandong - the heart of China's largest construction machinery industrial cluster, Taian Zhengtai Construction Machinery Co., Ltd. brings 20 years of manufacturing and export expertise to the ZTW30-25 mini backhoe loader. Leveraging the unparalleled industrial chain advantages of Taian, we have access to over 300 local suppliers of high-quality heavy equipment components, from hydraulic pumps and cylinders to engines and structural parts. This centralized supply system enables us to implement strict quality control at every production stage while offering competitive factory price to our global customers. The ZTW30-25 is a testament to our commitment to delivering reliable, cost-effective earthmoving solutions for the global market.
With 20 years of hands-on experience in Chinese construction machinery export, we have optimized every aspect of the ZTW30-25 for international markets. Our engineering team has refined the design based on feedback from contractors in over 30 countries, ensuring it meets the diverse needs of global customers. We have perfected the 40HQ Container loading plan, allowing 2 units of ZTW30-25 backhoe loaders to be loaded per container with standard accessories, maximizing shipping space utilization and reducing your logistics costs by up to 30% compared to competitors. Our professional export team handles all aspects of the process, from documentation and customs clearance to international shipping, ensuring a smooth and hassle-free experience for our customers.

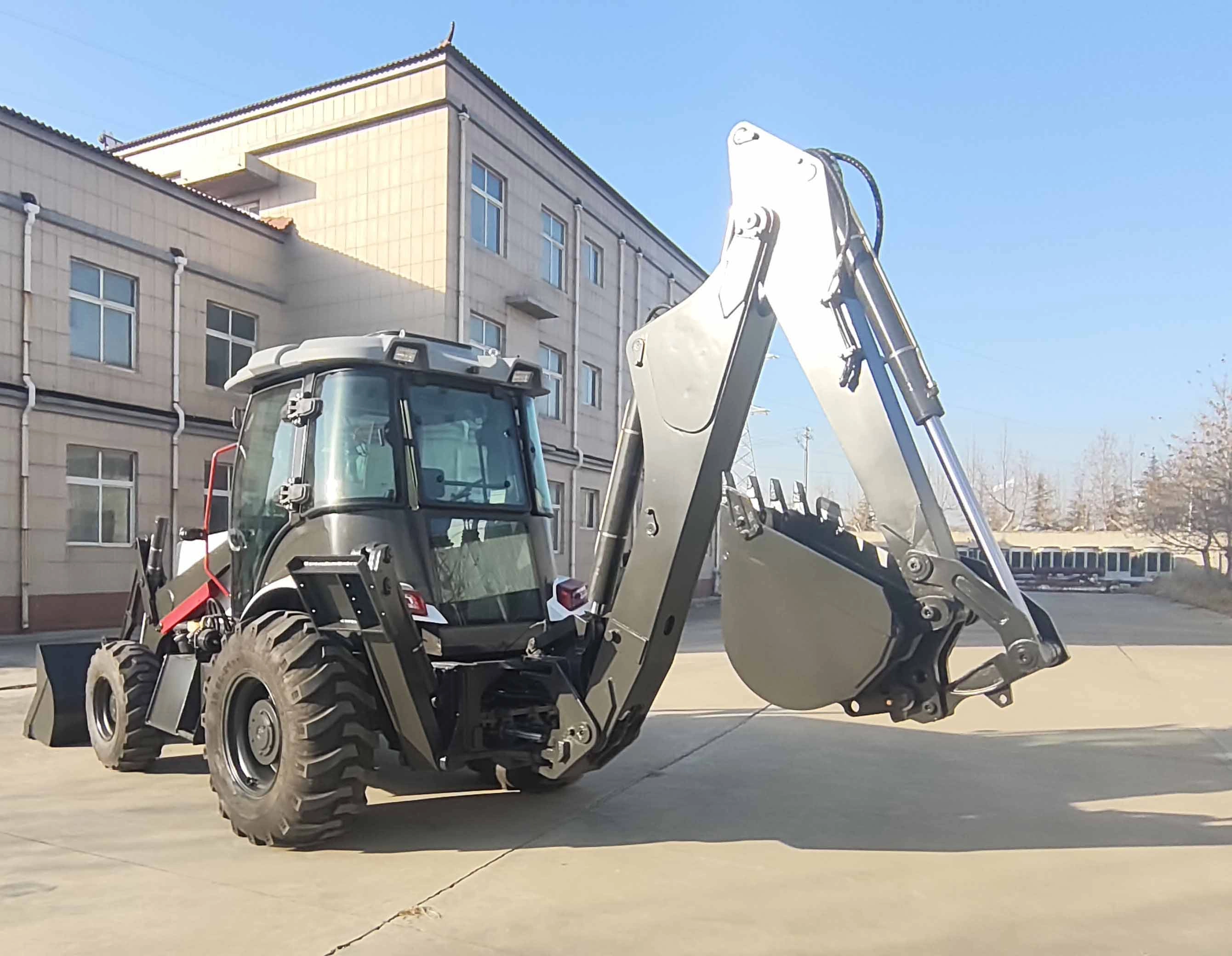

The ZTW30-25 is specifically engineered to solve the most challenging earthmoving problems across diverse working conditions. Whether you're working on urban infrastructure projects, utility trenching, municipal maintenance, agricultural operations or mining sites, this backhoe loader delivers exceptional performance. Its 4.34m maximum digging depth and 5.48m digging reach make it ideal for deep foundation work, while the 180° swing backhoe allows dumping left or right without moving the machine. The 3.74m backhoe dump height and 2.63m front loader dump height ensure easy loading into standard trucks.

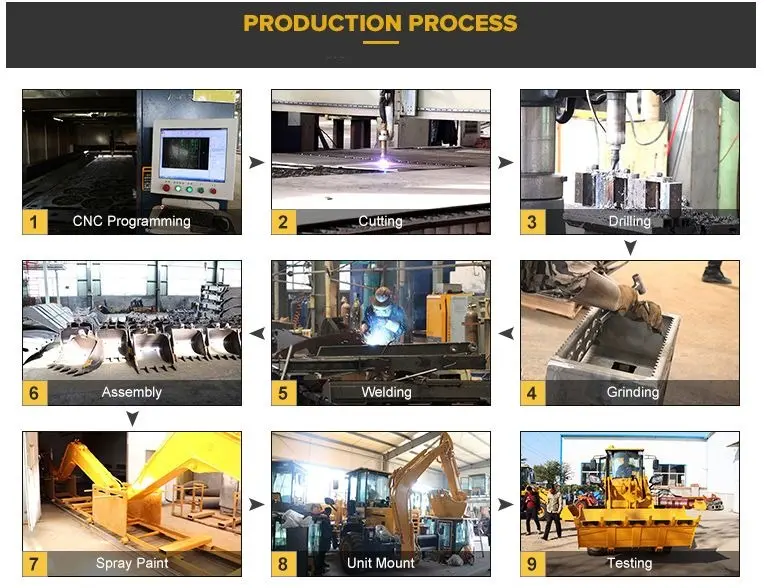

Quality is the cornerstone of our manufacturing philosophy. Every ZTW30-25 mini backhoe loader undergoes a rigorous 12-step quality control process, from raw material inspection to final performance testing. We use only certified heavy equipment components from reputable suppliers, ensuring the reliability and durability of our products in the harshest working conditions. The company has passed ISO9001:2015 Quality Management System certification and holds the official export product quality license issued by the Chinese government. Each machine is tested for 48 hours under full load conditions before shipment, guaranteeing that it meets our strict quality standards and will perform reliably in the field.
| Item | Unit | Parameter |
|---|---|---|
| Basic Parameters | ||
| Backhoe Bucket Capacity | m³ | 0.3 |
| Rated Loading Bucket Capacity | m³ | 1 |
| Rated Lifting Force | kN | >25 |
| Operating Weight | kg | 7840 |
| Backhoe Parameters | ||
| Max. Digging Radius | mm | 5481 |
| Max. Dump Height | mm | 3737 |
| Radius at Max. Dump Height | mm | 1084 |
| Max. Digging Radius at Ground Level | mm | 5105 |
| Digging Bucket Max. Rotating Angle | ° | 180 |
| Max. Digging Depth | mm | 4340 |
| Max. Digging Force | kN | 50±10% |
| Loader Parameters | ||
| Max. Dump Height | mm | 2626 |
| Dump Reach at Max. Dump Height | mm | 726 |
| Bucket Drawback Angle (Transport/Ground) | ° | 43.5/36.5 |
| Dump Angle | ° | 43.5 |
| Digging Depth | mm | 191 |
| Max. Breakout Force | kN | >40 |
| Performance Parameters | ||
| Max. Gradeability | ° | >30 |
| Max. Traction Power | kN | 70-75 |
| Min. Turning Radius | mm | 4300 |
| Dimensions | ||
| Wheelbase | mm | 2320 |
| Front Wheel Track | mm | 1910 |
| Rear Wheel Track | mm | 1820 |
| Min. Ground Clearance | mm | 500 |
| Total Length | mm | 7100 |
| Total Height (Cab) | mm | 2870 |
| Total Width | mm | 2730 |
| Front Bucket Width | mm | 2300 |
| Backhoe Bucket Width | mm | 750 |
| System Capacities | ||
| Hydraulic Tank Capacity | L | 155 |
| Diesel Tank Capacity | L | 100 |
| Power System | ||
| Engine Model | - | Cummins 75kW |
| Tire Options | - | 14-17.5 / 19.5L-24 |
| Electrical System Voltage | V | 12 |

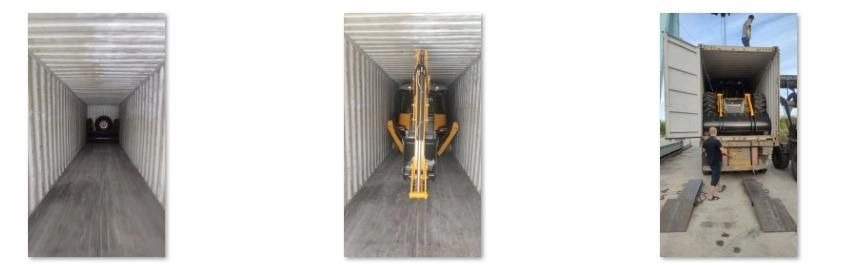

40HQ Container Loading Plan: Standard 40HQ units accommodate 2 complete ZTW30-25 backhoe loaders with optimized space utilization
Transportation Security: Industrial-grade tension restraints securing main assemblies during transit to prevent damage
Component Protection: Auxiliary elements and wearing parts encased in reinforced timber containers
Supply Chain Management: Primary distribution via global marine container transportation networks with door-to-door delivery options
Contact our export team for detailed specifications or a customized quote to your nearest port.
