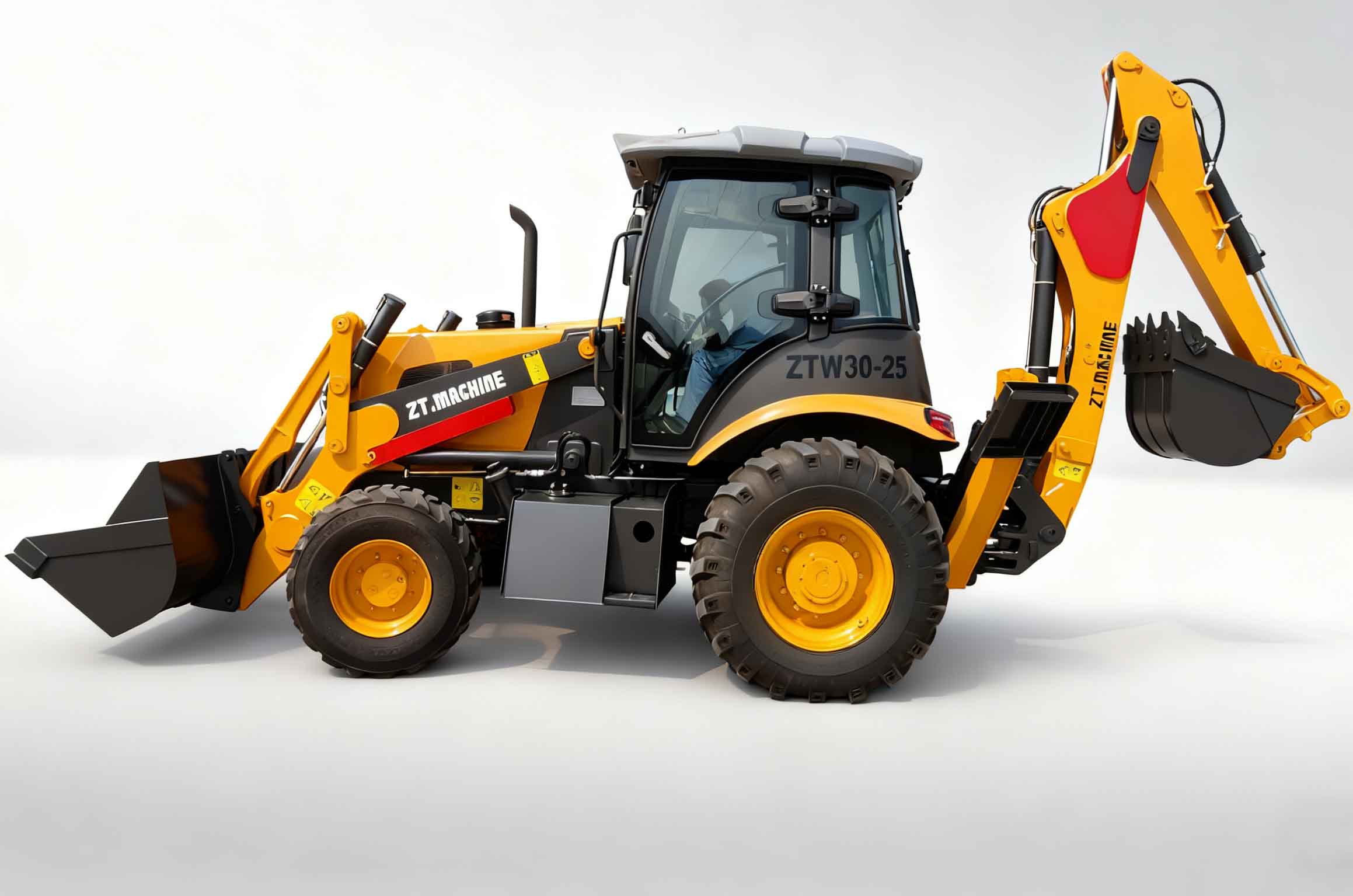

Heavy-Duty Backhoe Loader with Bright LED Work Lights
Strong Power: 75kW Cummins engine, >25KN lifting, 50KN digging, 70–75KN traction.
Versatile Use: Dual buckets, 4340mm digging depth, 5481mm radius for multi-tasking.
Easy Maneuvering: 4300mm turning radius, 500mm ground clearance, compact design.
Durable Build: 7840kg weight, 180° bucket rotation, robust components.
Long Operation: 155L hydraulic + 100L diesel tanks for extended work time.
Efficient & Comfortable: 15.7km/h speed, 43.5° dump angle, 12V system.
【ZTW30-25 Performance Decoded: The "Engineering Beast" in Numbers】
ZTW30-25 from Taian Zhengtai speaks the language of technical supremacy! This "dual-end monster" redefines industry standards with precise metrics.
▍Backhoe Battle Mode
• 5.1m ground reach, 5.48m max coverage
• 50±10kN digging force drives 0.3m³ bucket
• 4.34m digging depth conquers basement projects
▍Loader Power Unleashed
✓ 40+kN breakout force pries toughest materials
✓ 1m³ standard bucket boosts output by 35%
✓ 25+kN lift force handles heavy loads steadily
▍Core Power & Geometry
• 75kW Cummins heart delivers 70-75kN traction
• 180° full swing enables efficient material placement
• 43.5° dump angle + 36.5° rollback for precision control
• 2.63m dump height fits all transport vehicles
▍All-Terrain Specialist
✓ 7.1m length + 2.73m width navigates sites easily
✓ 500mm ground clearance conquers rough terrain
✓ 7.84t weight + 100L fuel + 155L hydraulics ensure endurance
Ready to deploy this "performance beast"? Email ZT Machinery now: woniuniu9527@163.com
| Item | Unit | Parameter | |||
| Backhoe bucket capacity | m3 | 0.3 | |||
| Rated loading bucket capacity | m3 | 1 | |||
| Rated Lifting Force | KN | >25 | |||
| Total operating weight | kg | 7840 | |||
| Backhoe turning angle | Left | º | 90 | ||
| Right | º | 90 | |||
| Backhoe parameter | Max. digging radius | mm | 5481 | ||
| Max. dump height | mm | 3737 | |||
| Radius at the max. dump height | mm | 1084 | |||
| Max. digging radius at ground level | mm | 5437 | |||
| Digging buckets max. rotating angle | º | 163.2 | |||
| Max. digging depth | mm | 4340 | |||
| Max. digging force | KN | 50±10% | |||
| Loading parameter | Max. dump height | mm | 2626 | ||
| Dump reach at max. dump height | mm | 726 | |||
| Bucket drawback angle | Transportation position | º | 43.5 | ||
| Ground position | º | 36.5 | |||
| Dump angle | º | 43.5 | |||
| Digging depth | mm | 191 | |||
| Max. breakout force | KN | >40 | |||
| Max. grade ability | º | >30 | |||
| Max. traction power | KN | 70-75 | |||
| Min. turning radius | mm | 4300 | |||
| Total length | mm | 7080 | |||
| Total height (Cab) | mm | 3420 | |||
| Max. height for transportation | mm | 2710 | |||
| Total Width | mm | 2880 | |||
| Bucket width | mm | 2328 | |||
| Tire | 14-17.5NHS-14PR | 15.5/80-24 | |||
| Voltage | V | 12 | |||
Packing & Delivery
Container 40HC 2 units can be installed
1.Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.
