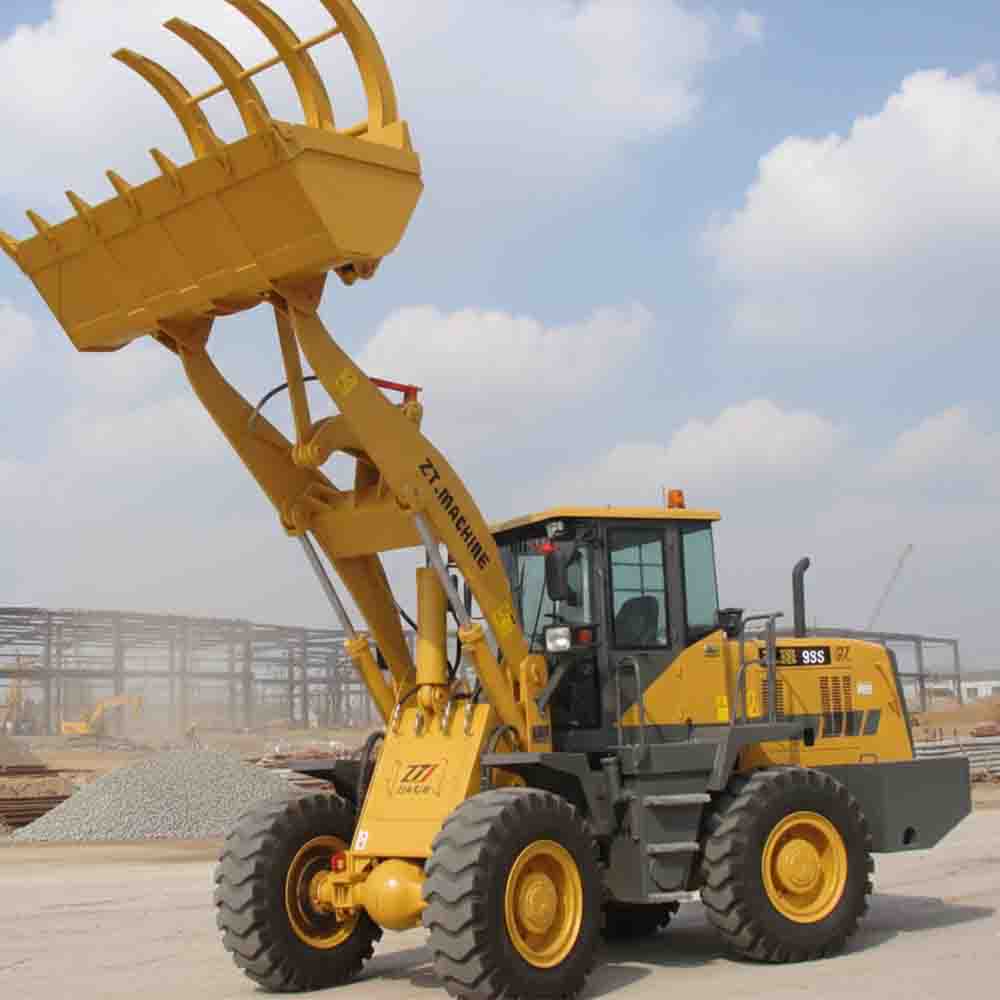

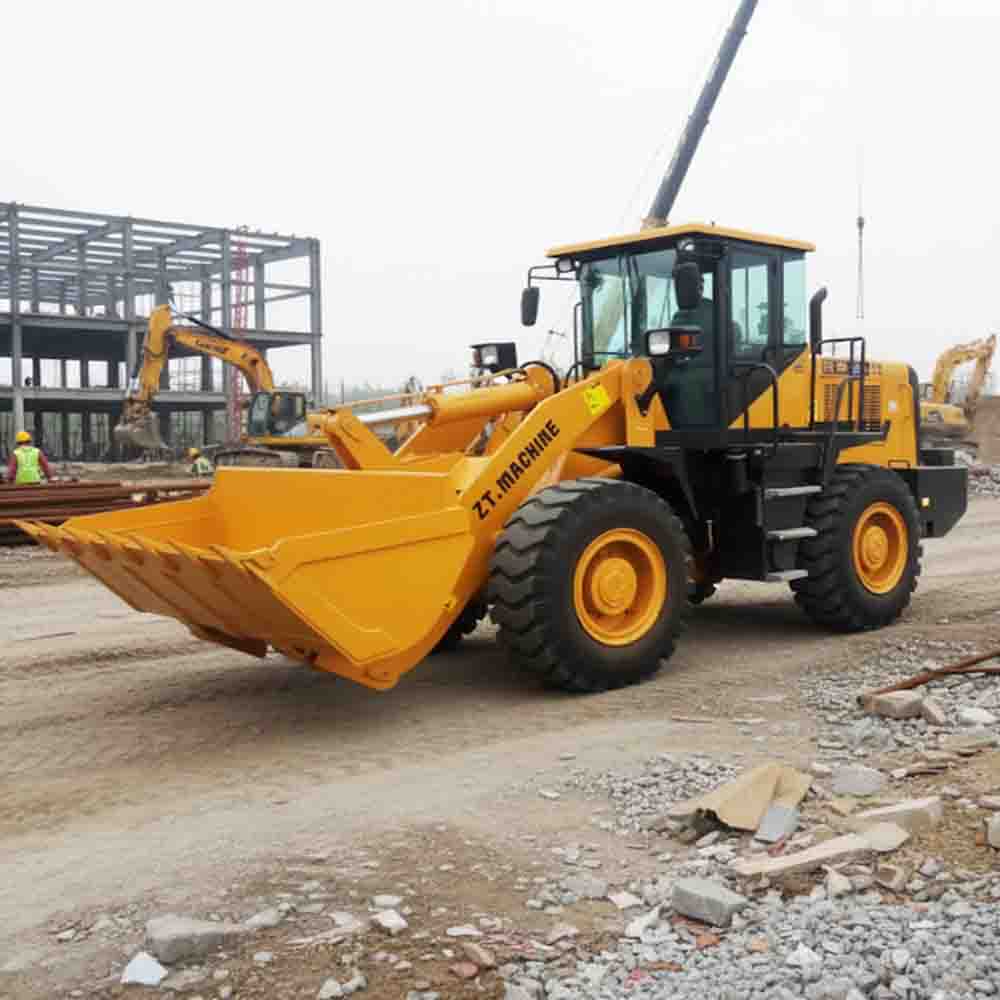

Wheel Loader With 3 Tons Rated Load And 1.7m³ Bucket
High Load Efficiency: 3000 kg capacity with a 1.7 m³ bucket for faster material handling.
Powerful & Fast: 92 kW Cummins engine, 480 N·m torque, with rapid lift and cycle times.
Strong Digging Capability: 110 kN breakout force, 3150 mm dump height, and 45° discharge angle.
Excellent Maneuverability: 35° steering angle and 4800 mm turning radius for tight spaces.
All-Terrain Ready: 30° gradeability and 417 mm ground clearance for rough conditions.
Smart & Safe Operation: Auto bucket leveling, advanced braking, and manual parking brake.
Meet the Economic Efficiency Edition – our 3T loader is basically a money-saving wizard!
Sips fuel like a polite tea drinker, rarely asks for spa days (maintenance), and holds its value like a prized collectible. The smart engine management system delivers beast-mode performance with kitten-like fuel appetite.
Perks alert:
Powerful but light, works out without getting tired
Standard parts swap easier than LEGO pieces
Long service intervals – legitimately lazy-friendly
High productivity, budget-friendly operation
With our warranty and support that never sleep, your machine will work harder than a caffeine-fueled intern. Maximum uptime, maximum returns – now that's what we call a smart investment!
Product Specifications
Description | Specification |
Rated load(kg) | 3000 |
standard bucket capacity（m³） | 1.7 |
Equipment weight（kg) | 9600 |
Max.breakout force（kN） | 110 |
Max.dump height（MM） | 3150 |
Max.dump reach（MM） | 1150 |
Discharging Angle（°） | 45 |
Max.grade ability（°） | 30 |
Automatic leveling ability | Yes |
Lifting time（s) | ≤5.6 |
Total cycle time(lifting, dumping, lowering)（s) | ≤10 |
steering angle（°） | 35 |
Min turning radius（MM） | 4800 |
Wheel base（MM） | 2580 |
Tread（MM） | 1870 |
Min.ground clearance（MM） | 417 |
Overall dimensions (l×w×h)mm（MM） | 7550*2385*3145 |
travel speed（km/h） | |
Forward gear I | 0～6.8 |
II | 0～12 |
III | 0～23 |
IV | 0～35 |
reverse gear I | 0～8.5 |
II | 0～27 |
Engine Model | Cummins 6BT5.9-C125-II |
Type | In line, water cooled, four stroke, dir.inject |
Rated power（kW） | 92 |
Product Details
Delivery Process: Expect one machine per 40GP container. The core unit is left unpacked but firmly fastened. Spare and wear items are protected in wooden or cardboard boxes. Our default shipping method is via container.
