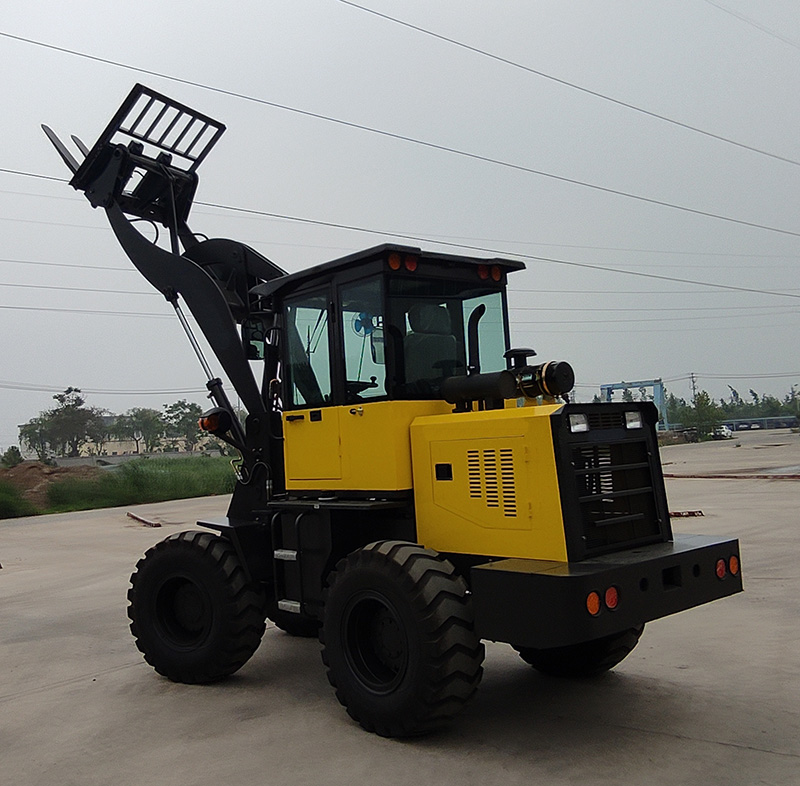

High Capacity Mini Front Loader Price
Heavy Load Capacity – 1500 kg rated load with 0.7 m³ bucket for higher efficiency.
Stable & Durable – 4700 kg weight ensures solid performance in tough jobs.
Efficient Operation – 3210 mm dump height with auto-leveling for faster, cleaner loading.
Flexible Maneuvering – 35° steering and 5060 mm turning radius for tight spaces.
Strong Power – 40 kW Xinchai engine and 35 km/h speed for fast, reliable work.
Good Ground Clearance – 360 mm clearance and compact size for rough terrain.
Ergonomic Cab Design (Inferred), Enhancing Operator Comfort
While the specifications table does not detail the ZT926 Wheel Loader's cab, as modern construction machinery, its design typically prioritizes operator comfort and safety. An ergonomic cab implies spacious interiors, good visibility, intuitive dashboard layouts, and easy-to-operate control levers. Comfortable seating, effective shock absorption systems, and possible climate control features (like air conditioning/heating) can significantly reduce fatigue from long hours of operation, thereby improving operator efficiency and focus. Good visibility ensures operators can clearly see the working area and surroundings, enhancing operational safety. The ZT926's human-centric cab design aims to provide operators with an efficient and comfortable working environment, thereby maximizing the equipment's overall performance.
Product Specifications
Description | Specification |
rated load(kg) | 1500 |
Rated bucket capacity（m³） | 0.7 |
Equipment weight（kg) | 4700 |
Max.dump height（MM） | 3210 |
Max.dump reach（MM） | 880 |
Automatic leveling ability | Y |
steering angle（°） | 35 |
Min turning radius（MM） | 5060 |
Wheel base（MM） | 2250 |
Tread（MM） | 1490 |
Min.ground clearance（MM） | 360 |
Overall dimensions (l×w×h)mm（MM） | 5500×1860×2650 |
travel speed（km/h） | |
Forward gear I | 0～9 |
II | 0～35 |
reverse gear I | 0～9 |
II | 0～35 |
Engine Model | Xinchai498 |
Type | Water injection four-stroke inline |
Rated power（kW） | 40 |
Rated speed（rpm） | 2200 |
The voltage(V) | 12 |
