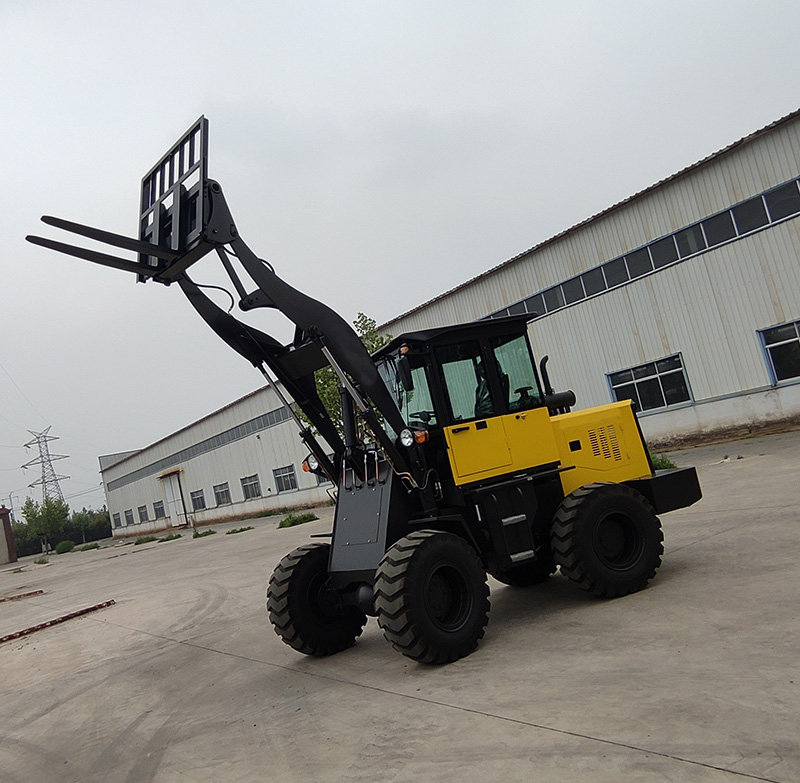

Heavy Duty Articulated Loader For Sale

Heavy Load Capacity – 1500 kg rated load with 0.7 m³ bucket for higher efficiency.

Stable & Durable – 4700 kg weight ensures solid performance in tough jobs.

Efficient Operation – 3210 mm dump height with auto-leveling for faster, cleaner loading.

Flexible Maneuvering – 35° steering and 5060 mm turning radius for tight spaces.

Strong Power – 40 kW Xinchai engine and 35 km/h speed for fast, reliable work.

Good Ground Clearance – 360 mm clearance and compact size for rough terrain.

Contact Now E-Mail Telephone WhatsApp

Product Details

Optimized Wheelbase and Tread for Superior Stability and Traction

The ZT926 Wheel Loader's design fully considers stability and traction, with its optimized wheelbase and tread being key to achieving these performances. A wheelbase of 2250mmprovides the equipment with excellent longitudinal stability, effectively preventing front-to-back tipping when lifting and transporting heavy loads. Concurrently, a tread of 1490mmensures the loader's lateral stability, especially when turning or operating on slopes, maintaining vehicle balance and reducing rollover risk. This precise dimensional design not only enhances operational safety but also ensures excellent traction in various ground conditions. Whether on muddy construction sites, loose sandy terrain, or rough roads, the ZT926 maintains stable grip, providing smooth and efficient operational performance. These engineering details work in concert to make the ZT926 a reliable, efficient, and safe material handling machine, helping your operations proceed smoothly.

Heavy-Duty Articulated Loader For Sale

Product Specifications

Description	Specification
rated load(kg)	1500
Rated bucket capacity（m³）	0.7
Equipment weight（kg)	4700
Max.dump height（MM）	3210
Max.dump reach（MM）	880
Automatic leveling ability	Y
steering angle（°）	35
Min turning radius（MM）	5060
Wheel base（MM）	2250
Tread（MM）	1490
Min.ground clearance（MM）	360
Overall dimensions (l×w×h)mm（MM）	5500×1860×2650
travel speed（km/h）
Forward gear I	0～9
II	0～35
reverse gear I	0～9
II	0～35
Engine Model	Xinchai498
Type	Water injection four-stroke inline
Rated power（kW）	40
Rated speed（rpm）	2200
The voltage(V)	12
