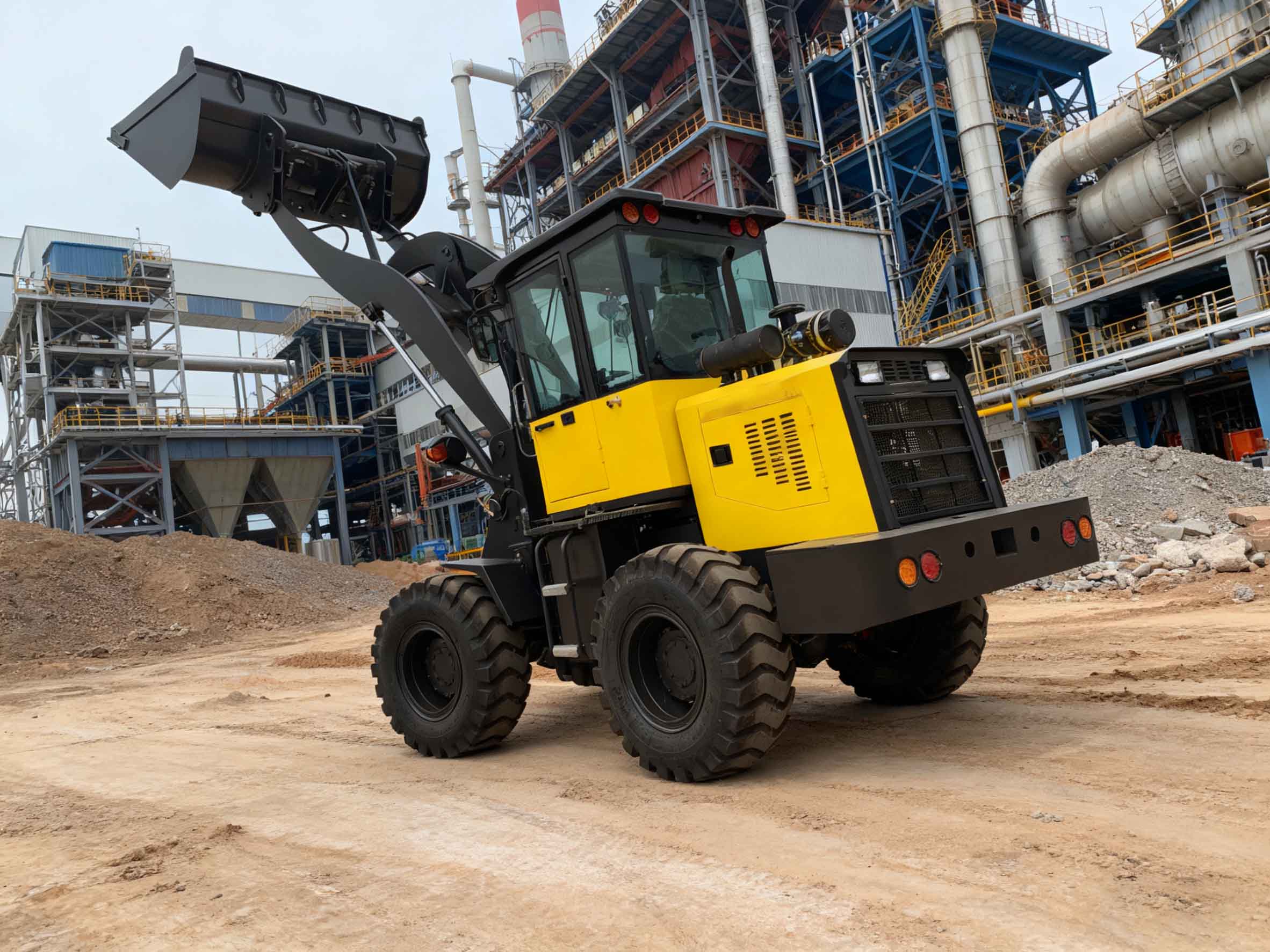

Efficient Hydraulic Steering Loader for Versatile Daily Operations
Heavy Load Capacity – 1500 kg rated load with 0.7 m³ bucket for higher efficiency.
Stable & Durable – 4700 kg weight ensures solid performance in tough jobs.
Efficient Operation – 3210 mm dump height with auto-leveling for faster, cleaner loading.
Flexible Maneuvering – 35° steering and 5060 mm turning radius for tight spaces.
Strong Power – 40 kW Xinchai engine and 35 km/h speed for fast, reliable work.
Good Ground Clearance – 360 mm clearance and compact size for rough terrain.
Key Advantages
The ZT926 Wheel Loader is engineered to be your steadfast "iron partner" in demanding work environments. With its perfect balance of 4700kg weight and 2250mm wheelbase, this loader delivers rock-solid stability even when handling full 1500kg loads. The optimized weight distribution ensures safety during heavy lifting, while the consistent 40kW power from the Xinchai 498 system maintains uninterrupted performance.
The 880mm dump reach protects your valuable receiving vehicles, and the loader's marathon endurance makes it reliable for long-hour operations. When you need extended shifts or intensive material handling, the ZT926 proves to be the perfect balance of strength and stability - your unwavering partner in productivity.
Product Specifications
| Description | Specification |
| rated load(kg) | 1500 |
| Rated bucket capacity(m³) | 0.7 |
| operating weight(kg) | 4700 |
| Max.dump height(MM) | 3210 |
| Max.dump reach(MM) | 880 |
| steering angle(°) | 35 |
| Min turning radius(MM) | 5060 |
| Wheel base(MM) | 2250 |
| Tread(MM) | 1490 |
| Min.ground clearance(MM) | 360 |
| Overall dimensions (l×w×h)mm(MM) | 5500×1860×2650 |
| travel speed(km/h) | |
| Forward gear I | 0~9 |
| II | 0~35 |
| reverse gear I | 0~9 |
| II | 0~35 |
| Engine Model | Xinchai498/Yunnei 4BL105 |
| Type | Water injection four-stroke inline |
| Rated power(kW) | 40/76 |
| Rated speed(rpm) | 2200 |
| The voltage(V) | 12 |
